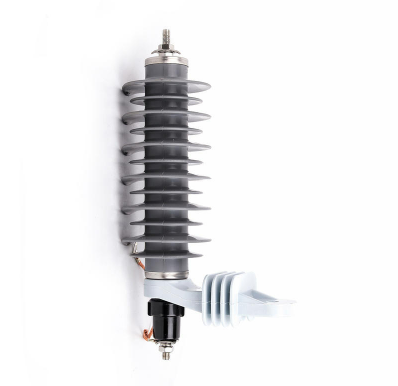

Polymeric Metal Oxide Arrester for Protect Electrical Equipment

5 0 Reviews
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button








Polymeric Metal Oxide Arrester for Protect Electrical Equipment

Zinc oxide surge arrester is a lightning protection device with superior protection performance, light weight, pollution resistance and stable performance. It mainly uses the good non-linear volt-ampere characteristics of zinc oxide to make the current flowing through the surge arrester at normal working voltage very small (microamp or milliampere level); when the overvoltage acts, the resistance drops sharply, venting the overvoltage Energy to achieve the effect of protection. The difference between this kind of lightning arrester and the traditional lightning arrester is that it has no discharge gap, and uses the non-linear characteristics of zinc oxide to discharge and break.

Surge Arrester Series

General

1. Ratings:0.22~500KV (porcelain),0.22~220KV(composite)

2. Application:for protection of power transmission & distribution system from over-voltage.

3. Features:


1)Silicone polymer housing composite metal oxide surge arrester and porcelain housing metal Oxide surge arresters are available.

2)Easy installation and maintenance.

3)Good sealing capability to ensure reliable operation.

4)Protection and reliability of the surge arrester have been greatly enhanced.

Working Condition

1. Ambient air temperature:-40℃ ~+40℃ ;

2. Altitude:<=2000m;

3. Frequency: 48Hz~62Hz;

4. Power frequency voltage applied between terminals of surge arrester must not exceed continuous operating voltage of surge arrerter;

5. Earthquake intensity is less than 8 degree;

6. Max. Wind speed is 35m/s.

Main Techical Parameter

1. Metal oxide Polymer Housing (Gapless) type Surge Arrester for A.C System(5kA series)


Model

Rated voltage (kVr.m.s)

Continuous operating Voltage(KVr.m.s)

Lightening impulse residual voltage under nominal discharge current (<=KVp)

Line discharge class

Creepage distance(mm)

2ms square wave impulse current withstands(A)

4/10μhigh current impulse Withstands(KAp)

YH-5W-6

6

5.1

18


320

150

65

YH-5W-9

9

7.65

27


430

150

65

YH-5W-12

12

10.2

36


430

150

65

YH-5W-15

15

12.75

45


530

150

65

YH-5W-18

18

15.3

54


530

150

65

YH-5W-21

21

16.8

63


640

150

65

YH-5W-24

24

19.2

72


640

150

65

YH-5W-27

27

21.6

81


740

150

65

YH-5W-30

30

24

90


890

150

65

YH-5W-33

33

26.4

99


890

150

65

YH-5W-36

36

28.8

108


1115

150

65

2. Metal Oxide Polymer Housing (Gapless) type Surge Arrester for A.C. System (10KA series)

Model

Rated voltage (kVr.m.s)

Continuous operating Voltage(KVr.m.s)

Lightening impulse residual voltage under nominal discharge current (<=KVp)

Line discharge class

Creepage distance(mm)

2ms square wave impulse current withstands(A)

4/10μhigh current impulse Withstands(KAp)

YH-10W-6

6

5.1

18

1

320

250

100

YH-10W-9

9

7.65

27

1

430

250

100

YH-10W-12

12

10.2

36

1

430

250

100

YH-10W-15

15

12.75

45

1

530

250

100

YH-10W-18

18

15.3

54

1

530

250

100

YH-10W-21

21

16.8

63

1

640

250

100

YH-10W-24

24

19.2

72

1

740

250

100

YH-10W-27

27

21.6

81

1

740

250

100

YH-10W-30

30

24

90

1

890

250

100

YH-10W-33

33

26.4

99

1

890

250

100

YH-10W-36

36

28.8

108

1

1115

250

100

YH-10W-42

42

33.6

126

2

1260

400

100

YH-10W-48

48

39

139

2

1260

400

100

YH-10W-54

54

42

160

2

1260

400

100

YH-10W-60

60

48

178

2

1465

400

100

YH-10W-66

66

52.8

196

2

1465

400

100

YH-10W-72

72

57

214

2

2255

400

100

YH-10W-84

84

67.2

244

2

2255

400

100

YH-10W-90

90

72.5

249

2

2255

400

100

YH-10W-96

96

75

265

3

3555

800

100

YH-10W-108

108

84

281

3

3555

800

100

YH-10W-120

120

96

300

3

4153

800

100

YH-10W-150

150

120

416

3

5040

800

100

YH-10W-200

200

156

520

3

7110

800

100

3. Metal Oxide Polymer Housing (Gapless) type Surge Arrester for A.C. System (20KA series)


Model

Rated voltage (kVr.m.s)

Continuous operating Voltage(KVr.m.s)

Lightening impulse residual voltage under nominal discharge current (<=KVp)

Line discharge class

Creepage distance(mm)

2ms square wave impulse current withstands(A)

4/10μhigh current impulse Withstands(KAp)

YH-20W-108

108

84

281

3

3555

800

100

YH-20W-120

120

96

300

3

4153

800

100

YH-20W-150

150

120

416

3

5040

800

100

YH-20W-200

200

156

520

3

7110

800

100

4. Metal Oxide Porcelain Housing (Gapless) type Surge Arrester for A.C. System (5KA series)



Model

Rated voltage (kVr.m.s)

Continuous operating Voltage(KVr.m.s)

Lightening impulse residual voltage under nominal discharge current (<=KVp)

Line discharge class

Creepage distance(mm)

2ms square wave impulse current withstands(A)

4/10μhigh current impulse Withstands(KAp)

Y5W-6

6

5.1

18


280

150

65

Y5W-9

9

7.65

27


320

150

65

Y5W-12

12

10.2

36


320

150

65

Y5W-15

15

12.75

45


450

150

65

Y5W-18

18

15.3

54


450

150

65

Y5W-21

21

16.8

63


450

150

65

Y5W-24

24

19.2

72


510

150

65

Y5W-27

27

21.6

81


510

150

65

Y5W-30

30

24

90


890

150

65

Y5W-33

33

26.4

99


890

150

65

Y5W-36

36

28.8

108


890

150

65

5. Metal Oxide Polymer Housing (Gapless) type Surge Arrester for A.C. System (10KA series)


Model

Rated voltage (kVr.m.s)

Continuous operating Voltage(KVr.m.s)

Lightening impulse residual voltage under nominal discharge current (<=KVp)

Line discharge class

Creepage distance(mm)

2ms square wave impulse current withstands(A)

4/10μhigh current impulse Withstands(KAp)

Y10W-6

6

5.1

18

1

280

250

100

Y10W-9

9

7.65

27

1

320

250

100

Y10W-12

12

10.2

36

1

320

250

100

Y10W-15

15

12.75

45

1

450

250

100

Y10W-18

18

15.3

54

1

450

250

100

Y10W-21

21

16.8

63

1

450

250

100

Y10W-24

24

19.2

72

1

510

250

100

Y10W-27

27

21.6

81

1

510

250

100

Y10W-30

30

24

90

1

890

250

100

Y10W-33

33

26.4

99

1

890

250

100

Y10W-36

36

28.8

108

1

890

250

100

Y10W-42

42

33.6

126

2

1256

400

100

Y10W-48

48

39

139

2

1256

400

100

Y10W-54

54

42

160

2

1256

400

100

Y10W-60

60

48

178

2

1440

400

100

Y10W-66

66

52.8

196

2

1440

400

100

Y10W-72

72

57

214

2

1440

400

100

Y10W-84

84

67.2

244

2

2200

400

100

Y10W-90

90

72.5

249

2

2200

400

100

Y10W-96

96

75

265

3

3350

800

100

Y10W-108

108

84

281

3

3350

800

100

Y10W-120

120

96

300

3

3948

800

100

Y10W-150

150

120

416

3

4400

800

100

Y10W-200

200

156

520

3

6700

800

100

6. Metal Oxide Polymer Housing (Gapless) type Surge Arrester for A.C. System (20KA series)

Model

Rated voltage (kVr.m.s)

Continuous operating Voltage(KVr.m.s)

Lightening impulse residual voltage under nominal discharge current (<=KVp)

Line discharge class

Creepage distance(mm)

2ms square wave impulse current withstands(A)

4/10μhigh current impulse Withstands(KAp)

Y20W-108

108

84

281

3

3555

800

100

Y20W-120

120

96

300

3

4106

800

100

Y20W-150

150

120

416

3

4400

800

100

Y20W-200

200

156

520

3

6700

800

100

Y20W-444

444

324

1106

4

17052

2000

100
