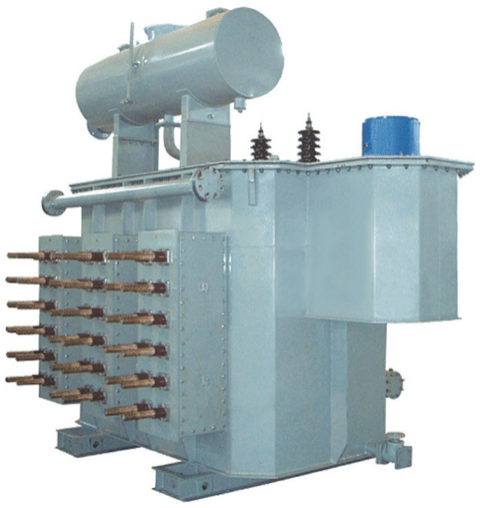

FURNACE TRANSFORMER
Due to a serials of innovations over material,technology, and structure, the furnace transformer features small size, light weight, high efficiency, low loss, low noise, reliable operation and large overloading capacity, etc. the transformer generates good economic returns for it could reduce significantly the power grid loss and bring down substantially the long term operational charges. The transformer is designed to apply mostly in metallurgy industry for smelting quality alloy steel and iron alloy and in chemical industry for processing yellow phosphorous,calcium carbide and synthetic resin, etc.
The model of the electric furnace transformer is expressed as follows:
Meaning: H-steel smelting arc furnace, HJ-ladle fining furnace, HZ-electroslag furnace, HC-calcium carbide furnace, HK-blast
furnace, HG-industrial furnace
Number of phase: D-single phases, S-three phases
Type of cooling devices: oil immersed self-coiling- air cooling F, water cooling S
Way of oil circulation: natural circulation, forced oil circulation P
Way of voltage regulation: non-excitation voltage regulation, load ratio voltage regulation
Built-in accessories: flux leakage changing group-,built in reactor K
Rated capacity: kVA
Voltage class: KV
Non-excitation-tap-changing Arc Furnace Transformer Technical Data
Main Technical Data For Arc Furnace Transformer With On-load-tap-changing
Main Technical Data Of 10kV Arc Furnace Transformer For Steel Making
Main Technical Data Of 35kV Arc Furnace Transformer For Steel Making
