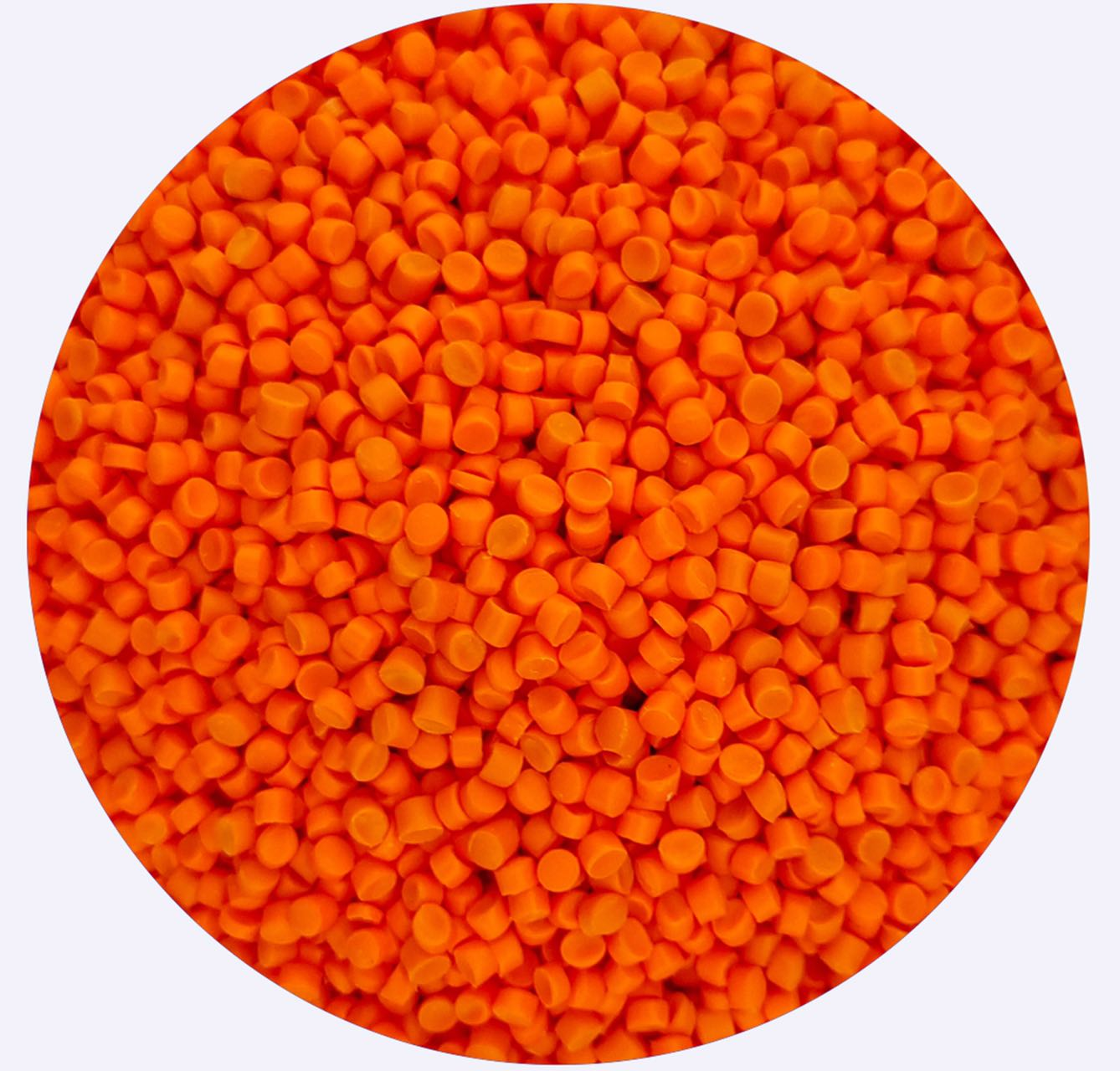

Irradiation Crosslinkable LSZH Insulation Compound for Photovotaic Cable
This material is used for halogen-free flame retardant(irradiation crosslinkable) wire and cable insulation material. It is made of high quality resin, flame retardant, antioxidant agent and cross-linking agent by mixing granulation. None-halogen property makes the materials non-toxic when burning; it has excellent flame retardancy, good physical and mechanical properties and processing performance; Heat resistance level is 125℃, can pass the VD-1 combustion test.
Standard: EN50618 & TUV1169
Application: Photovoltaic system/solar panel; Wire and cable; Control wire and cable; Railway wire and cable
Property
Item | Unit | |||
Density@23℃ | g/cm³ | ASTM D792 | ≤ 1.28 | |
Tensile strength | MPa | IEC 60811- 1- 1 | ≥ 14.2 | |
Elongation at break | % | ≥ 190 | ||
After aging @150℃, 168h | Tensile strength retention | % | IEC 60811- 1-2 | 115 |
Breaking elongation retention | % | 88 | ||
After aging @185℃, 100h | Tensile strength variation | % | IEC 60811- 1-2 | 115 |
Breaking elongation variation | % | 80 | ||
Hot prolongation @200 ℃ , 0.2MPa, 15min | Elongation under the load | % | IEC 60811-2- 1 | 20 |
% | 4 | |||
Low temperature bending test@-40℃, 16h | — | IEC 60811- 1-4 | No crack | |
Combustion test | — | IEC 60332-1 | VD-1 | |
The halogen acid gas content | mg/g | IEC 60754-1 | none | |
pH | — | IEC 60754-2 | 5 | |
Electrical conductivity | µS/mm | IEC 60754-2 | 3.8 | |
Dielectric strength @20℃ | MV/mm | IEC 60243-1 | 25 | |
Volume resistivity @20℃ | Ω ·cm | ASTM D257 | ≥ 1×1014 | |
Hardness | Shore A | ASTM D2240 | 93 | |
The irradiation condition: hot prolongation(25% to 35%) | % | — | 20-30 | |
Processing
Recommend to use conventional single screw extruder and specific low smoke halogen-free screw. Reference model : Φ 70 model; Low compression ratio specific low smoke halogen-free screw;L/ D ratio=25:1.
Zone | 1 | 2 | 3 | 4 | 5 | Neck | Head | Die |
Temperature Range℃ | 110 | 125 | 135 | 140 | 145 | 155 | 160 | 165 |
- Above temperature is only for reference.
Storage
Keep at room temperature; Storage environment should be clean, dry and ventilated; Please dry it after a long-time opening; Best use within six months from the date of production.
Product packing
25kg in moisture resistant aluminum laminated bags with composite paper bags outside; palletized bottom.
