IEC Standard ASTM B232 or Customized Overhead Hard Drawn Bare Conductors

IEC Standard Hard Drawn Bare Conductors with Customizable Options ASTM B232

5 0 Reviews

Quantity:
Availability:





Inquire Add to Basket

AAC

Product: ALLALUMINUM CONDUCTORS(CLASSA& CLASSAA)

Standards:ASTM B-231

Tpical drawing:

Code	Area		Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	Nominal	Actual	Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	AWG or MCM	mm²	No./mm	mm	kg/km	KN	Ohm/kM	M±5
PEACHBEIL	6	13.29	7/1.554	4.67	37	2.49	2.1692	3,500
ROSE	4	21.16	7/1.961	5.89	58	3.96	1.3624	3,000
IRIS	2	33.61	7/2.474	7.42	93	5.97	0.8577	2,500
PANSY	1	42.39	7/2.776	8.33	117	7.32	0.6801	2,500
POPPY	1/10	53.48	7/3.119	9.36	147	8.73	0.539	2,000
ASTER	2/0	67.42	7/3.503	10.51	186	11	0.4276	3,500
PHLOX	3/0	85.03	7/3.932	11.8	234	13.47	0.339	3,000
OXLIP	4/0	107.23	7/4.417	13.26	296	16.98	0.2686	2,000
VALERIAN	250	126.71	19/2.913	14.57	349	20.62	0.2275	2,000
SNEEZEWORT	250	126.71	7/4.80	14.4	349	20.07	0.2275	2,000
LAUREL	266.8	135.16	19/3.01	15.05	373	22	0.2133	2,000
DAISY	266.8	135.16	7/4.96	14.9	373	21.41	0.2133	2,000
PEONY	300	152	19/3.193	15.97	419	24.03	0.1896	3,000
TULIP	336.4	170.45	19/3.381	16.91	470	26.95	0.1691	3,000
DAFFODIL	350	177.35	19/3.447	17.24	489	28.04	0.1625	3,000
CANNA	397.5	201.42	19/3.673	18.36	555	31.84	0.1431	2,500
GOLDENTUFT	450	228	19/3.909	19.55	629	34.99	0.1264	2,000
SYRINGA	477	241.68	37/2.862	20.19	666	38.49	0.1193	2,500
COSMOS	477	241.68	19/4.023	20.12	666	37.08	0.1193	2,000
HYACINTH	500	253.35	3712.951	20.65	698	40.35	0.1138	2,500
ZINNIA	500	253.35	19/4.12	20.6	698	38.88	0.1138	2,000

Code	Area		Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	Nominal	Actual	Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	AWG or MCM	mm²	No./mm	mm	kg/km	KN	Ohm/kM	M±5
DAHUA	556.5	282	19/4.346	21.73	777	43.27	0.1022	2,000
MISTLETOE	556.5	282	37/3.114	21.79	777	43.62	0.1022	2,000
IEJOOW SWEET	600	304	37/3.233	22.63	838	47.03	0.0948	2,000
ORCHID	636	322.25	37/3.33	23.31	688	49.85	0.0894	2,000
HEUCHERA	650	329.35	37/3.366	23.56	908	50.95	0.0875	2,000
FLAG	700	354.71	61/2.72	24.48	978	51.46	0.0813	2,000
VERBENA	700	354.71	37/3.493	24.45	978	54.87	0.0813	2,000
NASTURTIUM	715.5	362.58	61/2.75	24.76	1,000	58.74	0.0795	2,000
VIOLET	715.5	362.58	37/3.533	24.74	1,000	56.09	0.0795	3,000
CATTAIL	750	380	61/2.817	25.35	1,048	59.85	0.0759	2,000
PETUNIA	750	380	37/3.617	25.32	1,048	58.75	0.0759	3,000
LILAC	795	402.84	61/2.9	26.11	1,111	63.45	0.0715	2,000
ARBUTUS	795	402.84	37/3.724	26.06	1,111	62.32	0.0715	3,000
SHAPDRAGON	900	456.06	61/3.086	27.78	1,257	69.78	0.0632	3,000
COCKSCOMB	900	456.06	37/3.962	27.73	1,257	68.48	0.0632	2,500
GOLDENROD	954	483.42	61/3.177	28.6	1,333	78.96	0.0596	2,000
MAGNOLIA	954	483.42	37/4.079	28.55	1,333	72.58	0.0596	2,500
CAMELLIA	1,000	506.71	61/3.251	29.36	1,397	77.53	0.0569	2,000
HAWKWEED	1,000	506.71	37/4.176	29.23	1,397	76.08	0.0569	2,500
LARKSPUR	1,033.5	523.68	61/3.307	29.76	1,444	80.12	0.055	2,500
BLUEBELL	1,033.5	523.68	37/4.244	29.72	1,444	78.63	0.055	2,500
MARIGOLD	1,113	563.93	61/3.432	30.89	1,555	86.28	0.0511	2,500
HAWTHORN	1,192.5	604.26	61/3.551	31.05	1,666	92.45	0.0477	2,000
NARCISSUS	1,272	644.51	61/3.668	33.02	1,777	98.61	0.0447	2,000
COLUMBINE	1,351.5	684.84	61/3.78	34.01	1,888	104.78	0.0421	2,000
CARNATION	1,431	725.1	61/3.89	35.03	1,999	107.68	0.0398	2,000
GLADIOLUS	1,510.5	765.35	61/4.00	35.09	2,110	113.65	0.0376	2,000
COREOPS	1,590	805.68	61/4.099	36.51	2,221	119.64	0.0358	2,000
JESSAMINE	1,750	886.71	61/4.302	38.73	2,445	131.68	0.0325	1,500

AAC

Product: ALLALUMINUM CONDUCTORS

Standards: BS 215,PART 1

Typical drawing:

Code	Area		Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	Nominal	Actual	Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	AWG or MCM	mm²	No./mm	mm	kg/km	KN	Ohm/kM	M±5
MIDGE	22	23.33	7/2.06	6.2	64	3.99	1.227	2,500
APHIS	25	26.4	3/3.35	7.2	73	4.11	1.081	2,000
GNAT	25	26.8	7/2.21	6.6	73	4.59	1.066	2,000
WEEVIL	30	31.6	3/3.66	7.9	86	4.86	0.9082	3,000
MOS QUITO	35	37	7/2.59	7.8	101	6.03	0.7762	2,000
LADYBIRD	40	42.8	7/2.79	8.4	117	6.87	0.6689	2,000
ANT	50	52.83	7/3.1	9.3	145	8.28	0.5419	2,000
FLY	60	63.55	7/3.4	10.2	174	9.9	0.4505	2,000
BLUE BOTTLE	70	73.7	7/3.66	11	202	11.34	0.3881	3,000
EARWING	75	78.5	7/3.78	11.4	215	11.94	0.3644	3,000
GRASS HOPPER	80	84.1	7/3.91	11.7	230	12.78	0.3406	3,000
CLEGG	90	95.6	7/4.17	12.5	262	14.53	14.53	2,500
WASP	100	106	7/4.39	13.2	290	16	0.2702	2,000
BEETLE	100	106.6	19/2.67	13.4	293	17.42	0.2704	2,000
BEE	125	132	7/4.90	14.7	361	19.94	0.2169	2,000
CRICKET	150	157.9	7/5.36	16.1	432	23.85	0.1813	1,500
HORNET	150	157.6	19/3.25	16.3	434	27.7	0.1825	3,000
COCK ROACH	250	265.7	19/4.22	21.1	731	40.4	0.1083	2,000
DRONE	350	373.3	37/3.58	25.1	1029	57.45	0.07741	3,500
CATER PILLAR	175	186	19/3.53	17.7	512	28.63	0.1547	2,500
CHAFER	200	213.2	19/3.78	18.9	587	32.4	0.1349	2,500
SPIDER	225	236.9	19/3.99	20	652	36.01	0.1211	2,000
BUTTER FLY	300	322.7	19/4.65	23.3	688	48.7	0.08916	1,500
MOTH	350	373.2	1915	25	1,027	56.37	0.07711	1,500
LOCUST	400	428.5	1915.36	26.8	1,179	64.73	0.0671	1,500
CENTI PEDE	400	415.2	37/3.78	26.5	1,145	63.1	0.06944	3,000
MAYBUG	450	486.9	37/4.09	28.6	1,342	74.01	0.05931	2,500
SCORPION	500	529.5	37/4.27	29.9	1,460	79.98	0.05441	2,500
CICADA	500	628.6	37/4.65	32.6	1,733	94.95	0.04588	2,000
TARAN TULA	750	794.8	3715.23	36.6	2.191	120.1	0.03627	1,500

AAAC

Product: ALLALUMINUM ALLOY CONDUCTORS

Standards:DIN 48201

Typical drawing:

Area		Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
Nominal	Actual	Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
AWG or MCM	mm³	No./mm	mm	kg/km	KN	Ohm/kM	M±5
16	15.89	7/1.7	5.1	44	4.41	2.091	3,000
25	24.25	7/2.1	6.3	67	6.77	1.3703	3,000
35	34.36	7/2.5	7.5	94	9.61	0.9669	3,000
50	49.46	7/3.0	9	135	13.82	0.6714	3,000
50	46.36	19/1.8	9	133	13.54	0.6905	3,000
70	65.82	19/2.1	10.5	181	18.39	0.5073	2,000
95	93.27	19/2.5	12.5	256	26.09	0.3579	2,000
120	117	19/2.8	14	322	32.72	0.2854	2,000
150	147.1	37/2.25	15.7	406	41.1	0.2274	2,000
185	181.6	37/2.5	17.5	501	50.77	0.1842	2,000
240	242.5	61/2.25	20.2	670	67.79	0.1383	2,000
300	299.4	61/2.5	22.5	827	83.73	0.112	2,000
400	400.1	61/2.89	26	1,105	111.83	0.0938	2,000
500	499.8	61/3.23	29.1	1,381	139.74	0.06709	2,000

AAAC

Product:ALLALUMINUM ALLOY CONDUCTORS

Standards: NFC 34- 125

Typical drawing:

Designation

Area

Equivalent

Copper

Area

Stranding Wire Diameter

Overall

Diameter

Nominal

Breaking

Load

Nominal

Resistance

at 20℃

Standard

Weight

Standard

Length

No.

mm²

mm

KN

Ohm/kM

m±5%

ASTER 22

21.99

12

7

2.00

6.00

710

1.50

60.2

4,000

ASTER 34-4

34.36

18.8

7

2.50

7.50

1.105

0.958

94

3,000

ASTER 54-6

54.55

29.8

7

3.15

9.45

1.755

0.603

149

3,000

ASTER 75-5

75.54

41.3

19

2.25

11.26

2.430

0.438

208

3,000

ASTER 93-3

93.27

51

19

2.50

12.50

3.000

0.354

257

3,000

ASTER 117

116.98

63.9

19

2.80

14.00

3.765

0.283

322

2,000

ASTER 148

148.01

80.9

19

3.15

15.75

4.765

0.224

407

2,000

ASTER 181-6

181.62

99.2

37

2.50

17.50

5.845

0.183

500

2,000

ASTER 228

227.83

124.5

37

2.80

19.60

7.340

0.146

627

2,000

ASTER 288

288.34

157.6

37

3.15

22.05

9.280

0.115

794

2,000

ASTER 366

366.22

200.1

37

3.55

24.85

11.785

0.0905

1,009

2,500

ASTER 570

570.22

311.6

61

3.45

31.05

18.360

0.0583

1,574

2,000

AACSR

Product: STEEL REINFORCED CONDUCTORS

Standards:Typical ALLALUMINUMALLOY NFC 34- 125

drawing:East Energy Electrical Engineering

Designation	Steel Area	Al Alloy Area	Tot.	Equival -ent CU Area	Number				Approx. Overall Dia.		Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Weight	Std. Length
	Steel Area	Al Alloy Area	Tot.	Equival -ent CU Area	Steel		Al Alloy		Steel Core	Comp lete Cond.	Nom. Breaking Load	Nom.DC Resistance at 20℃
	mm²	mm²	mm²	mm²	No.		No.		mm	mm	daN	Ohm/kM	kg/km	m±5%
PHLOX 37-7	9.42	28.27	37.69	15.4	3	2.00	9	2.00	4.3	8.3	2,360	1.17	155	4,000
PHLOX 59-7	21.99	37.7	59.69	20.6	7	2.00	12	2.00	6	10	4,560	0.88	276	4,000
PHLOX 75-5	27.83	47.71	75.54	26	7	2.25	12	2.25	6.75	11.25	5,770	0.695	348	3,000
PHLOX 116-2	59.69	56.55	116.24	30.9	19	2.00	18	2.00	10	14	10,815	0.58	636	3,000
PHLOX 147-1	75.54	71.57	147.11	39.1	19	2.25	18	2.25	11.25	15.75	13,685	0.466	802	3,000
PASTEL 147-1	27.83	119.28	147.11	65.2	7	2.25	30	2.25	6.75	15.75	8,185	0.279	547	3,000
PHLOX181-6	93.27	88.36	181.63	48.3	19	2.50	18	2.50	12.5	17.5	16,895	0.378	990	3,000
PASTEL 181-6	34.36	147.26	181.62	80.5	7	2.50	30	2.50	7.5	17.5	10,120	0.227	675	3,000
PHLOX 228	116.99	110.83	227.82	60.5	19	2.80	18	2.80	14	19.6	21,200	0.3	1,244	2,000
PASTEL 228	43.1	184.72	227.82	101	7	2.80	30	2.80	8.4	19.6	12,680	0.18	848	2,000
PHLOX 288	148.07	140.28	288.35	76.6	19	3.15	18	3.15	15.75	22.05	26,800	0.237	1,570	2,000
PASTEL 288	54.55	233.8	288.35	127.7	7	3.15	30	3.15	9.45	22.05	16,050	0.142	1,074	2,000
PASTEL 299	93.27	206.17	299.44	112.7	19	2.50	42	2.50	12.5	22.5	20,875	0.162	1,320	2,000
PHLOX 94-1	42.12	51.95	94.07	28.4	19	1.68	15	2.10	8.4	12.8	8,035	0.642	481	4,000
PASTEL412	85.95	325.72	411.67	178	19	2.40	32	3.60	12	26.4	20,830	0.103	1,593	2,500

AAAC

Product: ALLALUMINUM ALLOY CONDUCTORS

Standards: ASTM B 399

Typical drawing:

Code	Area		Size and Stranding of ACSR with Equal Diameter		No.and Diameter of Wires	Overall Diameter	Weight	Nominal Breaking Load	Standard Length
	Nominal	Actual	Size and Stranding of ACSR with Equal Diameter		No.and Diameter of Wires	Overall Diameter	Weight	Nominal Breaking Load
	MCM	mm²	AWG or MCM	Al/Steel	mm	mm	kg/km	KN	M±5
AKRON	30.58	15.48	6	6/1	7×1.68	5.04	42.7	4.92	3,000
ALTON	48.69	24.71	4	6/1	7×2.12	6.35	68	7.84	3,000
AMES	77.47	39.22	2	6/1	7×2.67	8.02	108	12.45	2,000
AZUSA	123.3	62.38	1/0	6/1	7×3.37	10.11	172	18.97	2,000
ANAHEIM	155.4	78.65	2/0	6/1	7×3.78	11.35	217	23.93	3,000
AMHERST	195.7	99.22	3/0	6/1	7×4.25	12.75	273	30.18	2,500
ALLIANCE	246.9	125.1	4/0	6/1	7×4.77	14.31	345	38.05	2,000
BUTTE	312.8	158.6	266.8	26/7	19×3.26	16.3	437	48.76	3,000
CANTON	394.5	199.9	336.4	26/7	19×3.66	18.3	551	58.91	2,500
CAIRO	465.4	235.8	397.5	26/7	19×3.98	19.88	650	69.48	2,000
DARIEN	559.5	283.5	477	26/7	19×4.36	21.79	781	83.52	2,000
ELGIN	652.4	330.6	556.5	26/7	19×4.71	23.54	911	97.42	1,500
FLINT	740.8	375.3	636	26/7	37×3.59	25.16	1,035	108.21	3,000
GREELEY	927.2	469.8	795	26/7	37×4.02	28.14	1,295	135.47	2,500

AAAC

Product: ALLALUMINUM ALLOY CONDUCTORS

Standards: ASTM B 399

Typical drawing:

Area		Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
Nominal	Actual	Stranding and Wire Diameter	Approx. Overall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
AWG or MCM	mm²	mm	mm	kg/km	KN	Ohm/kM	M±5
6	13.3	7/1.554	4.67	37	4.22	2.5199	3,500
4	21.15	7/1.961	5.89	58	6.71	1.5824	3,000
2	33.63	7/2.474	7.42	93	10.68	0.9942	2,500
1/0	53.48	7/3.119	9.36	148	16.97	0.6256	2,000
2/0	67.42	7/3.503	10.51	186	20.52	0.4959	3,500
3/0	85.03	7/3.932	11.8	234	25.86	0.3936	3,000
4/0	107.23	7/4.417	13.26	296	32.63	0.3119	2,000
250	126.66	19/2.913	14.57	349	38.93	0.2642	2,000
300	152.1	19/3.193	15.97	419	46.77	0.2199	3,000
350	177.35	19/3.447	17.24	489	52.25	0.1887	3,000
400	202.71	19/3.686	18.43	559	59.74	0.165	2,500
450	228	19/3.909	19.55	629	67.19	0.1467	2,000
500	253.35	19/4.120	20.6	698	74.64	0.1321	2,000
550	278.6	37/3.096	21.67	768	83.8	0.1202	2,000
600	303.8	37/3.233	22.63	838	91.38	0.1102	2,000
650	329.25	37/3.366	23.56	908	97.94	0.1016	2,000
700	354.55	37/3.493	24.45	978	102.2	0.0944	3,500
750	380.2	37/3.617	25.32	1,049	109.6	0.088	3,000
800	405.15	37/3.734	26.14	1,117	116.8	0.0826	3,000
900	456.16	37/3.962	27.73	1,258	131.5	0.0733	3,000
1,000	506.71	37/4.176	29.23	1,399	146.1	0.066	2,500

AAAC

Product: ALLALUMINUM ALLOY CONDUCTORS

Standards: BS EN 50182

Typical drawing:

Code	Area		Stranding and Wire Dia.	Approx. Oyerall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	Nominal	Actual	Stranding and Wire Dia.	Approx. Oyerall Diameter	Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Standard Length
	mm²	mm²	mm	mm	kg/km	KN	Ohm/kM	M±5
	10	11.9	7/1.47	4.41	32	3.33	2.277	2,500
BOX	15	18.8	7/1.85	5.55	51	5.27	1.749	2,000
ACACIA	20	23.9	7/2.08	6.24	65	6.7	1.384	2,500
ALMOND	25	30.1	7/2.34	7.02	82	8.44	1.094	2,000
CEDAR	30	35.5	7/2.54	7.62	97	9.95	0.9281	2,000
	35	42.2	7/2.77	8.31	115	11.83	0.78	2,000
FIR	40	47.8	7/2.95	8.85	131	13.4	0.688	2,500
HAZEL	50	59.9	7/3.30	9.9	164	16.8	0.5498	2,000
PINE	60	71.7	7/3.61	10.83	196	20.1	0.4595	3,000
	70	84.1	7/3.91	11.73	230	23.57	0.3917	3,000
WILLOW	75	89.8	7/4.04	12.12	246	25.17	0.3669	2,500
	80	96.5	7/4.19	12.57	264	27.04	0.341	2,500
	90	108.8	7/4.45	13.35	298	30.5	0.3026	2,000
OAK	100	118.9	7/4.65	13.95	325	33.3	0.2769	2,000
	100	118.7	19/2.82	14.1	326	33.3	0.2786	2,000
MULBERRY	125	151.1	19/3.18	15.9	415	42.3	0.219	3,000
ASH	150	180.7	19/3.48	17.4	497	50.6	0.183	3,000
ELM	175	211	19/3.76	18.8	580	59.1	0.1568	2,500
POPLAR	200	239	37/2.87	20.09	660	67	0.1387	2,500
	225	270.3	37/3.05	21.35	744	75.7	0.1224	2,000
SYCAMORE	250	303	37/3.23	22.61	835	84.9	0.1094	2,000
UPAS	300	362.1	37/3.53	24.71	998	101.5	0.09155	2,000
	350	421.8	37/3.81	26.67	1163	118.2	0.0786	3,000
YEW	400	479.9	37/4.06	28.42	1323	134.5	0.06908	2,500

ACST

Product:ALUMINUM CONDUCTORS STEEL REINFORCED

Standards:BS 215 PART 2

Typical drawing:

Area				Stranding & Wire Diameter		Approx Overall Dia.	Weight			Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
Nom.Alum.	Alum.	Steel	Total	Alum.	Steel	Approx Overall Dia.	Alum.	Steel	Total	Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
mm²	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	KN	Ohm/Km	m. ±5%
16/2.5	15.3	2.55	17.8	6/1.80	1/1.80	5.4	42	20	62	5.81	1.8793	2,500
25/4.0	23.8	4	27.8	6/2.25	1/2.25	6.8	65	32	97	9.02	1.2028	2,000
35/6.0	34.3	5.7	40	6/2.70	1/2.70	8.1	94	46	140	12.7	0.8353	2,000
44/32.0	44	31.7	75.7	14/2.00	7/2.40	11.2	122	250	373	45.46	0.6573	2,000
50/8.0	48.3	8	56.3	6/3.20	1/3.20	9.6	132	64	196	17.18	0.5946	2,000
50/30	51.2	29.8	81	12/2.33	7/2.33	11.7	141	237	378	44.28	0.5644	2,000
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	193	91	284	26.31	0.413	2,000
95/15	94.4	15.3	109.7	26/2.15	7/1.67	13.6	260	123	383	35.18	0.3058	3,000
95/55	96.5	56.3	152.8	12/3.20	7/3.20	16	266	446	714	80.2	0.2992	3,000
105/75	105.7	75.5	181.5	14/3.10	19/2.25	17.5	292	599	899	106.69	0.2736	2,000
120/20	121.6	19.8	141.4	26/2.44	7/1.9	15.5	336	158	494	44.94	0.2374	2,500
120/70	122	71.3	193.3	12/3.60	7/3.60	18	337	564	904	98.16	0.2364	2,500
125/30	127.9	29.8	157.7	30/2.33	7/2.33	16.3	353	238	590	57.86	0.2259	2,500
150/25	148.9	24.2	173.1	26/2.70	7/2.10	17.1	411	194	604	54.37	0.1939	2,000
170/40	171.8	40.1	211.9	30/2.70	7/2.70	18.9	475	319	794	77.01	0.1682	2,000
185/30	183.8	29.8	213.6	26/3.00	7/2.33	19	507	239	744	66.28	0.1571	2,500
210/35	209.1	34.1	243.2	26/3.20	7/2.49	20.3	577	273	848	74.94	0.138	2,000
210/50	212.1	49.5	261.6	30/3.00	7/3.00	21	587	394	979	92.25	0.1363	2,500
230/30	230.9	29.8	260.7	24/3.50	7/2.33	21	638	239	874	73.09	0.1249	3,500
240/40	243	39.5	282.5	26/3.45	7/2.68	21.9	671	316	985	86.46	0.1188	3,500
265/35	263.7	34.1	297.8	24/3.74	7/2.49	22.4	728	274	998	82.94	0.1094	3,000
300/50	304.3	49.5	353.7	26/3.86	7/3.00	24.5	840	396	1,233	105.09	0.0949	3,000
300/40	304.6	39.5	344.1	54/2.68	7/2.68	24.1	843	317	1,155	99.3	0.0949	2,000
340/30	339.3	29.8	369.1	48/3.00	7/2.33	25	938	242	1,174	92.56	0.0851	2,500
380/50	382	49.5	431.5	54/3.00	7/3.00	27	1,056	397	1,448	120.91	0.0757	3,000
385/35	386	34.1	420.1	48/3.20	7/2.49	26.7	1,067	277	1,336	104.31	0.0748	2,000
435/55	434.3	56.3	490.6	54/3.20	7/3.20	28.8	1,203	450	1,647	136.27	0.0666	2,000
450/40	448.7	39.5	488.2	48/3.45	7/2.68	28.7	1,241	320	1,553	120.19	0.0644	2,000
490/65	490.3	63.6	553.9	54/3.40	7/3.40	30.6	1,356	510	1,850	152.85	0.059	2,000
485/35	494.1	34.1	528.2	45/3.74	7/2.49	29.9	1,363	283	1,636	120.31	0.0584	2,000
510/45	510.2	45.3	555.5	48/3.68	7/2.87	30.7	1,413	365	1,770	134.33	0.0566	2,000
550/70	550	71.3	621.3	54/3.60	7/3.60	32.4	1,520	572	2,065	167.42	0.0526	2,000
560/50	561.7	49.5	611.2	48/3.86	7/3.00	32.2	1,553	401	1,943	146.28	0.0514	2,000
570/40	565.5	39.5	610.3	45/4.00	7/2.68	32.2	1,563	325	1,889	137.98	0.0506	2,500
632/45	632.1	45.3	677.4 764.8	45/4.23 54/4.00	7/2.87	34	1,754	364	2,183	155.52	0.0442	2,500
680/85	678.8	86	677.4 764.8	45/4.23 54/4.00	19/2.40	36	1,868	702	2,564	209.99	0.0426	2,500

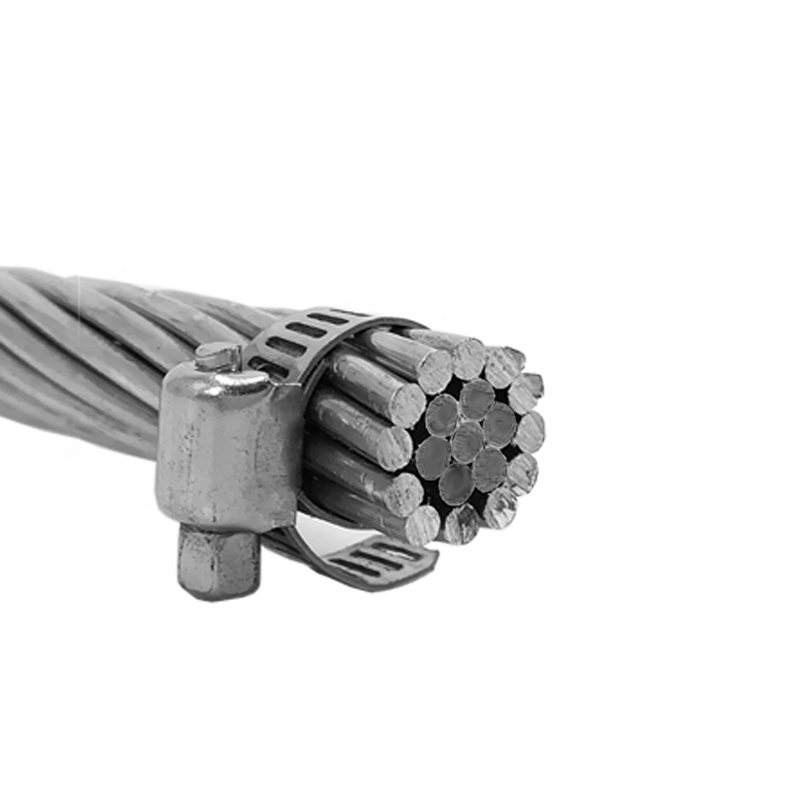

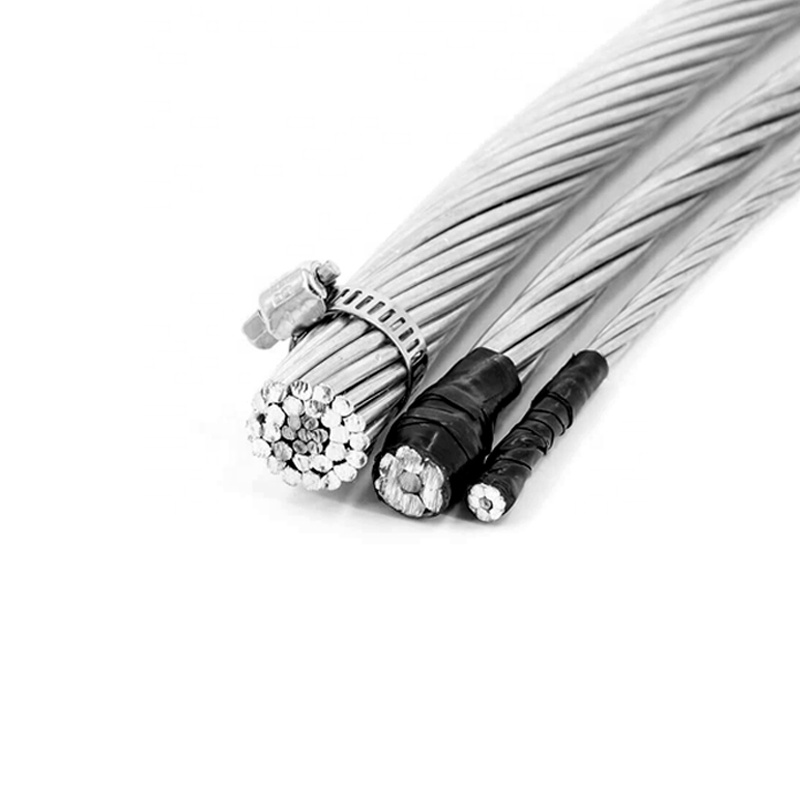

ACSR

Product:ALUMINUM CONDUCTORS STEEL REINFORCED

Standards:BS 215 PART 2

Typical drawing:

Code	Area				Stranding & Wire Diameter		Approx. Overall Dia.	Weight			Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	Nom.Alum	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Dia.	Alum.	Steel	Total	Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	mm²	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	KN	Ohm/Km	m. ±5%
MOLE	10	10.62	1.77	12.39	6/1.50	1/1.50	4.5	29	14	43	4.14	2.076	3,000
SQUIRREL	20	20.94	3.49	24.43	6/2.11	1/2.11	6.33	58	27	85	7.88	1.368	3,000
GOPHER	25	26.25	4.37	30.62	6/2.36	1/2.36	7.08	72	34	106	9.61	1.093	2,500
WEASEL	30	31.61	5.27	36.88	6/2.59	1/2.59	7.77	87	41	128	11.45	0.9077	2,000
FOX	35	36.66	6.11	42.77	6/2.79	1/2.79	8.37	101	48	149	13.2	0.7822	2,000
FERRET	40	42.41	7.07	49.48	6/3.00	1/3.00	9	117	55	172	15.2	0.6766	2,500
RABBIT	50	52.88	8.82	61.7	6/3.35	1/3.35	10.05	145	69	214	18.35	0.5426	2,000
MINK	60	63.18	10.53	73.71	6/3.66	1/3.66	10.98	173	82	255	21.8	0.4545	3,000
SKUNK	60	63.27	36.93	100.3	12/2.59	7/2.59	12.95	175	290	465	53	0.4567	2,500
BEAVER	70	74.82	12.47	87.29	6/3.99	1/3.99	11.97	205	97	302	25.7	0.3825	2,500
HORSE	70	73.37	42.8	116.17	12/2.79	7/2.79	13.95	203	335	536	61.2	0.3936	2.000
RACOON	75	79.2	13.2	92.4	6/4.10	1/4.10	12.3	217	103	320	27.2	0.3622	2,500
OTTER	80	83.88	13.98	97.86	6/4.22	1/4.22	12.66	230	109	339	28.8	0.3419	2,500
CAT	90	95.4	15.9	111.3	6/4.50	1/4.5	13.5	262	124	386	32.7	0.3007	2,000
HARE	100	105	17.5	122.5	6/4.72	1/4.72	14.16	288	137	425	36	0.2733	2,000
DOG	100	105	13.5	118.5	6/4.72	7/1.57	14.15	288	106	394	32.7	0.2733	2,000
HYENA	100	105.8	20.44	126.2	7/4.39	7/1.93	14.57	290	160	450	40.9	0.2712	2,000
LEOPARD	125	131.3	16.8	148.1	6/5.28	7/1.75	15.81	360	132	492	40.7	0.2184	2,000
COYOTE	125	132.1	20.1	152.2	26/2.54	7/1.91	15.89	365	157	522	46.4	0.2187	2,000
COUGAR	125	130.3	7.25	137.5	18/3.05	1/3.05	15.25	362	57	419	29.8	0.2189	2,000
TIGER	125	131.1	30.6	161.7	30/2.36	7/2.36	16.52	362	240	602	58	0.2202	2,500
WOLF	150	158	36.9	194.9	30/2.59	7/2.59	18.13	437	289	726	69.2	0.1828	2,000
DINGO	150	158.7	8.8	167.5	18/3.35	1/3.35	16.75	437	69	506	35.7	0.1815	3,000
LYNX	175	183.4	42.8	226.2	30/2.79	7/2.79	19.53	507	335	842	79.8	0.1576	2,000
CARACAL	175	184.2	10.3	194.5	18/3.61	1/3.61	18.05	507	80	587	41.1	0.1563	2,500
PANTHER	200	212	49.5	261.5	30/3.00	7/3.00	21	586	388	974	92.25	0.1363	2,500
LION	225	238.5	55.6	294.2	30/3.18	7/3.18	22.26	659	436	1,095	100.6	0.1212	2,000
BEAR	250	264	61.6	325.6	30/3.35	7/3.35	23.45	730	483	1,213	111.1	0.1093	2,000
GOAT	300	324.3	75.7	400	30/3.71	7/3.71	25.97	896	593	1,489	135.7	0.0891	3,000
SHEEP	350	374.1	87.3	461.4	30/3.99	7/3.99	27.93	1,034	684	1,718	155.9	0.07704	2,500
ANTELOPE	350	373.1	48.4	421.5	54/2.97	7/2.97	26.73	1,032	379	1,411	118.2	0.07727	2,500
BISON	350	381.8	49.5	431.3	54/3.00	7/3.00	27	1,056	388	1,444	120.9	0.07573	3,000
JAGUAR	200	210.6	11.7	222.3	18/3.86	1/3.86	19.3	580	91	671	46.55	0.1367	2,000
DEER	400	429.3	100.2	529.5	30/4.27	7/4.27	29.89	1,186	785	1,971	178.5	0.06726	2,500
ZEBRA	400	428.9	55.6	484.5	54/3.18	7/3.18	28.62	1,186	435	1,621	131.9	0.0674	2,000
ELK	450	477	111.3	588.3	30/4.50	7/4.50	31.5	1,318	872	2,190	198.2	0.06056	2,000
CAMEL	450	475.2	61.6	536.8	54/3.35	7/3.35	30.15	1,314	483	1,797	145.7	0.06073	2,500
MOOSE	500	528.7	68.5	597.2	54/3.53	7/3.53	31.77	1.462	537	1.999	161.1	0.0547	2,000

ACSR

Product: STEEL REINFORCED

Standards:Typical ALUMINUM ASTM

drawing:CONDUCTORS B 232

Code	Area				Stranding & Wire Diameter		Approx. Overall Dia.	Weight			Nom. Breaking Load	Nom.DC Resistance at 20℃	Std Length
	Nom.Alum	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Dia.	Alum.	Steel	Total	Nom. Breaking Load	Nom.DC Resistance at 20℃	Std Length
	mm²	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	KN	Ohm/Km	m. ±5%
TURKEY	6	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	5.24	2.1586	3,000
SWAN	4	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	8.32	1.3557	3,000
SWANATE	4	21.16	5.35	26.51	7/1.96	1/2.61	6.53	58	42	100	10.53	1.3557	3.000
SPARROW	2	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	12.7	0.8535	3,000
SPARATE	2	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	16.11	0.8535	2,500
ROBIN	1	42.39	7.1	49.49	6/3.00	1/3.00	9	116	55	171	15.85	0.6767	2,500
RAVEN	1/0	53.48	8.9	62.38	6/3.37	1/3.37	10.11	147	69	216	19.32	0.5364	2,000
QUAIL	2/0	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	23.62	0.4255	3,000
PIGEON	3/0	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	29.41	0.3373	2,500
PENGUIN	4/0	107.23	17.87	125.1	6/4.77	1/4.77	14.31	294	139	433	37.06	0.2675	2,000
WAXWING	266.8	135.16	7.48	142.64	16/3.09	1/3.09	15.45	373	58	431	30.27	0.2133	3,500
PARTRIDGE	266.8	135.16	22	157.16	26/2.57	7/2.00	16.28	374	172	546	50.29	0.2143	2,500
OSTRICH	300	152	24.71	176.11	26/2.73	7/2.12	17.28	421	193	614	56.52	0.1906	3,000
MERUN	336.4	170.45	9.48	179.93	16/3.47	1/3.47	17.35	470	74	544	38.23	0.1691	2,000
LINNET	336.4	170.45	27.81	198.26	26/2.89	7/2.25	18.31	472	217	689	62.71	0.1699	2,500
ORIOLE	336.4	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	311	784	77.27	0.1704	3,000
CHICKADEE	397.5	201.42	11.16	212.58	16/3.77	1/3.77	18.85	555	87	642	43.99	0.1431	2,500
BRANT	397.5	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	64.69	0.1438	2,000
IBIS	397.5	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	72.11	0.1438	2,500
LARK	397.5	201.42	48.97	248.39	30/2.92	7/2.92	20.44	560	367	927	88.69	0.1442	2,500
PELICAN	477	241.68	13.42	255.1	18/4.14	1/4.14	20.7	666	105	771	52.16	0.1193	2,000
FLICKER	477	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	76.66	0.1199	3,000
HAWK	477	241.68	39.42	281.1	26/3.44	7/2.67	21.79	670	308	978	86.65	0.1199	2,000
HEN	477	241.68	56.39	298.07	30/3.20	7/3.20	22.4	671	441	1,112	105.34	0.1201	2,000
OSPREY	556.5	282	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	60.88	0.1022	2,000
PARAKEET	556.5	282	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1,067	88.22	0.1027	3,000
DOVE	556.5	282	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1,140	101.03	0.1027	3,000
EAGLE	556.5	282	65.81	347.81	30/3.46	7/3.46	24.21	783	515	1,298	122.92	0.103	3,500
PEACOCK	605	306.58	39.74	346.32	24/4.03	7/2.69	24.2	849	311	1,160	95.88	0.0945	3,000
SQUAB	605	306.58	49.94	356.52	26/3.87	7/3.01	24.51	850	390	1,240	108.14	0.0945	3,000
WOOD DUCK	605	306.58	71.55	378.13	30/3.61	7/3.61	25.25	851	560	1,411	128.84	0.0947	3,000
TEAL	605	306.58	69.87	376.45	30/3.61	19/2.16	25.24	851	548	1,399	133.59	0.0947	2,000
KINGBIRD	636	322.26	17.9	340.16	18/4.78	1/4.78	23.88	889	139	1,028	69.55	0.08945	2,000
ROOK	636	322.26	41.81	364.07	24/4.14	7/2.76	24.84	893	326	1.219	100.63	0.08989	2,500

Code	Area				Stranding & Wire Diameter		Approx. Overall Dia.	Weight			Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	Nom.Alum	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Dia.	Alum.	Steel	Total	Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	mm²	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	KN	Ohm/Km	m. ±5%
GROSBEAK	636	322.26	52.45	374.71	26/3.97	7/3.09	25.15 25.88	893	409	1,302	111.8	0.08989	3,000
SCOTER	636	322.26	75.22	397.48	30/3.70	7/3.70	25.15 25.88	895	589	1,484	135.44	0.09011	3,000
EGRET	636	322.26	73.55	395.8	30/3.70	19/2.22	25.9	894	576	1,470	140.3	0.09011	3.000
SWIFT	636	322.26	8.96	331.22	36/3.38	1/3.38	23.62	888	70	958	60.52	0.08945	2,000
FLAMINGO	666.6	337.74	43.81	381.55	24/4.23	7/2.82	25.4	936	342	1,278	105.68	0.08577	2,500
GANNET	666.6	337.74	55.03	392.77	26/4.07	7/3.16	25.76	938	429	1,365	117.33	0.08577	2,500
STILT	715.5	362.58	46.97	409.55	24/4.39	7/2.92	26.31	1,005	367	1,372	113.35	0.07989	2,000
STARLING	715.5	362.53	59.03	421.61	26/4.21	7/3.28	26.68	1,005	461	1,466	125.91	0.07989	2,500
REDWING	715.5	362.58	82.58	445.16	30/3.92	19/2.35	27.43	1,006	647	1,653	153.94	0.08009	2,000
TERN	795	402.84	27.87	430.71	45/3.38	7/2.25	27.03	1,116	217	1,333	97.37	0.07191	2,500
CONDOR	795	402.84	52.19	455.03	54/3.08	7/3.08	27.72	1,116	408	1,524	124.45	0.07191	3,000
CUCKOO	795	402.84	52.19	455.03	24/4.62	7/3.08	27.74	1,116	408	1,524	123.94	0.07191	2,000
DRAKE	795	402.84	65.51	468.45	26/4.44	7/3.45	28.11	1,116	512	1.628	139.92	0.07191	2,000
COOT	795	402.84	11.16	414	36/3.77	1/3.77	26.41	1,110	88	1,198	74.34	0.07156	3,000
MALLARD	795	402.84	91.87	484.71	30/4.14	19/2.48	28.96	1,119	719	1.838	171.18	0.07208	2,500
RUDDY	900	456.06	31.54	487.6	45/3.59	7/2.40	28.73	1,263	247	1,510	108.96	0.06351	2,000
CANARY	900	456.06	59.1	515.6	54/3.28	7/3.28	29.52	1,263	461	1,724	140.95	0.06351	2,000
RAIL	954	483.42	33.42	516.84	45/3.70	7/2.47	29.61	1,339	262	1,601	115.63	0.05992	2,000
CATBIRD	954	483.42	13.42	496.84	36/4.14	1/4.14	28.95	1,333	105	1,438	87.65	0.05962	2,500
CARDINAL	954	483.42	62.65	546.07	54/3.38	7/3.38	30.42	1,339	490	1,829	149.36	0.05992	2,500
ORTLAN	1,033.5	523.68	36.19	559.87	45/3.85	7/2.57	30.81	1,451	283	1,734	123.1	0.05531	2,000
TANGER	1,033.5	523.68	14.51	538.19	36/4.30	1/4.30	30.12	1,443	113	1,556	94.93	0.05504	2,000
CURLEW	1,033.5	523.68	67.87	591.55	54/3.52	7/3.52	31.68	1,451	530	1,981	161.8	0.05531	2,000
BLUEJAY	1,113	563.93	39.03	602.96	45/4.00	7/2.66	31.98	1,563	385	1,868	132.63	0.05136	2,500
FINCH	1,113	563.93	71.55	635.48	54/3.65	19/2.19	32.85	1,570	580	2,130	174.41	0.05161	2,000
BUNTING	1,192.5	604.26	41.55	645.81	45/4.14	7/2.76	33.12	1,674	327	2,001	141.79	0.04793	2.500
GRACKLE	1,192.5	604.26	76.58	680.84	54/3.77	19/2.27	33.97	1,682	600	2,282	188.38	0.04817	2,000
BITTERN	1,272	644.51	44.52	689.03	45/4.27	7/2.85	34.17	1,785	349	2,134	151.48	0.04494	2,500
PHEASANT	1,272	644.51	81.63	726.19	54/3.90	19/2.34	35.1	1,795	638	2,433	194	0.04516	2.000
SKYLARK	1,272	644.51	17.87	662.38 731.94	36/4.78	1/4.78	33.42	1.777	140	1.917	115.85	0.04472	2,000
DIPPER	1,351.5	684.84 684.84	47.1	662.38 731.94	45/4.40	7/2.92	35.16	1,898	368	2,266	160.7	0.0423	2,000
MARTIN	1,351.5	684.84 684.84	88.71	771.55 775.42	54/4.02	19/2.41	36.17	1,906	679	2,585	206.05	0.0425	2,000
BOBOLINK	1,431	725.1	50.32	771.55 775.42	45/4.53	7/3.02	36.24	2,009	393	2,402	170.71	0.03994	2,000
PLOVER	1,431	725.1	91.87	816.97	54/4.14	19/2.48	37.24	2,019	719	2,738	218.24	0.04013	2,500
NUTHATCH	1,510.5	765.35	52.9	818.25	45/4.65	7/3.10	37.2	2,120	414	2,534 2,890 2,667 3,042 222	177.89	0.03784	2,000
PARROT	1,510.5	765.35	96.84	862.19	54/4.25	19/2.55	38.25	2,131	759		230.2	0.03802	2,000
LAPWING	1,590	805.68	55.48 102.13	861.16	45/4.77	7/3.18	38.16	2,232 2,243	435 799		187.02	0.03595	2,000
FALCON	1,590	805.68	55.48 102.13	907.81	54/4.36	19/2.62	39.26	2,232 2,243	435 799		242.55	0.03613	2,000
GROUSE	80	40.52	14.13	54.65	8/2.54	1/4.24	9.32	112	110		23.6	0.7115	2,500
PETREL	101.8	51.61	30.06	81.67	12/2.34	7/2.34	11.71 12.22 13.46	143 156 189	235 256 311 367 409 441 722 488	378 412 500 590 657 709 1007 785	41.75	0.5613	2,000 2,000 2,000 2,000 2,000 3,000 2,500 3.000
MINORCA	110.8	56.13	32.77	88.9	12/2.44	7/2.44					51.25 61.7 72.55 78.5 84.8 128.8 93.9	0.5161 0.4248 0.3595 0.3237 0.2995 0.2813 0.2705
LEGHORN	134.6	68.19	39.81	108	12/2.69	7/2.69
GUINEA DOTTEREL DORKING	159	80.58	46.97	127.55	12/2.92	7/2.92	14.63 15.42 16.03 18.14 16.84	223 248 266 285 297
	176.9	89.48	52.19	141.67	12/3.08	7/3.08
	190.8 203.2 211.8	96.71 102.97 107.1	56.39 91.87 62.45	153. 94.84 169.55	12/3.20 18/2.86 12/3.37	7/3.20 19/2.48 7/3.37
BRAHMA COCHIN	190.8 203.2 211.8	96.71 102.97 107.1	56.39 91.87 62.45	153. 94.84 169.55	12/3.20 18/2.86 12/3.37	7/3.20 19/2.48 7/3.37

ACSR/AW

Product:ALUMINUM CONDUCTORS ALUMINUM CLAD STEEL REINFORCED

Standards:ASTM B 549

Typical drawing:

Code	Area				Stranding & Wire Diameter		Approx. Overall Dia.	Weight			Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	Nom.Alum	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Dia.	Alum.	Steel	Total	Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	mm²	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	KN	Ohm/Km	m. ±5%
SWANATE	4	21.16	5.35	26.51	7/1.96	1/2.61	6.53	58	35	93	10.16	1.249	2,000
SPARROW	2	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	37	129	12.31	0.8079	2,000
SPARATE	2	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	56	148	15.6	0.7861	2,000
ROBIN	1	42.39	7.1	49.49	6/2.00	1/3.00	9	116	47	163	15.34	0.6404	2,500
RAVEN	1/0	53.48	8.9	62.38	6/3.37	1/3.37	10.11	147	59	206	18.78	0.5078	2,000
QUAIL	2/0	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	74	259	22.85	0.4028	3,000
PIGEON	3/0	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	94	327	28.03	0.3193	2,500
PENGUIN	4/0	107.23	17.87	125.1	6/4.77	1/4.77	14.31	294	118	412	34.15	0.2532	2,000
WAXWING	266.8	135.16	7.48	142.64	16/3.09	1/3.09	15.45	373	49	422	30.03	0.2094	2,000
MERLIN	336.4	170.45	9.48	119.93	16/3.47	1/3.47	17.35	470	62	532	37.66	0.166	2,500
LINNET	336.4	170.45	21.81	198.26	26/2.89	7/2.25	18.31	472	184	656	59.95	0.161	2,500
ORIOLE	336.4	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	264	737	74.65	0.1578	2,000
CHICKADEE	397.5	201.42	11.16	212.58	16/3.77	1/3.77	18.85	555	74	629	43.62	0.1405	2,500
IBIS	397.5	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	217	775	69.8	0.1363	2,000
LARK	397.5	201.42	46.97	248.39	30/2.92	7/2.92	20.44	560	311	871	87.19	0.1335	2,500
PELICAN	477	241.68	13.42	255.1	18/4.14	1/4.14	20.7	666	88	754	50.86	0.1171	2,000
FLICKER	477	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	207	877	74.35	0.1148	3,000
HAWK	477	241.68	39.42	281.10	26/3.44	7/2.67	21.8	670	261	931	83.87	0.1136	3,500
HEN	477	241.68	56.39	298.07	30/3.20	7/3.20	22.4	671	373	1,044	103.63	0.1113	2,000
OSPREY	556.5	282	15.68	297.68	18/4.47	1/4.47	22.35	777	103	880	58.73	0.1003	2,000
PARAKEET	556.5	282	36.58	318.58	24/3.87	7/2.58	23.22	781	242	1,023	85.64	0.0984	2,500
DOVE	556.5	282	45.94	327.94	26/3.72	7/2.89	23.55	781	304	1,085	97.6	0.0973	3,000
EAGLE	556.5	282	65.81	347.8	30/3.46	7/3.46	24.21	783	436	1,219	118.96	0.0954	3,500
PEACOCK	605	306.58	39.74	346.32	24/4.03	7/2.69	24.2	840	263	1,112	93.08	0.0905	2,500
SQUAB	605	306.58	49.94	356.52	26/3.87	7/3.01	24.51	850	330	1,180	104.89	0.0895	3,000
WOOD DUCK	605	306.58	71.55	378.13	30/3.61	7/3.61	25.25	851	474	1,325	126.53	0.0877	3,000
KINGBIRD	636	322.26	17.9	340.16	18/4.78	1/4.78	23.88	889	118	1,007	66.64	0.0978	2,000
ROOK	636	322.26	41.81	364.07	24/4.14	7/2.76	24.84	893	277	1,170	97.88	0.0861	2,500
GROSBEAK	636	322.26	52.45	374.7	26/3.97	7/3.09	25.15	893	347	1,240	110.21	0.0852	2,500
SCOTER	636	322.26	75.22	397.48	30/3.70	7/3.70	25.88	895	498	1,393	130.29	0.0834	3,000
SWIFT	636	322.26	8.96	331.22	36/3.38	1/3.38	23.62	888	59	947	60.36	0.0886	2,000
FLAMINGO	666.6	337.74	43.81	381.55	24/4.23	7/2.82	25.4	936	290	1,226	102.57	0.0821	2,500
GANNET	666.6	337.74	55.03	392.77	26/4.07	7/3.16	25.76	936	364	1,300	115.57	0.0813	2,500
STILT	715.5	362.58	46.97	409.55	24/4.39	7/2.92	26.31	1,005	311	1.316	110.04	0.0765	2,000

Code	Area				Stranding & Wire Diameter		Approx. Overall Dia.	Weight			Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	Nom.Alum	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Dia.	Alum.	Steel	Total	Nom. Breaking Load	Nom.DC Resistance at 20℃	Std. Length
	mm²	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	KN	Ohm/Km	m. ±5%
STARLING	715.5	362.58	59.03	421.61	26/4.21	7/3.28	26.68	1,005	391	1,396	122.35	0.0757	2,500
REDWING	715.5	362.58	82.58	445.16	30/3.92	19/2.35	27.43	1,006	547	1,553	148.31	0.0743	2,000
TERN	795	402.84	27.87	430.71	45/3.38	7/2.25	27.03	1,116	184	1,300	95.44	0.0702	2,500
COIJOR	795	402.84	52.19	455.03	54/3.08	7/3.08	27.72	1,116	345	1,461	122.77	0.0689	3,000
CUCKOO	795	402.84	52.19	455.03	24/4.62	7/3.08	27.74	1,116	345	1,461	122.77	0.0689	2,000
DRAKE	795	402.84	65.61	468.45	26/4.44	7/3.45	28.11	1,116	434	1,550	135.96	0.0681	2,000
COOT	795	402.84	11.16	414	36/3.77	1/3.77	26.41	1,110	74	1,184	74.09	0.0709	3,000
MALLARD	795	402.84	91.87	494.71	30/4.14	19/2.48	28.96	1,119	609	1,728	164.91	0.0669	2,500
RUDDY	900	456.06	31.54	487.6	45/3.59	7/2.4	28.73	1,263	209	1,472	107.09	0.082	2,000
CANARY	900	456.06	59.1	515.16	54/3.28	7/3.28	29.52	1,263	391	1,654	137.34	0.0808	2,000
RAIL	954	483.42	33.42	516.84	45/3.70	7/2.47	29.61	1,339	221	1,560	113.26	0.0585	2,000
CATBIRD	954	483.42	13.42	496.84	36/4.14	1/4.14	28.95	1,333	88	1,421	86.36	0.0591	2,500
CARDINAL	954	483.42	62.65	546.07	54/3.38	7/3.38	30.42	1,339	414	1,753	145.59	0.0574	2,500
ORTLAN	1,033.5	523.68	36.19	559.67	45/3.85	7/2.57	30.81	1,451	239	1,690	120.55	0.054	2,000
TANAGER	1,033.5	523.68	14.51	538.19	36/4.30	1/4.30	30.12	1,443	96	1,539	93.52	0.0545	2,000
CURLEW	1,033.5	523.68	67.87	591.55	54/3.52	7/3.52	31.68	1,451	449	1,900	155.16	0.053	2,000
BLUEJAY	1,113	563.93	39.03	602.96	45/4.00	7/2.66	31.98	1,563	258	1,821	129.88	0.0502	2,500
BUNTING	1,192.5	804.26	41.55	645.81	45/4.14	7/2.76	33.12	1,874	275	1,949	138.86	0.0468	2,500
GRACKLE	1,192.5	804.26	76.58	680.84	54/3.77	19/2.27	33.97	1,562	508	2,190	179	0.0462	2,000
BITTERN	1,272	644.51	44.52	689.03	45/4.27	7/2.85	34.17	1,785	295	2,080	148.34	0.0439	2,500
PHEASANT	1,272	644.51	81.86	726.19	54/3.90	19/2.34	35.1	1,795	541	2,336	188.43	0.0433	2,000
	1,272	644.51	17.87	662.38	36/4.78	1/4.78	33.42	1,777	118	1,895	113.94	0.0443	2,000
DIPPER	1.351.5	684.84	47.1	731.94	45/4.40	7/2.92	35.16	1,908	312	2,210	157.39	0.0413	2,000
MARTIN	1,351.5	684.84	86.71	771.55	54/4.02	19/2.41	36.17	1,906	575	2,481	200.13	0.0407	2,500
8080IINX	1,431	725.1	50.32	775.42	45/4.53	7/3.02	36.24	2,019	333	2,342	167.16	0.039	2,000
PLOVER	1,431	725.1	91.87	816.97	54/4.14	19/2.48	37.24	2,019	609	2,628	211.97	0.0385	2,500
NUTHATCH	1,510.5	765.35	52.90	818.25	45/4.65	7/3.10	37.20	2,120	350	2,470	176.19	0.0370	2,000
PARROT	1,510.5	765.35	96.84	862.19	54/4.25	19/2.55	38.25	2,131	642	2,773	223.59	0.0364	2,500
LAPWING	1,590	805.68	55.48	861.16	45/4.77	7/3.18	38.16	2,232	367	2,599	185.24	0.0351	2,000
FALCON	1,590	805.68	102.13	907.81	54/4.36	19/2.62	39.26	2,243	677	2,920	235.58	0.0345	2,000
GROUSE	80.0	40.54	14.13	54.67	8/2.54	1/4.242	9.32	111	93	204	21.70	0.6358	2,500
PETREL	101.8	51.58	30.08	81.66	12/2.339	7/2.339	11.70	141	201	342	44.00	0.4687	2,000
MINORCA	110.8	56.14	32.76	88.90	12/2.441	7/2.441	12.20	154	219	373	47.92	0.4306	2,000
LEGHORN	134.6	62.80	39.78	102.58	12/2.69	7/2.69	13.45	187	266	453	57.80	0.3535	2,000
GUINEA	159.0	80.57	47.00	127.57	12/2.924	7/2.924	14.62	221	314	535	67.98	0.3000	2,000
DOTTEREL	176.9	89.64	52.29	141.93	12/3.084	7/3.084	15.42	246	349	595	75.20	0.2697	3,500
DORKING	190.8	96.68	56.4	153.08	12/3.203	7/3.203	16.01	265	377	642	81.11	0.2500	3,000
BRAHMA	203.2	103.00	91.93	194.93	16/2.863 12/3.371	19/2.482 7/3.371	18.13	283	617	900	120.46 88.06	0.2160	2,500
COCHIN	211.3	107.1	62.47	169.67	16/2.863 12/3.371	19/2.482 7/3.371	16.85	294	417	711	120.46 88.06	0.2257	3,000

hard drawn conductors IEC Standard customizable electrical conductivity Bare Conductors

IEC Standard Hard Drawn Bare Conductors with Customizable Options ASTM B232

ABOUT US

QUICK LINKS

PRODUCTS

CONTACT US
