MV outdoor vacuum recloser
Single and Three phase recloser
Up to 38 kV, 25 kA and 1250 A for Outdoor
Pole mount or Substation installation
Reliability and Overcurrent Protection
Comply with IEC/ANSI standards
Provided customized manufacture
Whole solutions for design, assembly, test...
Accountable solution for safety and reliability
Wide range offering, easy business and convenient installation
Service environment
Air temperature:
Humidity:
Above sea level:
Maximum temperature: +85℃;
Minimum temperature: -45℃
Monthly average humidity 95%;
Daily average humidity 90%.
Maximum installation altitude: 2500m or higher.
Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. No frequent violent shake
1. Single phase recloser is only suitable for magnetic actuator
Note: 2. Magnetic actuator cannot be closed manually if necessary, add ‘C’
3. Silicone rubber pole cannot be filled with gas
N | Item | Unit | Data | ||||
1 | Rated maximum voltage | kV | 15 | 27 | 38 | ||
2 | Rated maximum current | A | 400/630/800/1250 | ||||
3 | Rated frequency | Hz | 50/60 | ||||
4 | Rated short circuit breaking current | kA | 12.5/16/20/25* | ||||
5 | Rated peak value withstand current | kA | 31.5/40/50/63* | ||||
6 | Rated 1min power frequency withstand voltage (Dry/Wet) | kV | E | 28/36 | 60 | 70 | |
F | 36/50 | 65 | 85 | ||||
G | 45/55 | 70 | 90 | ||||
7 | Rated lightning impulse voltage | kV | E | 95 | 125 | 170 | |
F | 110 | 140 | 185 | ||||
G | 120 | 150 | 195 | ||||
8 | Operation sequence | s | N | C-0.3-CO-180-CO | |||
M | C-0.5-CO-2-CO-5-CO | ||||||
9 | Mechanical life | n | N | 10000 | |||
M | 30000 | ||||||
10 | Power supply and operating voltage | V | 110/220, Customized | ||||
11 | Ratio of current transformer | A | 400/1, Customized | ||||
12 | Number of voltage sensors | n | E | ≤3 | |||
F | ≤6 | ||||||
13 | Opening time | ms | N | ≤50 | |||
M | ≤30 | ||||||
14 | Closing time | ms | N | ≤60 | |||
M | ≤40 | ||||||
15 | Minimum creepage distance | mm/kV | 31, Level 4 | ||||
16 | Minimum distance between phases | mm | 360 | 380 | 435 | ||
17 | Potential transformer | V | 110/220, Customized | ||||
18 | Cable length | m | 6, 8, 12, Customized | ||||
19 | Cable clamp | E | 2-hole NEMA | ||||
F | 4-hole NEMA | ||||||
20 | Lightning arrester | n | ≤6 | ||||
21 | Mounting type | Single / double column | |||||
N | Item | Unit | Data | |||
1 | Rated maximum voltage | kV | 8.6 | 15.6 | 21.9 | |
2 | Rated maximum current | A | 400/630/800/1250 | |||
3 | Rated frequency | Hz | 50/60 | |||
4 | Rated short circuit breaking current | kA | 12.5/16/20/25* | |||
5 | Rated peak value withstand current | kA | 31.5/40/50/63* | |||
6 | Rated 1min power frequency withstand voltage (Dry/Wet) | kV | E | 28/36 | 60 | 70 |
F | 36/50 | 65 | 85 | |||
G | 45/55 | 70 | 90 | |||
7 | Rated lightning impulse voltage | kV | E | 95 | 125 | 170 |
F | 110 | 140 | 185 | |||
G | 120 | 150 | 195 | |||
8 | Operation sequence | s | M | C-0.5-CO-2-CO-5-CO | ||
9 | Mechanical life | n | M | 30000 | ||
10 | Power supply and operating voltage | V | 110/220, Customized | |||
11 | Ratio of current transformer | A | 400/1, Customized | |||
12 | Number of voltage sensors | n | E | ≤1 | ||
F | ≤2 | |||||
13 | Opening time | ms | M | ≤20 | ||
14 | Closing time | ms | M | ≤30 | ||
15 | Minimum creepage distance | mm/kV | 31, Level 4 | |||
17 | Potential transformer | V | 110/220, Customized | |||
18 | Cable length | m | 6, 8, 12, Customized | |||
19 | Cable clamp | E | 2-hole NEMA | |||
F | 4-hole NEMA | |||||
20 | Lightning arrester | n | ≤2 | |||
21 | Mounting type | Single / double column | ||||
22 | 3-phase combination | provide | ||||

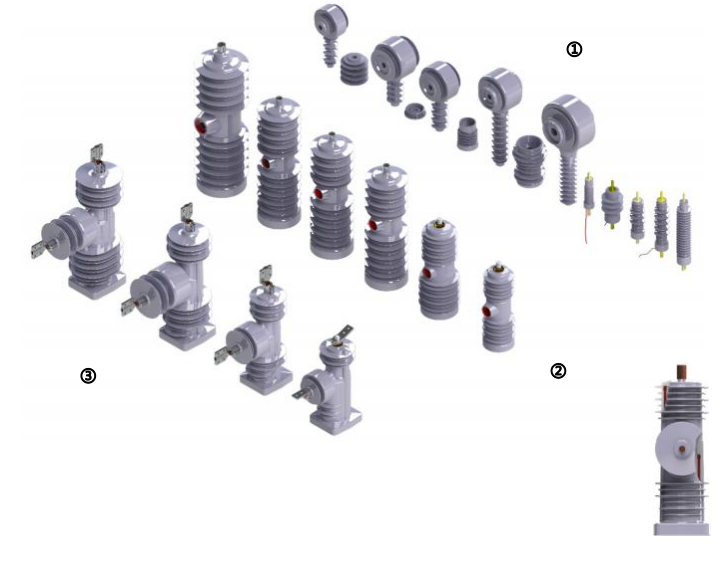

Epoxy resin pole:
Adopt the APG technology,
Increasing the whole insulation and weathering performance
Primacy incomer terminal directly connect to interrupter reduce power lost
Integrated design easy for quality control and maintenance
It’s equipped with two voltage -sensors, one for measuring the voltage of incoming side, and another one for measuring the voltage of outgoing side.
Silicone rubber pole:
Combined pole, More flexible collocation, Economic.
External modular design,
The recloser’s vacuum interrupter insert in an epoxy resin solid pole, and external coated with a high reliable, stable material:
Fluorocarbon silicone rubber (γ -trifluoro propyl methyl polysiloxane)
With excellent electric insulation, weather resistance, ozone, biological inertia,
CT, VS, KKG, insulated tension pole (Ultra high precision)
CT: Accuracy: ±0.5% Ratio:200/400/800 -1 Capacity:1.5VA/2.5VA/5VA VS: Shielded 4 -conductor cable connection, Accuracy: ± 1%, Ratio: 1000/1 insulated tension pole: AFRP & Titanium alloy

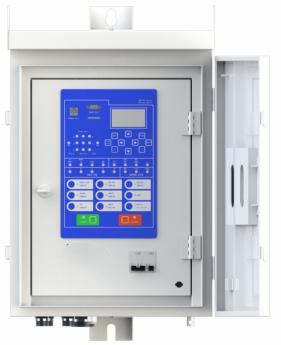

Controller
Flagship controller Economical controller
With optional relay protection& logics for user choice:
+Instantaneous over -current protection.
+Timing over -current protection
+Negative sequence over -current protection.
+Directional over -current protection(*).
+Over -voltage protection./Under voltage protection.
+Programable protection relay curves total 10 nos ANSI/IEC curves.
+Cold load pickup protection TCC +Hot line tag
+Earth protection EF/SEF +Zone Sequence Co -ordination
+More relay functions can be customized.
With optional communication protocols & I/O port for user choice:
RS -232 and RS -485 ports supporting.
DNP3.0 communication protocol support(*).
Modbus communication protocol is optional(*).
IEC 60870 -5 -101 communication protocol support.
IEC 60870 -5 -104 communication protocol support.(*).
The recloser can communicate through GPRS(Or GSM) modem with English or Specified language (*). With optional functions for user.
Rated currents, System phase current.
Rated voltages, System phase voltage& secondary low voltage power supply voltage. Frequency, power(kWh), reactive power(kV arh), power factor .
With optional reclosing interval for user pre -program:
Reclosing times setting support.
Dead time setting support.
With events recording function:
SOE 10000 operations record.
Fault record and normal operation record.
Note: (*) mean should customized by manufacturer if needed.
