High Voltage Cable Accessories:

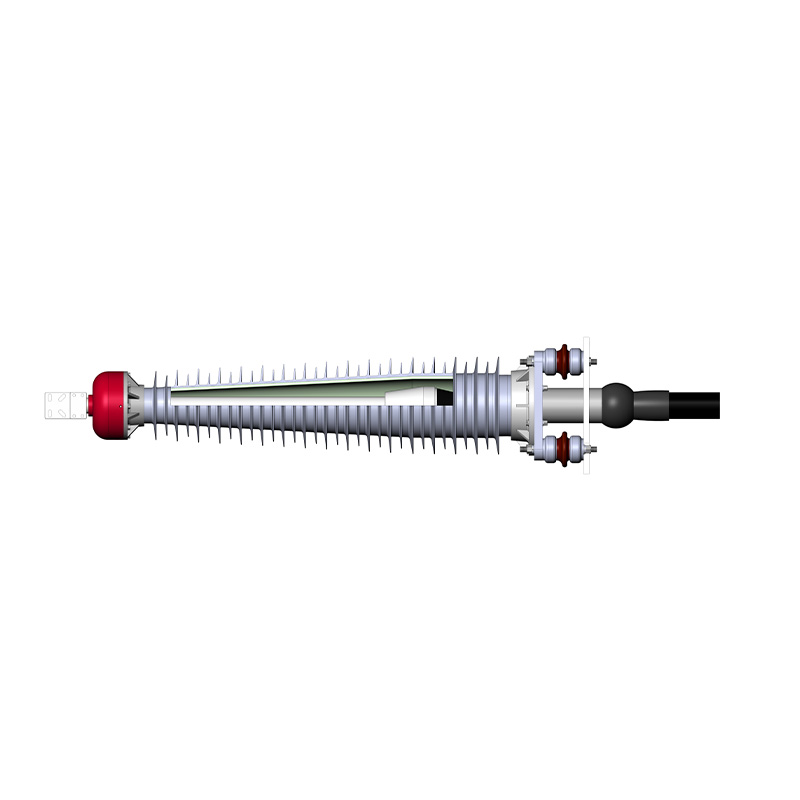

66kV-500kV Composite Bushing Outdoor Termination:
Our company produce two main series of composite bushing outdoor termination, 4E-YJZWCF3 and 4E-YJZWCF4, which are widely used for outdoor high-voltage overhead lines and cable connections with antifouling grade of grade III, and grade IV. They are composed of termination, stress cone, composite casting bushing, and tail tube. We use imported liquid silicone rubber injection molding to make stress cone, which has long-term stability of lasting hold power and electric field uniform ability. Composite casting bushing is using skirt structure with high strength epoxy fiberglass insulation tubes coated with silicone rubber. The composite casting bushing is filled with insulating oil with excellent electrical insulation properties, and the mutual dissolution or pentration is as low as 1/1000 between silastic stress cone to ensure the long-term safe operation of the product. Our product is using multiple sealing structure which can effectively prevent the leakage of water immersion and insulating oil. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material are stainless steel with good waterproof seal performance.
Composite bushing outdoor termination not only has all the advantages of the porcelain bushing, but also have the following superior performance:
Mechanical: mechanical strength of the inner layer is epoxy fiberglass which is better than porcelain bushing, with better mechanical performance.
Explode proof: silastic skirt layer covering outer is soft, effectively avoid or greatly reduce the damage after an explosion caused by personal or adjacent equipment, with better security than the porcelain bushing in densely populated areas.
Transportation: the weight of composite casting bushing is less than 1/5 of porcelain bushing weight. The excellent mechanical strength inner and soft outer layer is more compression resistance to collapse, effectively reducing the transportation and installation cost.
Weather resistance: silicon rubber outer layer has excellent weather resistance, stain-resistance self-cleaning ability, UV and aging resistance. IEC60815 clearly shows that the porcelain bushing creepage distance is only 17mm/kv, slightly higher than the level of anti-I, while the silastic creepage distance is up to 25mm/kv, reach the level of anti-III.
Cleaning free: silicone rubber has excellent water repellency with good self-cleaning ability, basic free blackout manual cleaning ( porcelain blackout cleaning rate is generally once a year), greatly reduce the maintenance costs.
The voltage level of the cable cable supporting section are as follows:
48/66kV～56/77kV 150~1400mm²；
64/110kV～76/138kV 240~1600mm²；
127/220kV～290/500kV 400~3000mm²；
66kV-500kV Porcelain Bushing Outdoor Termination:
Our company produce two main series of porcelain bushing outdoor termination, 4E-YJZWC3 and 4E-YJZWC4, which are widely used for outdoor high-voltage overhead lines and cable connections with antifouling grade of grade III, and grade IV. They are composed of termination, stress cone, porcelain bushing, and tail tube. We use imported liquid silicone rubber injection molding to make stress cone, which has long-term stability of lasting hold power and electric field uniform ability. Porcelain bushing is using high strength inorganic electric porcelain with stable performance. Porcelain bushing is using skirt structure, the overall is conical with good antifouling flash, weather resistance, anti-leakage marks, anti-erosion and water repellent ability. The porcelain is filled with insulating oil with excellent electrical insulation properties, and the mutual dissolution or pentration is as low as 1/1000 between silastic stress cone to ensure the long-term safe operation of the product. Our product is using multiple sealing structure which can effectively prevent the leakage of water immersion and insulating oil. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material are stainless steel with good waterproof seal performance.
Porcelain bushing have a long run safe operation history more than one hundred years in the power industry, which is the best example of a mature use.
The voltage level of the cable cable supporting section are as follows:
48/66kV～56/77kV 150~1400mm²；
64/110kV～76/138kV 240~1600mm²；
127/220kV～290/500kV 400~3000mm²；

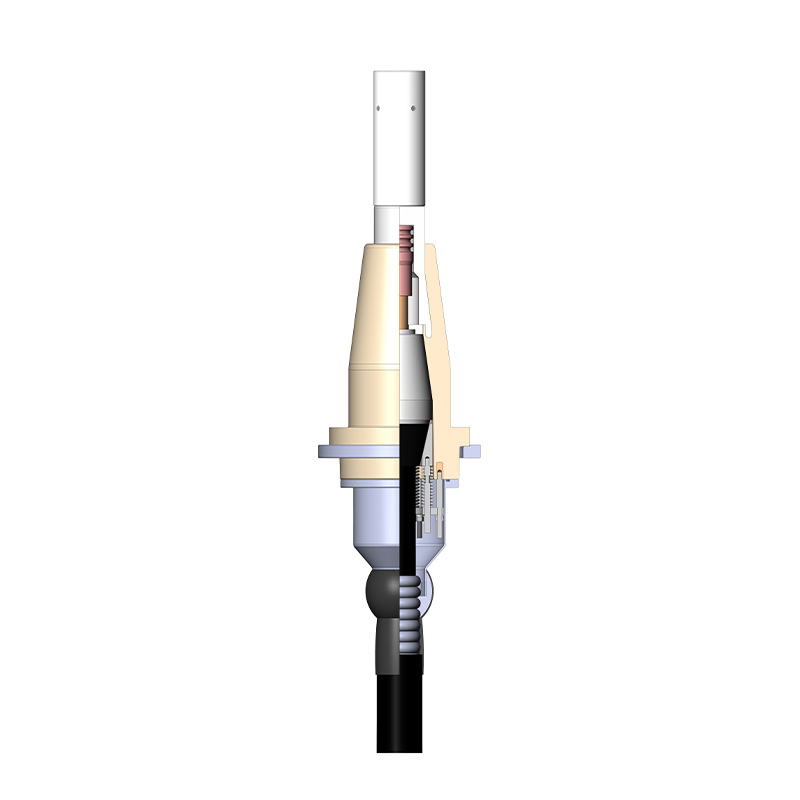

66kV-500kV Pluggable Type GIS Termination:
Our company produce two main 4E-YJZGGC plug dry GIS termination, 4E-YJZGGCD short plug dry GIS termination and 4E-YJZGGCC long plug dry GIS termination, widely used for GIS electrical equipment and cable connections. They are composed of outer power, epoxy casting, prefabricated stress cone, cone prop, and tail tube. The main body of prefabricated soft silicone rubber is using imported liquid silicone rubber injection rubber molding soft dry structure, which has long-term stability of lasting hold power and electric field uniform ability. Epoxy is using epoxy resin vacuum casting molding, cone roof tight plug-dry structure. There’s no need to fill insulating gas or oil, effectively ensure the long-term safe operation of the product. Our product is using multiple sealing structure which can effectively prevent the leakage of water immersion. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material are stainless steel with good waterproof seal performance.
Our products meet the standards of IEC60859 (1999), IEC62271-209 (2007) in accordance with GIS electrical equipment. There are a little difference between the two standards, if users does not require in writing, generally based on the standard of IEC62271-209.
The voltage level of the cable cable supporting section are as follows:
48/66kV～56/77kV 150~1400mm²；
64/110kV～76/138kV 240~1600mm²；
127/220kV～290/500kV 400~3000mm²
Main structure features:
Advanced structure: fully sealed plug dry-type structure, can firstly send epoxy casting and plugging to the GIS equipment factory and pre-installed it in the GIS equipment.
Easy installation: the length of plug-in structure of the cable is less than 300mm, dry-type with oil-free and gas free, greatly reducing the labor.

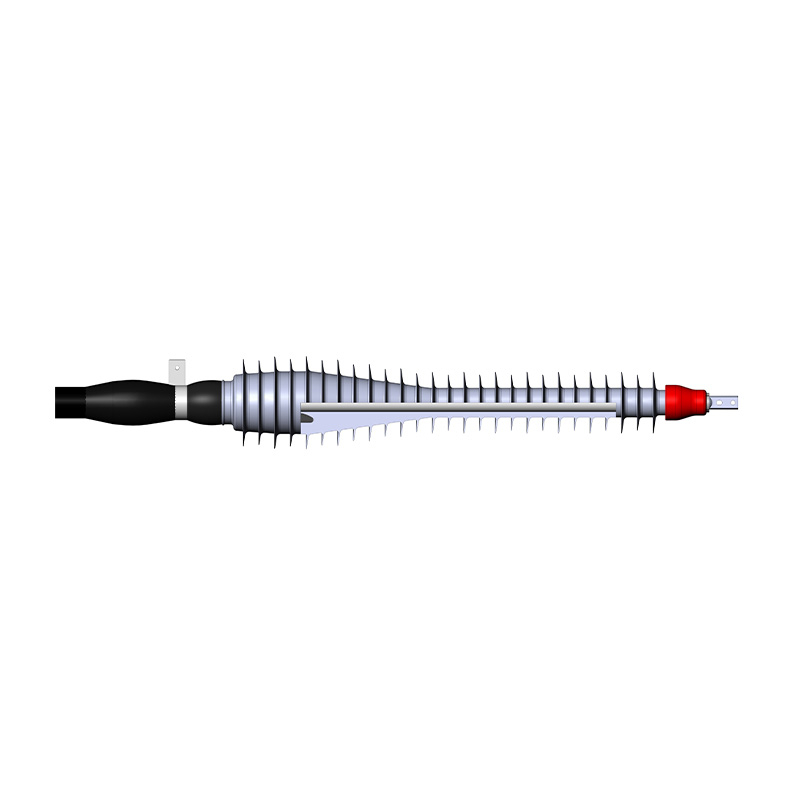

66kV-138kV Soft Dry Type Outdoor Termination:
Our company produce 4E-YJZWRG two main soft dry outdoor termination 4E-YJZWRG3 and 4E-YJZWRG4, which are widely used for outdoor high-voltage overhead lines and cable connections with antifouling grade of grade III, and grade IV. They are composed of termination, main body of all prefabricated soft silicone rubber（stress cone included）, and tail tube. The main body of prefabricated soft silicone rubber is using imported liquid silicone rubber injection rubber molding soft dry structure, which has long-term stability of lasting hold power and electric field uniform ability. The overall shape of casting is conical structure of the flow line with good antifouling flash, weather resistance, anti-leakage marks, anti-erosion and water repellent ability. There’s no need to fill insulating gas or oil, effectively ensure the long-term safe operation of the product. Our product is using multiple sealing structure which can effectively prevent the leakage of water immersion and insulating oil. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material are stainless steel with good waterproof seal performance.
However, due to the lack of sufficient rigidity, should not be installed in wind areas.
The voltage level of the cable cable supporting section are as follows:
48/66kV～56/77kV 150~1400mm²；
64/110kV～76/138kV 240~1600mm²；
Soft dry outdoor termination not only has all the advantages of rigid dry outdoor termination, but also have the following superior performance:
More lighter in weight, the whole weight of main body of all prefabricated soft silicone rubber is less than 30kg.
Easy installation, due to the lighter in weight, it can be installed on the ground and then lifted into place. There’s no need to build aerial installation platform, greatly reducing the labor.
Products are particularly suitable for indoor installation, the best choice for indoor termination.

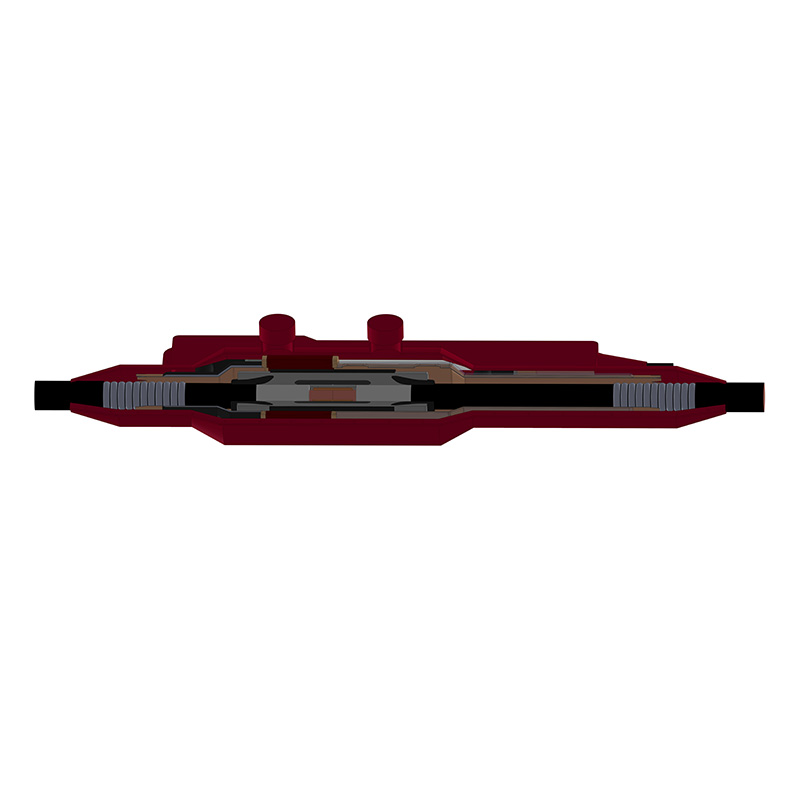

66kV-500kV Fully Prefabricated Silicone Rubber Insulated Straight Through/ Insulating Joint:
Our company produce two main 4E-YJJTI,YJJJI all prefabricated silicone rubber insulated straight through/insulated joints, 4E-YJJTI and 4E-YJJJI, applied to connection between the two identical section or similar section of the cable. They are composed of prefabricated insulating body ( stress cone included), metal protective shell, and fiberglass outer protective shell. The main body of prefabricated soft silicone rubber is using imported liquid silicone rubber injection rubber molding soft dry structure, which has long-term stability of lasting hold power and electric field uniform ability. Metal protective shell ring is composed with two different lengths of metal tail tube and insulating tuber, filled with insulating sealant inside, and covered with sealing insulation.
Main structure features:
Compact structure: silicone rubber parts is using all prefabricated rubber insulator with small size compact structure, straight through and insulating joints share the same preform.
Easy installation: using advanced dual installation, one machine to expand, another shrink in connection cable, greatly improved installation efficiency, reducing the labor.
For different work environment and users’ specified requirement, metal protective shell and fiberglass outer shell is optional. Without water damage, mechanical damage, or corrosion, outer metal protective shell and fiberglass free is better for heart dissipation of the product to ensure a long life.
The voltage level of the cable cable supporting section are as follows:
48/66kV～56/77kV 150~1400mm²；
64/110kV～76/138kV 240~1600mm²；
127/220kV～290/500kV 400~3000mm²
Earthing Box:
4E-JDX grounding box, 4E-JDBX grounding protective box:
This product is applied to high voltage single core power cable metal protective shell directly connect to the ground.
Main structure features:
The shell is composed of high-strength 304 stainless steel, with insulation paint internal.
The conductive is siliver-plated, reducing contact resistance.
Using stainless steel bolts to fasten the termination of the conductive plate or shell protector, lid and the box body, there’s no need to repair or maintain.
Quick and easy to replace shell protector.
Applied to single-core grounding cable.
Single-phase, protective box with the counter can be customized according to user’s requirements.
4E-JCHX interconnected box:
This product is applied to high voltage single core power cable metal protective shell cross-connects. According to cross transposition, impact overvoltage on the metal shell and both sides of insulation joint, and metal shell induced voltage neutralization, the annular current on the metal cable protector shell is reduced or eliminated, therefore reducing power loss, improving the transmission capacity, prevent from breakdown of the cable protector shell to ensure the safety operation.
Main structure features:
The shell is composed of high-strength 304 stainless steel, with insulation paint internal.
The conductive is siliver-plated, reducing contact resistance.
Using stainless steel bolts to fasten the termination of the conductive plate or shell protector, lid and the box body, there’s no need to repair or maintain.
Quick and easy to replace shell protector.
Applied to coaxial cable.
