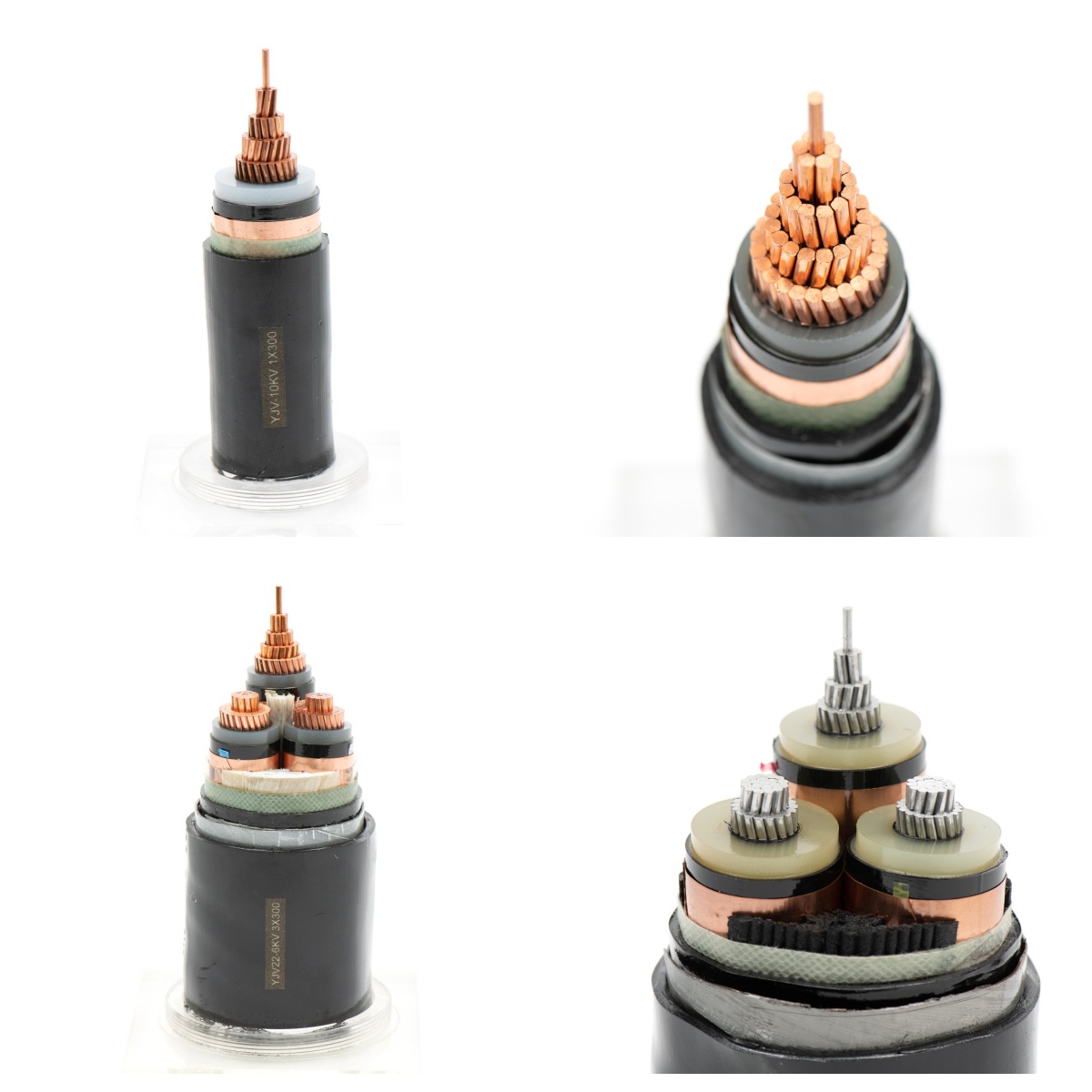

High Capacity 3.6/6kV Single Core Power Cable with Copper Conductor and XLPE Insulation for Overhead Applications

5 0 Reviews

Quantity:
Availability:





Inquire Add to Basket

Product Description

1.8/3(3.6)kV,XLPE Insulated Tape Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/ATA/PVC or AL/XLPE/ATA/PVC (Table 17)

Conductor Nominal Area	Inulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Inulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
10	2.0	1.2	0.5	1.8	18	390	330	500
16	2.0	1.2	0.5	1.8	19	460	360	500
25	2.0	1.2	0.5	1.8	20	580	420	500
35	2.0	1.2	0.5	1.8	21	700	480	500
50	2.0	1.2	0.5	1.8	23	840	550	500
70	2.0	1.2	0.5	1.8	24	1,080	650	500
95	2.0	1.2	0.5	1.8	26	1,360	770	500
120	2.0	1.2	0.5	1.8	28	1,620	880	500
150	2.0	1.2	0.5	1.8	29	1,920	990	500
185	2.0	1.2	0.5	1.9	31	2,300	1,150	500
240	2.0	1.2	0.5	1.9	33	2,890	1,380	500
300	2.0	1.2	0.5	2.0	36	3,510	1,610	500
400	2.0	1.2	0.5	2.1	37	4,380	1,950	500
d
630	2.4	1.3	0.5	2.4	47	7,000	2,970	500

Three-core,CU/XLPE/STA/PVC or AL/XLPE/STA/PVC (Table 18)

Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
10	2.0	1.2	0.5	1.8	28	910	720	500
16	2.0	1.2	0.5	1.9	29	1,120	820	500
25	2.0	1.2	0.5	1.9	32	1,480	1,000	500
35	2.0	1.2	0.5	2.0	35	1,840	1,170	500
50	2.0	1.2	0.5	2.1	38	1,300	1,410	500
70	2.0	1.2	0.5	2.2	43	3,390	2,100	500
95	2.0	1.2	0.5	2.3	46	4,330	2,530	500
120	2.0	1.3	0.5	2.4	50	5,180	2,910	500
150	2.0	1.4	0.5	2.6	54	6,180	3,370	500
185	2.0	1.4	0.5	2.7	57	7,120	3,920	500
240	2.0	1.5	0.5	2.8	63	9,350	4,750	400
300	2.0	1.6	0.5	3.0	68	11,340	5,550	300
400	2.0	1.8	0.5	3.3	76	14,220	6,830	300
500	2.2	1.9	0.5	3.5	84	17,850	8,380	250

3.6/6(7.2)kV,XLPE Insulated Unarmored PVC Sheathed Power Cable

Single-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 19)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
10	2.5	1.8	15	320	260	500
16	2.5	1.8	18	390	290	500
25	2.5	1.8	20	500	340	500
35	2.5	1.8	21	610	400	500
50	2.5	1.8	22	750	450	500
70	2.5	1.8	24	970	550	500
95	2.5	1.8	25	1,250	660	500
120	2.5	1.8	27	1,500	760	500
150	2.5	1.8	28	1,790	860	500
185	2.5	1.9	30	2,150	1,000	500
240	2.6	1.9	33	2,770	1,250	500
300	2.8	2.0	35	3,400	1,500	500
400	3.0	2.1	39	4,280	1.850	500
500	3.2	2.2	43	5,400	2,280	500
630	3.2	2.4	47	6,830	2,800	500
800	3.2	2.5	51	8,570	3,400	400
1,000	3.2	2.6	56	10,590	4,110	300

Three-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 20)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
10	2.5	1.9	33	980	790	500
16	2.5	2.0	35	1,190	890	500
25	2.5	2.1	38	1,560	1,080	500
35	2.5	2.2	40	1,930	1,270	500
50	2.5	2.3	43	2,370	1,480	500
70	2.5	2.4	47	3,110	1,820	500
95	2.5	2.5	51	4,000	2,200	500
120	2.5	2.6	54	4,820	2,550	500
150	2.5	2.7	58	5,770	2,970	500
185	2.5	2.8	61	6,960	3,460	500
240	2.6	3.0	68	8,940	4,340	400
300	2.8	3.2	73	10,980	5,190	300
400	3.0	3.5	81	13,820	6,440	250
500	3.2	3.7	90	17,390	7,910	200

3.6/6(7.2)kV,XLPE Insulated Wire Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/AWA/PVC orAL/XLPE/AWA/PVC (Table 21)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
10	2.5	1.2	0.9	1.8	22	610	550	500
16	2.5	1.2	1.6	1.8	24	680	580	500
25	2.5	1.2	1.6	1.8	25	810	660	500
35	2.5	1.2	1.6	1.8	26	940	730	500
50	2.5	1.2	1.6	1.8	27	1,100	810	500
70	2.5	1.2	1.6	1.8	29	1,350	930	500
95	2.5	1.2	1.6	1.9	31	1,670	1,080	500
120	2.5	1.2	1.6	1.9	32	1,950	1,200	500
150	2.5	1.2	1.6	2.0	34	2,270	1,350	500
185	2.5	1.2	2.0	2.1	37	2,770	1,620	500
240	2.6	1.2	2.0	2.2	40	3,440	1,930	500
300	2.8	1.2	2.0	2.2	42	4,120	2,210	500
400	3.0	1.3	2.5	2.4	47	5,250	2,820	500
500	3.2	1.3	2.5	2.5	51	6,450	3,340	500
630	3.2	1.4	2.5	2.6	55	7,990	3,950	400

Three-core,CU/XLPE/SWA/PVC or AL/XLPE/SWA/PVC (Table 22)

Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
10	2.5	1.2	2.0	2.1	40	2,310	2,120	500
16	2.5	1.2	2.0	2.2	42	2,600	2,290	500
25	2.5	1.2	2.0	2.3	45	3,080	2,600	500
35	2.5	1.3	2.5	2.4	48	3,950	3,280	500
50	2.5	1.3	2.5	2.5	54	4,530	3,630	500
70	2.5	1.4	2.5	2.6	55	5,510	4,210	500
95	2.5	1.5	2.5	2.8	59	6,660	4,860	500
120	2.5	1.5	2.5	2.9	63	7,630	5,360	400
150	2.5	1.6	2.5	3.0	66	8,800	6,000	400
185	2.5	1.7	3.15	3.2	72	11,500	6,670	300
240	2.6	1.8	3.15	3.4	78	13,480	8,870	250
300	2.8	1.9	3.15	3.6	84	15,920	10,130	200
400	3.0	2.0	4.0	3.9	94	21,300	12,590	200
500	3.2	2.1	4.0	4.1	103	25,090	15,610	200

3.6/6(7.2)kV,XLPE Insulated Tape Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/ATA/PVCor AL/XLPE/ATA/PVC (Table 23)

Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
10	2.5	1.2	0.5	1.8	22	530	460	500
16	2.5	1.2	0.5	1.8	23	600	500	500
25	2.5	1.2	0.5	1.8	24	730	570	500
35	2.5	1.2	0.5	1.8	25	850	630	500
50	2.5	1.2	0.5	1.8	26	1,000	700	500
70	2.5	1.2	0.5	1.8	28	1,240	820	500
95	2.5	1.2	0.5	1.8	30	1,540	950	500
120	2.5	1.2	0.5	1.8	31	1,820	1,080	500
150	2.5	1.2	0.5	1.9	33	2,120	1,200	500
185	2.5	1.2	0.5	1.9	35	2,520	1,370	500
240	2.6	1.2	0.5	2.0	37	3,180	1,670	500
300	2.8	1.2	0.5	2.1	40	3,850	1,950	500
400	3.0	1.3	0.5	2.3	44	4,800	2,370	500
500	3.2	1.3	0.5	2.4	48	5,960	2,840	500
630	3.2	1.4	0.5	2.5	52	7,450	3,410	600

Three-core,CU/XLPE/STA/PVCor AL/XLPE/STA/PVC (Table 24)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
10	2.5	1.2	0.2	2.0	37	1,330	1,140	500
16	2.5	1.2	0.5	2.1	40	1,580	1,580	500
25	2.5	1.2	0.5	2.2	42	2,310	1,880	500
35	2.5	1.3	0.5	2.3	45	2,760	2,090	500
50	2.5	1.3	0.5	2.4	48	3,260	2,360	500
70	2.5	1.4	0.5	2.5	52	4,100	2,810	500
95	2.5	1.5	0.5	2.7	56	5,110	3,310	500
120	2.5	1.5	0.5	2.8	60	5,010	3,750	400
150	2.5	1.6	0.5	2.9	63	7,050	4,250	400
185	2.5	1.7	0.5	3.0	67	9,320	4,820	400
240	2.6	1.8	0.5	3.2	73	10,530	5,920	300
300	2.8	1.9	0.5	3.4	79	12,730	6,940	300
400	3.0	2.0	0.8	3.7	89	16,620	9,240	200
500	3.2	2.1	0.8	4.0	98	20,550	11,070	200

6~30kV XLPE Insulated Power Cables

This product uses the Finland Nextrom(NOKIA)three layer co-extrusion production line for manufacturing chemical cross-linking.
It is suitable for fixed laying of Medium voltage line.
The performance of cables accords with the stipulate of IEC 60502.

Specification of Products

Model		Name
CU/XLPE/PVC	AL/XLPE/PVC	Copper or Aluminum Conductor XLPE Insulated and PVC Sheathed Power Cable
CU/XLPE/PE	AL/XLPE/PE	Copper or Aluminum Conductor XLPE Insulated and PE Sheathed Power Cable
CU/XLPE/STA/PVC	AL/XLPE/STA/PVC	Copper or Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
CU/XLPE/STA/PE	AL/XLPE/STA/PE	Copper or Aluminum Conductor XLPE Insulated Steel Tape Armored PE Sheathed Power Cable
CU/XLPE/SWA/PVC	AL/XLPE/SWA/PVC	Copper or Aluminum Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable
CU/XLPE/SWA/PE	AL/XLPE/SWA/PE	Copper or Aluminum Conductor XLPE Insulated Steel Wire rmored PE Sheathed Power Cable
CU/XLPE/CWL/PE	AL/XLPE/CWL/PE	Copper or Aluminum Conductor XLPE Insulated Comprehensive Waterproof Layer Power Cable

Range of Application

Model		Range of Application
CU/XLPE/PVC	AL/XLPE/PVC	It is suitable for laying indoors and outdoors,must be fixed on a bracket in a tunnel, and can be worn through a concrete pipe or laid in a cable ditch and buried directly in loose soil. The cable cannot withstand the pressure,but allows for a certain amount of radiation traction.
CU/XLPE/PE	AL/XLPE/PE
CU/XLPE/STA/PVC	AL/XLPE/STA/PVC	Buried in the ground, the cable can withstand some pressure, but can not withstand large tensile force.
CU/XLPE/STA/PE	AL/XLPE/STA/PE
CU/XLPE/SWA/PVC	AL/XLPE/SWA/PVC
CU/XLPE/SWA/PE	AL/XLPE/SWA/PE
CU/XLPE/CWL/PE	AL/XLPE/CWL/PE	It is used for the water resisting requirement of the outer layer of cables

East Energy

Electrical Engineering

6/6kV,6/10(12)kV,XLPE Insulated Unarmored PVC Sheathed Power Cable Single-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 25)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
16	3.4	1.8	20	450	350	500
25	3.4	1.8	21	560	400	500
35	3.4	1.8	22	680	460	500
50	3.4	1.8	24	810	520	500
70	3.4	1.8	25	1,050	620	500
95	3.4	1.8	27	1,320	730	500
120	3.4	1.8	28	1,580	840	500
150	3.4	1.9	30	1,880	960	500
185	3.4	1.9	32	2,250	1,100	500
240	3.4	2.0	34	2,870	1,350	500
300	3.4	2.1	37	3,490	1,580	500
400	3.4	2.2	40	4,350	1,920	500
500	3.4	2.3	44	5,440	2,320	500
630	3.4	2.4	48	6,860	2,830	500
800	3.4	2.5	52	8,600	3,430	400
1.000	3.4	2.6	56	10,630	4,150	300

Three-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 26)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx.Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
16	3.4	2.1	39	1,410	1,110	500
25	3.4	2.2	42	1,800	1,320	500
35	3.4	2.3	45	2,170	1,500	500
50	3.4	2.4	47	2,630	1,730	500
70	3.4	2.5	51	3,400	2,110	500
95	3.4	2.6	55	4,310	2,510	500
120	3.4	2.7	58	5,150	2,860	500
150	3.4	2.9	62	6,100	3,300	500
185	3.4	3.0	66	7,310	3,810	500
240	3.4	3.1	71	9,290	4,680	400
300	3.4	3.3	76	11,240	5,450	300
400	3.4	3.5	83	14,040	6,660	250
500	3.4	3.7	91	17,530	8,050	200

6/6kV,6/10(12)kV,XLPE Insulated Wire Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/AWA/PVC or AL/XLPE/AWA/PVC (Table 27)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
16	3.4	1.2	1.6	1.8	26	770	670	500
25	3.4	1.2	1.6	1.8	27	910	750	500
35	3.4	1.2	1.6	1.8	28	1,040	820	500
50	3.4	1.2	1.6	1.8	29	1,190	900	500
70	3.4	1.2	1.6	1.9	31	1,470	1,040	500
95	3.4	1.2	1.6	2.0	33	1,780	1,190	500
120	3.4	1.2	2.0	2.0	35	2,150	1,410	500
150	3.4	1.2	2.0	2.1	37	2,480	1,560	500
185	3.4	1.2	2.0	2.1	39	2,890	1,730	500
240	3.4	1.2	2.0	2.2	41	3,570	2,050	500
300	3.4	1.2	2.0	2.3	44	4,230	2,330	500
400	3.4	1.3	2.5	2.4	48	5,320	2,890	500
500	3.4	1.3	2.5	2.5	52	6,500	3,380	500
630	3.4	1.4	2.5	2.6	56	8,020	3,990	400

Three-core,CU/XLPE/SWA/PVC or AL/XLPE/SWA/PVC (Table 28)

Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
16	3.4	1.3	2.5	2.4	47	3,700	2,700	500
25	3.4	1.3	2.5	2.5	50	3,900	3,430	500
35	3.4	1.3	2.5	2.6	53	4,430	3,770	500
50	3.4	1.4	2.5	2.7	56	5,080	4,190	500
70	3.4	1.5	2.5	2.8	60	6,050	4,750	500
95	3.4	1.5	2.5	2.9	64	7,180	5,380	500
120	3.4	1.6	2.5	3.0	67	8,230	5,960	400
150	3.4	1.7	3.15	3.2	72	10,100	6,580	300
185	3.4	1.7	3.15	3.3	76	11,610	8,110	300
240	3.4	1.8	3.15	3.5	82	14,110	9,510	250
300	3.4	1.9	3.15	3.7	87	16,420	10,630	200
400	3.4	2.0	4.0	4.0	96	21,700	12,880	200
500	3.4	2.2	4.0	4.2	104	25,280	15,800	200

6/6kV,6/10(12)kV,XLPE Insulated Tape Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/ATA/PVC or AL/XLPE/ATA/PVC (Table 29)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
16	3.4	1.2	0.5	1.8	25	680	580	500
25	3.4	1.2	0.5	1.8	26	810	650	500
35	3.4	1.2	0.5	1.8	27	940	720	500
50	3.4	1.2	0.5	1.8	28	1,090	790	500
70	3.4	1.2	0.5	1.9	30	1,350	920	500
95	3.4	1.2	0.5	1.9	32	1,650	1,060	500
120	3.4	1.2	0.5	2.0	33	1,940	1,190	500
150	3.4	1.2	0.5	2.0	35	2,240	1,320	500
185	3.4	1.2	0.5	2.1	37	2,650	1,500	500
240	3.4	1.2	0.5	2.1	39	3,290	1,770	500
300	3.4	1.2	0.5	2.2	41	3,940	2,030	500
400	3.4	1.3	0.5	2.3	45	4,860	2,430	500
500	3.4	1.3	0.5	2.4	49	5,990	2,880	500
630	3.4	1.4	0.5	2.5	52	7,480	3,450	500

Three-core,CU/XLPE/STA/PVC or AL/XLPE/STA/PVC (Table 30)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
16	3.4	1.3	0.2	2.3	44	2,220	1,900	500
25	3.4	1.3	0.5	2.4	47	2,660	2,180	500
35	3.4	1.3	0.5	2.5	50	3,110	2,440	500
50	3.4	1.4	0.5	2.6	53	3,650	2,750	500
70	3.4	1.5	0.5	2.7	56	4,510	3,220	500
95	3.4	1.5	0.5	2.8	60	5,510	3,710	500
120	3.4	1.6	0.5	2.9	64	6,450	4,180	500
150	3.4	1.7	0.5	3.1	68	7,500	4,700	400
185	3.4	1.7	0.5	3.2	71	8,830	5,330	400
240	3.4	1.8	0.5	3.3	77	10,960	6,360	300
300	3.4	1.9	0.5	3.5	82	13,090	7,300	250
400	3.4	2.0	0.8	3.8	91	16,910	9,530	200
500	3.4	2.2	0.8	4.0	99	20,720	11,250	200

8.7/10kV,8.7/15(17.5)kV,XLPE Insulated Unarmored PVC Sheathed Power Cable

Single-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 31)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
25	4.5	1.8	24	640	480	500
35	4.5	1.8	25	760	540	500
50	4.5	1.8	26	900	610	500
70	4.5	1.8	28	1,140	710	500
95	4.5	1.8	29	1,420	830	500
120	4.5	1.9	31	1,700	950	500
150	4.5	1.9	32	1,990	1,070	500
185	4.5	2.0	34	2,380	1,230	500
240	4.5	2.1	37	3,010	1,490	500
300	4.5	2.1	39	3,620	1,720	500
400	4.5	2.2	42	4,490	2,070	500
500	4.5	2.3	46	5,600	2,480	500
630	4.5	2.5	50	7,050	3,010	500
800	4.5	2.6	54	8,800	3,630	400
1,000	4.5	2.7	58	10,850	4,370	300

Three-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 32)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
25	4.5	2.4	47	2,100	1,620	500
35	4.5	2.5	50	2,510	1,840	500
50	4.5	2.6	52	2,980	2,080	500
70	4.5	2.7	56	3,760	2,470	500
95	4.5	2.8	60	4,700	2,900	500
120	4.5	2.9	63	5,590	3,320	500
150	4.5	3.0	67	6,560	3,760	500
185	4.5	3.1	71	7,800	4,300	400
240	4.5	3.3	76	9,820	5,220	300
300	4.5	3.5	81	11,800	6,010	300
400	4.5	3.7	88	14,620	7,250	250
500	4.5	3.9	96	18,150	8,680	200

8 .7/10kV,8.7/15(17.5)kV,XLPE Insulated Wire Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/AWA/PVC orAL/XLPE/AWA/PVC (Table 33)

Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
25	4.5	1.2	1.6	1.8	29	1,020	860	500
35	4.5	1.2	1.6	1.9	30	1,170	950	500
50	4.5	1.2	1.6	1.9	32	1,340	1,040	500
70	4.5	1.2	1.6	2.0	34	1,640	1,190	500
95	4.5	1.2	2.0	2.1	36	2,020	1,430	500
120	4.5	1.2	2.0	2.1	38	2,310	1,570	500
150	4.5	1.2	2.0	2.2	39	2,660	1,740	500
185	4.5	1.2	2.0	2.2	41	3,070	1,920	500
240	4.5	1.2	2.0	2.3	44	3,750	2,240	500
300	4.5	1.3	2.5	2.4	47	4,590	2,690	500
400	4.5	1.3	2.5	2.5	50	5,550	3,120	500
500	4.5	1.4	2.5	2.6	51	6,750	3,640	500
630	4.5	1.4	2.5	2.7	58	8,280	4,240	400

Three-core,CU/XLPE/SWA/PVC or AL/XLPE/SWA/PVC (Table 34)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
25	4.5	1.4	2.5	2.7	55	4,560	4,080	500
35	4.5	1.4	2.5	2.8	58	5,080	4,410	500
50	4.5	1.5	2.5	2.9	61	5,740	4,840	500
70	4.5	1.6	2.5	3.0	65	6,770	5,480	500
95	4.5	1.6	2.5	3.1	69	7,890	6,100	400
120	4.5	1.7	3.15	3.2	74	10,900	6,700	400
150	4.5	1.8	3.15	3.4	77	11,030	8,220	300
185	4.5	1.8	3.15	3.5	81	12,490	8,980	250
240	4.5	1.9	4.0	3.7	89	17,500	10,440	250
300	4.5	2.0	4.0	3.9	94	20,100	12,130	200
400	4.5	2.1	4.0	4.1	101	23,600	13,970	200

8.7/10kV,8.7/15(17.5)kV,XLPE Insulated Tape Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/ATA/PVC or AL/XLPE/ATA/PVC (Table 35)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
25	4.5	1.2	0.5	1.8	28	910	760	500
35	4.5	1.2	0.5	1.8	29	1,050	830	500
50	4.5	1.2	0.5	1.9	30	1,210	920	500
70	4.5	1.2	0.5	1.9	32	1,470	1,050	500
95	4.5	1.2	0.5	2.0	34	1,790	1,200	500
120	4.5	1.2	0.5	2.0	35	2,070	1,320	500
150	4.5	1.2	0.5	2.1	37	2,400	1,470	500
185	4.5	1.2	0.5	2.1	39	2,800	1,640	500
240	4.5	1.2	0.5	2.2	41	3,460	1,940	500
300	4.5	1.3	0.5	2.3	44	4,160	2,230	500
400	4.5	1.3	0.5	2.4	47	5,050	2,620	500
500	4.5	1.4	0.5	2.5	51	6,220	3,100	500
630	4.5	1.4	0.5	2.6	55	7,710	3,670	500

Three-core,CU/XLPE/STA/PVC or AL/XLPE/STA/PVC (Table 36)

Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx. Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
25	4.5	1.4	0.5	2.6	52	3,120	2,640	500
35	4.5	1.4	0.5	2.6	55	3,570	2,900	500
50	4.5	1.5	0.5	2.7	58	4,120	3,220	500
70	4.5	1.6	0.5	2.9	62	5,050	3,750	500
95	4.5	1.6	0.5	3.0	66	6,070	4,270	500
120	4.5	1.7	0.5	3.1	69	7,040	4,770	500
150	4.5	1.8	0.5	3.2	73	8,120	5,310	400
185	4.5	1.8	0.5	3.3	77	9,440	5,940	300
240	4.5	1.9	0.5	3.5	83	11,660	7,050	300
300	4.5	2.0	0.8	3.7	89	14,600	8,810	250
400	4.5	2.1	0.8	4.0	96	17,760	10,370	200
500	4.5	2.3	0.8	4.2	105	21,620	12,150	200

12/20(24)kV,XLPE Insulated Unarmored PVC Sheathed Power Cable

Single-core,CU/XLPE/PVC or AL/XLPE/PVC (Table 37)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
35	5.5	1.8	27	840	620	500
50	5.5	1.8	28	990	690	500
70	5.5	1.9	30	1,230	800	500
95	5.5	1.9	31	1,530	940	500
120	5.5	2.0	33	1,810	1,060	500
150	5.5	2.0	35	2,110	1,190	500
185	5.5	2.1	36	2,510	1,360	500
240	5.5	2.1	39	3,130	1,610	500
300	5.5	2.2	41	3,760	1,860	500
400	5.5	2.3	44	4,650	2,220	500
500	5.5	2.4	48	5,760	2,650	500
630	5.5	2.5	52	7,210	3,180	500
800	5.5	2.6	56	8,980	3,800	400
1,000	5.5	2.8	61	11,060	4,580	300

Three-core,CU/XLPE/PVC or AL/XLPE/PVC

(Table 38)

Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	kg/km		m
35	5.5	2.6	54	2,850	2,080	500
50	5.5	2.7	57	3,340	2,450	500
70	5.5	2.9	61	4,150	2,850	500
95	5.5	3.0	65	5,110	3,310	500
120	5.5	3.1	68	5,990	3,730	500
150	5.5	3.2	72	6,980	4.180	500
185	5.5	3.3	75	8,240	4,740	400
240	5.5	3.5	81	10,310	5,700	300
300	5.5	3.6	86	12,350	6,570	300
400	5.5	3.8	93	15,220	7,830	200
500	5.5	4.1	101	18,800	9,320	200

12/20(24)kV,XLPE Insulated Wire Armored PVC Sheathed Power Cable

Single-core,CU/XLPE/AWA/PVC orAL/XLPE/AWA/PVC (Table 39)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
35	5.5	1.2	1.6	1.9	32	1,290	1,070	500
50	5.5	1.2	2.0	2.0	35	1,550	1,250	500
70	5.5	1.2	2.0	2.1	37	1,840	1,420	500
95	5.5	1.2	2.0	2.1	38	2,160	1,570	500
120	5.5	1.2	2.0	2.2	40	2,470	1,730	500
150	5.5	1.2	2.0	2.2	41	2,810	1,890	500
185	5.5	1.2	2.0	2.3	43	3,240	2,090	500
240	5.5	1.3	2.5	2.4	47	4,100	2,580	500
300	5.5	1.3	2.5	2.5	49	4,800	2,890	500
400	5.5	1.4	2.5	2.6	53	5,780	3,350	500
500	5.5	1.4	2.5	2.7	57	6,970	3,850	500
630	5.5	1.5	2.5	2.8	60	8,540	4,500	400

Three-core,CU/XLPE/SWA/PVCorAL/XLPE/SWA/PVC (Table 40)

Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight		Standard Length Per Drum
Conductor Nominal Area	Insulation Thickness	Approx.Inner Covering Thickness	Armor Wire Size	Outer Sheath Thickness	Approx. Overall Diameter	Copper	Aluminum	Standard Length Per Drum
mm²	mm	mm	mm	mm	mm	kg/km		m
35	5.5	1.5	2.5	2.9	63	5,680	5,010	500
50	5.5	1.6	2.5	3.0	66	6,370	5,480	500
70	5.5	1.7	2.5	3.1	70	7,370	6,070	400
95	5.5	1.7	3.15	3.3	75	9,400	7,600	300
120	5.5	1.8	3.15	3.4	79	10,530	8,270	300
150	5.5	1.8	3.15	3.5	82	11,740	8,940	300
185	5.5	1.9	3.15	3.7	86	13,350	9,850	250
240	5.5	2.0	4.0	3.9	94	18,000	11,820	200
300	5.5	2.1	4.0	4.0	99	20,500	13,080	200
400	5.5	2.2	4.0	4.3	106	23,310	15,930	200

high capacity Single core overhead power Copper Conductor durable insulation

High Capacity 3.6/6kV Single Core Power Cable with Copper Conductor and XLPE Insulation for Overhead Applications

ABOUT US

QUICK LINKS

PRODUCTS

CONTACT US

Related Products
