Forged Steel Eyenut, Eye Bolts, Galvanized Thimble Eye Nut for Linking Pole Line Hardware

5 0 Reviews

The Ball Clevis is made of hot-dip galvainzed steel.

The sizes can be designed according to requirements.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Ball eyes are used to attach ball and socket insulators to other associated hardware.
The use of the ball oval eye and an anchor shackle is one of the most common distribution
tower attachment combinations.

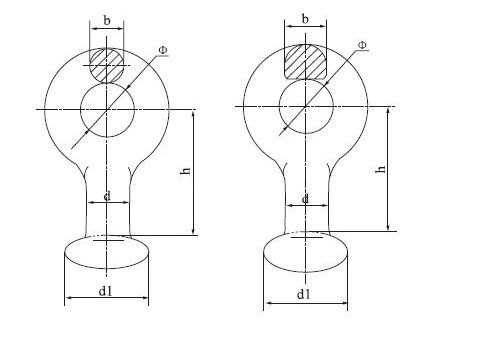

1703145044131

Type	Dimensions in millimeters					Designatedsize of coupling	Specified Failure Load
Type	d	Ø	b	d1	h	Designatedsize of coupling	(kN)
Q-7	17	22	16	33.3	50	16	70
QP-7	17	20	16	33.3	50	16	70
QP-10	17	20	16	33.3	50	16	100
QP-12	17	24	17	33.3	60	16	120
QP-12G	17	24	17	33.3	60	16	120
QP-16	21	26	20	41	60	20	160
QP-20	25	30	24	49	80	24	200
QP-21D	21	30	24	41	70	20	210
QP-30	25	39	28	49	80	24	300
QP-2120G	21	26	20	41	80	20	210
QP-3224G	25	33	28	49	80	24	320
QP-4228G	29	39	32	57	100	28	420

Hot-DIP Galvanized Substation Fittings Link Fittings
