64/110kV Composite Bushing Outdoor Termination

5 0 Reviews

Introduction on Cable Accessories for 48/66~290/500kV

48/66kV~290/500kV high voltage cable accessories can be classified as porcelain bushing outdoor termination, composite bushing outdoor termination, full-prefabricated soft dry type outdoor termination, GIS termination, full-prefabricated silicone rubber straight through /insulating joint, assembled joint applied to any cross section, single-phase type and three-phase type for fully dry insulating branch joint, grounding box, and grounding protection box, interconnected box and sheath protector, etc.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 4E-YJZWCF4

  • 4E

4E-YJZWF Composite Bushing Outdoor Termination
The company produces two main of composite casting outdoor termination, 4E-YJZWCF3 and 4E-YJZWCF4, which are widely used for outdoor high-voltage overhead lines and cable connections with anti-pollution level of III and IV. They are composed of termination, stress cone, composite casting bushing, and tail tube. We use imported liquid silicone rubber injection molding to make stress cone, which has long-term stability of lasting hold power and electric field uniform ability. Composite casting bushing is using skirt structure with high strength epoxy fiberglass insulation tubes coated with silicone rubber. The composite casting bushing is filled with insulating oil with excellent electrical insulation properties, and the mutual dissolution or penetration is as low as 1/1000 between silicon stress cone to ensure the long-term safe operation of the product. Our product is using multiple sealing structure which can effectively prevent the leakage of water immersion and insulating oil. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material are stainless steel with good waterproof seal performance.


Composite bushing outdoor termination not only has all the advantages of the porcelain bushing, but also have the following superior performance:

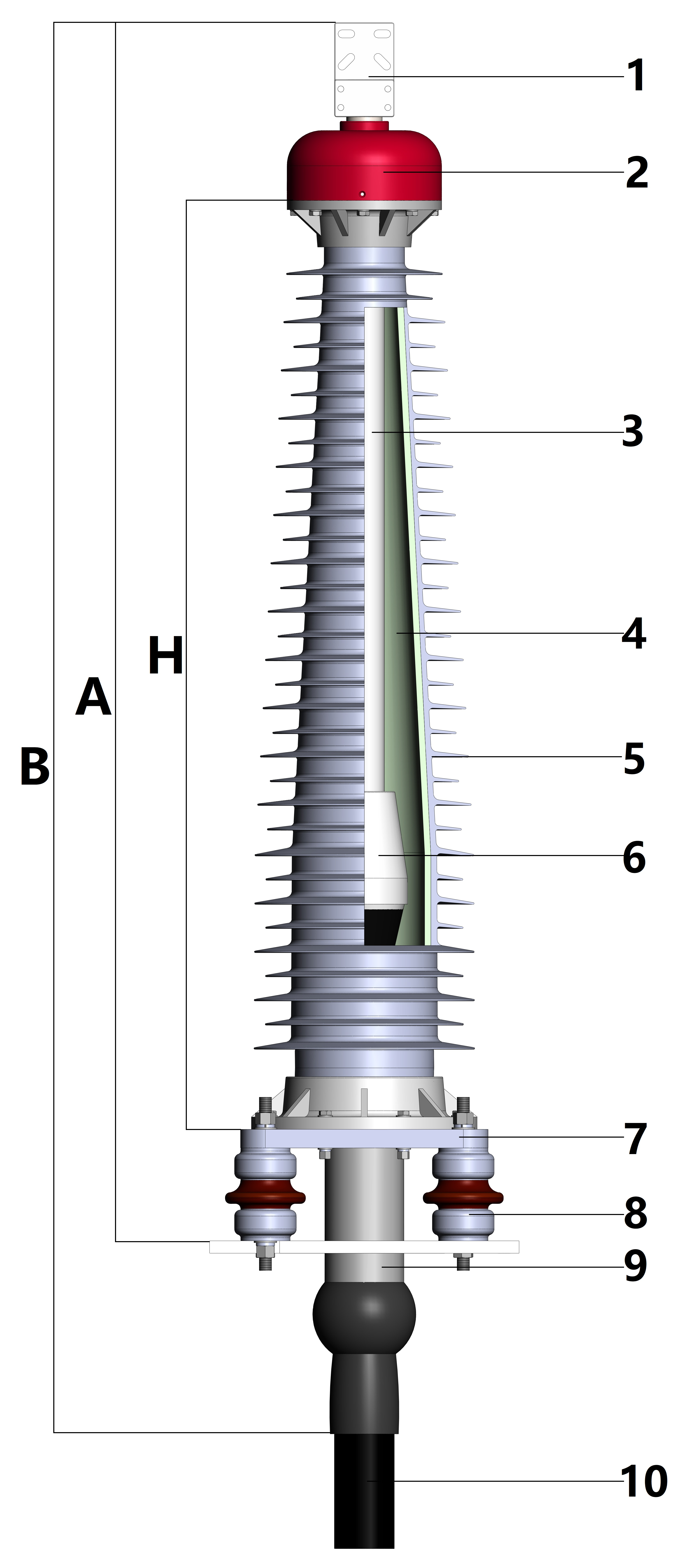

Size mm

48/66kV

64/110kV

80/138kV

127/220kV

H

1270

1500

1750

2500

A

1510

1935

2085

3100

B

1925

2155

2400

3600

C

450

450

450

650

D

200

200

200

300

E

Φ22

Φ22

Φ22

Φ32

Creepage distance

≥2248

≥3906

≥4495

≥7812

  Mechanical: mechanical strength of the inner layer is epoxy fiberglass which is better than porcelain bushing, with better mechanical performance.

Explode proof: silicon skirt layer covering outer is soft, effectively avoid or greatly reduce the damage after an explosion caused by personal or adjacent equipment, with better security than the porcelain bushing in densely populated areas.

Transportation: the weight of composite casting bushing is less than 1/5 of porcelain bushing weight. The excellent mechanical strength inner and soft outer layer is more compression resistance to collapse, effectively reducing the transportation and installation cost.

Weather resistance: silicon rubber outer layer has excellent weather resistance, stain-resistance self-cleaning ability, UV and aging resistance. IEC60815 clearly shows that the porcelain bushing creepage distance is only 17mm/kV, slightly higher than the level of anti-I, while the silicon rubber creepage ration distance is up to 25mm/kV, reach the level of anti-III.

     Cleaning free: silicone rubber has excellent water repellency with good self-cleaning ability, basic free blackout manual cleaning (porcelain blackout cleaning rate is generally once a year), greatly reduce the maintenance costs.
