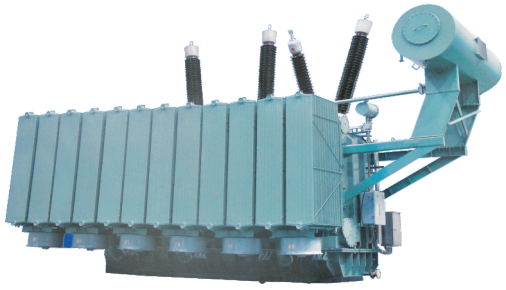

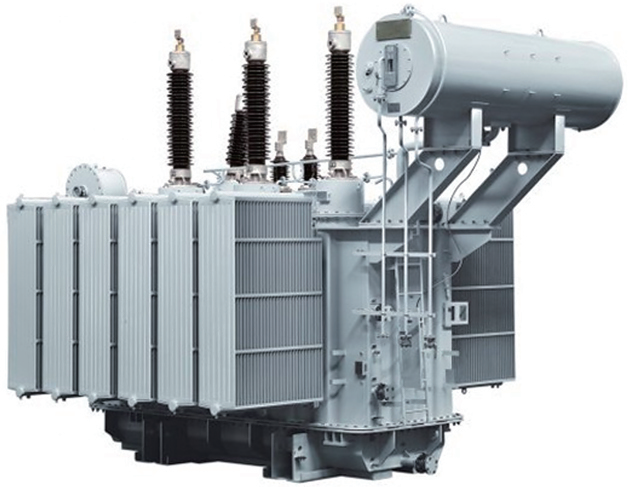

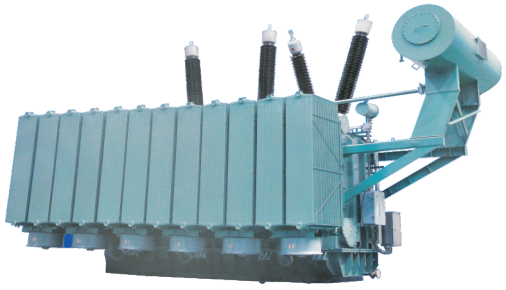

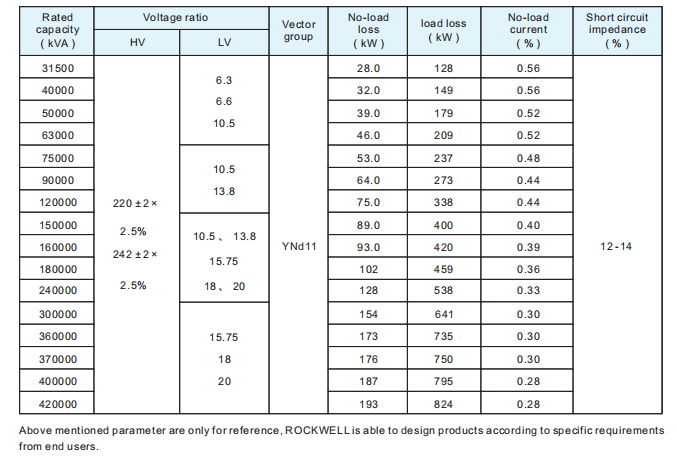

220kV POWER TRANSFORMER
220kV three-phase oil immersed on-load voltage regulating transformer brings about a series of major transformations in terms of material,technique and construction. It is characteristic of compact construction, low weight, high efficiency, low loss and low noise, reliability of performance. The product can reduce considerable loss on energy
grid and operational costs and extend distinct economic efficacy.
It is suitable for power plant, transformer substation, and large-scale industrial and chemistry factory and etc. the product is according to national and IEC standards.
1 . Type: outdoor
2 . Ambient temperature: max . temperature: +40C; min . temperature: -30C
3 . Altitude: ≤1000m (temperature rise shall be corrected when＞1000m)
4 . Relative humidity: ≤90% (25C)
5 . Installation place: without corrosive gas and apparent fouling
110/66 kV POWER TRANSFORMER
We have adopted series of important reforms on the 110kV level three-phase oil-immersed on-load tap-changing transformer referring material, process and structure. The transformer has the features of small size, light weight, high efficiency, low loss, low noise, reliable operation etc. which can reduce a large amount of power network loss and operation expense with significant economic benefits. It is suitable for power plant, substation, heavy section plant or enterprises etc.

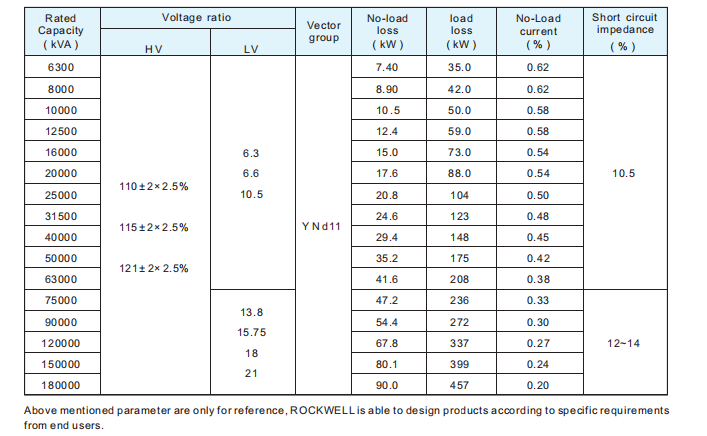

110kV Three-phase Double-winding NLTC Power Transformer

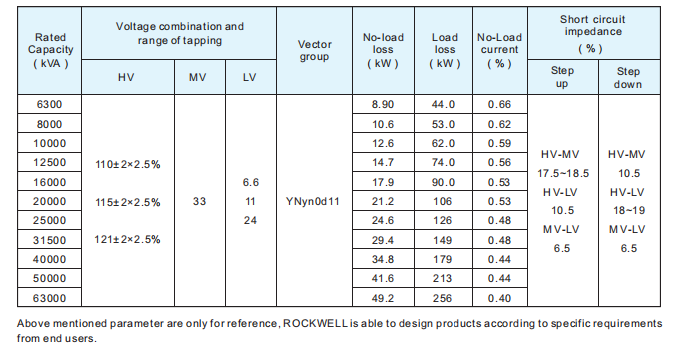

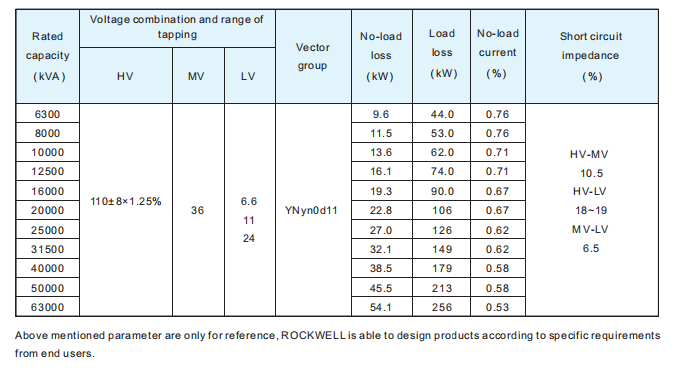

110kV Three-phase Three-winding NLTC Power Transformer

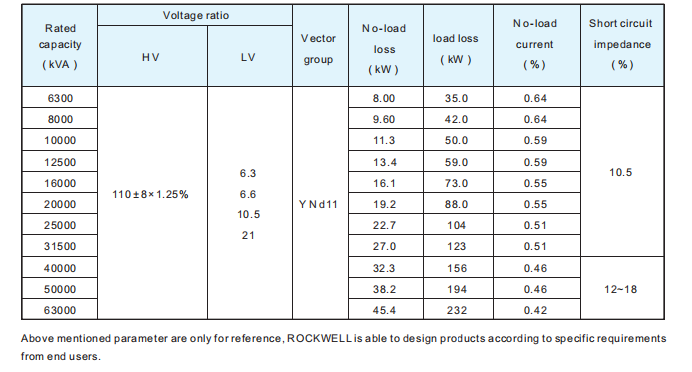

110kV Three-phase Double-winding OLTC Power Transformer
110kV Three-phase Three-winding OLTC Power Transformer

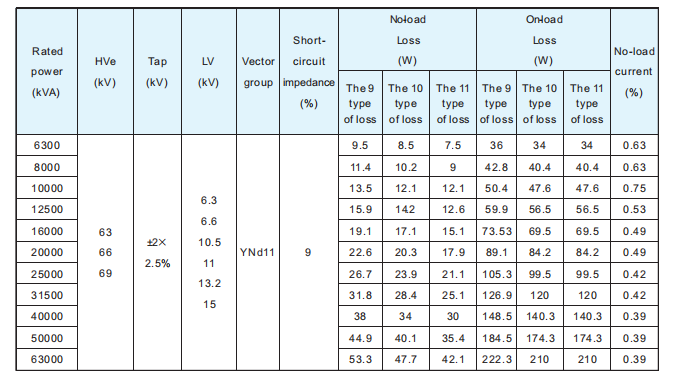

66kV Three-phase Power Transformer with 0ff-load Tap Changer

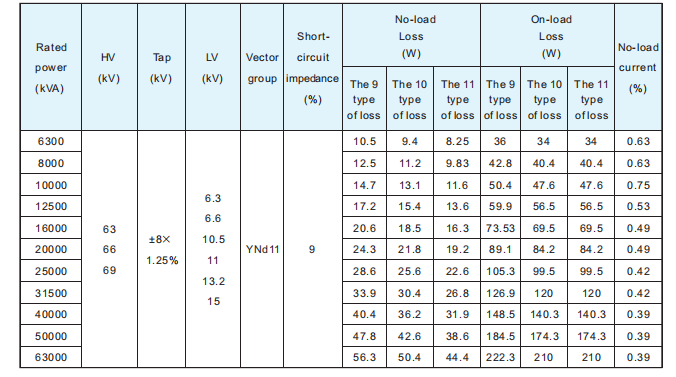

66kV Three-phase Power Transformer with On-load Tap Changer

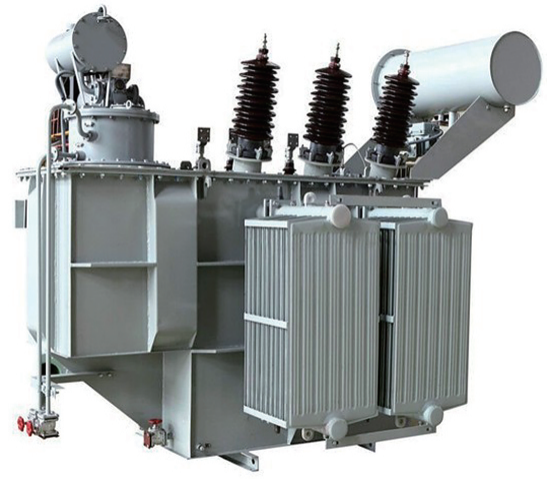

35kV POWER TRANSFORMER
T he 35kV transformer, the use of company-specific calculation and verification procedures , thetransformer core , coils , active part , leading tanks andother components for a full range of optimized designand verification , to ensure product performance .S uperior technology equipment , careful selection ofmaterials , and efficient manufacturing make thetransformer small , light weight , low loss , low PD , lownoise and other characteristics of superior productquality, energy saving and environmental protection ,reliable operation and effectively reduce the P roductoperating costs
1. Type: outdoor
2.Ambient temperature: max. temperature: +40 C; min. temperature: -30C
3.Altitude: <1000m (temperature rise shall be corrected when>1000m)
4. Relativehumidity: 590% (25C)
5. Installation place: without corrosive gas and apparent fouling.

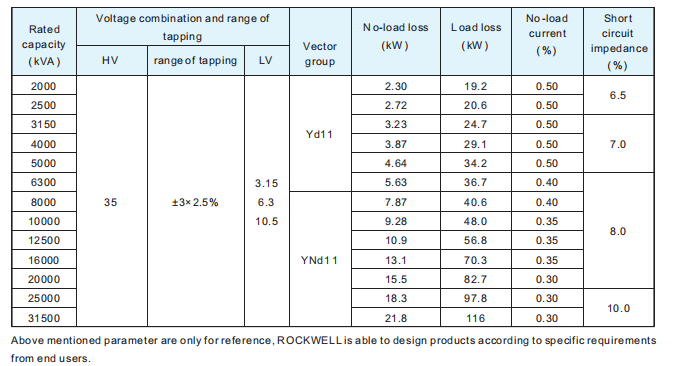

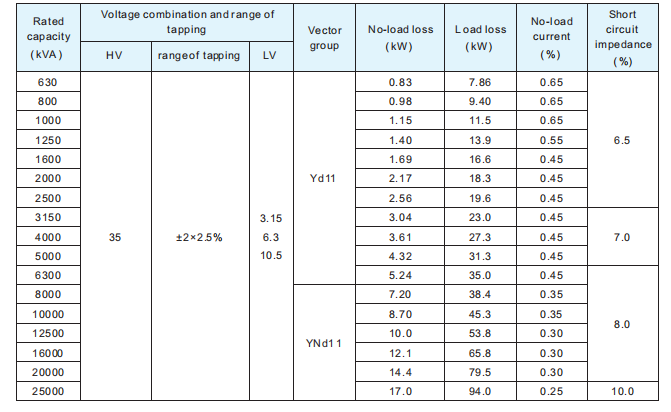

35kV Three-phase Double Windings NLTC Power Transformer
35kV Three-phase Double Windings OLTC Power Transformer

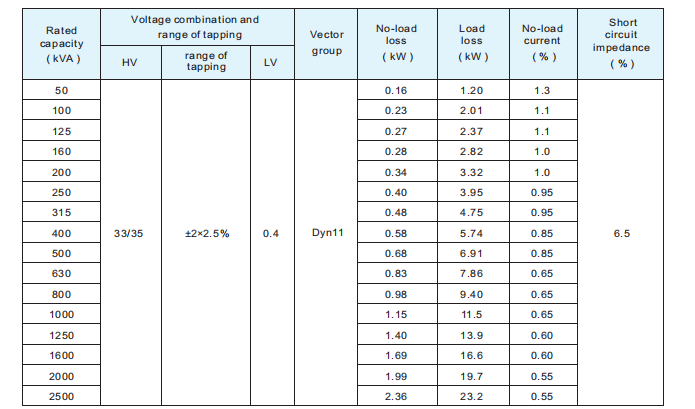

35kV Three-phase Double Windings NLTC Distribution Transformer
220kV POWER TRANSFORMER
220kV three-phase oil immersed on-load voltage regulating transformer brings about a series of major transformations in terms of material,technique and construction. It is characteristic of compact construction, low weight, high efficiency, low loss and low noise, reliability of performance. The product can reduce considerable loss on energy
grid and operational costs and extend distinct economic efficacy.
It is suitable for power plant, transformer substation, and large-scale industrial and chemistry factory and etc. the product is according to national and IEC standards.
1 . Type: outdoor
2 . Ambient temperature: max . temperature: +40C; min . temperature: -30C
3 . Altitude: ≤1000m (temperature rise shall be corrected when＞1000m)
4 . Relative humidity: ≤90% (25C)
5 . Installation place: without corrosive gas and apparent fouling
110/66 kV POWER TRANSFORMER
We have adopted series of important reforms on the 110kV level three-phase oil-immersed on-load tap-changing transformer referring material, process and structure. The transformer has the features of small size, light weight, high efficiency, low loss, low noise, reliable operation etc. which can reduce a large amount of power network loss and operation expense with significant economic benefits. It is suitable for power plant, substation, heavy section plant or enterprises etc.
110kV Three-phase Double-winding NLTC Power Transformer
110kV Three-phase Three-winding NLTC Power Transformer
110kV Three-phase Double-winding OLTC Power Transformer
110kV Three-phase Three-winding OLTC Power Transformer
66kV Three-phase Power Transformer with 0ff-load Tap Changer
66kV Three-phase Power Transformer with On-load Tap Changer
35kV POWER TRANSFORMER
T he 35kV transformer, the use of company-specific calculation and verification procedures , thetransformer core , coils , active part , leading tanks andother components for a full range of optimized designand verification , to ensure product performance .S uperior technology equipment , careful selection ofmaterials , and efficient manufacturing make thetransformer small , light weight , low loss , low PD , lownoise and other characteristics of superior productquality, energy saving and environmental protection ,reliable operation and effectively reduce the P roductoperating costs
1. Type: outdoor
2.Ambient temperature: max. temperature: +40 C; min. temperature: -30C
3.Altitude: <1000m (temperature rise shall be corrected when>1000m)
4. Relativehumidity: 590% (25C)
5. Installation place: without corrosive gas and apparent fouling.
35kV Three-phase Double Windings NLTC Power Transformer
35kV Three-phase Double Windings OLTC Power Transformer
35kV Three-phase Double Windings NLTC Distribution Transformer
