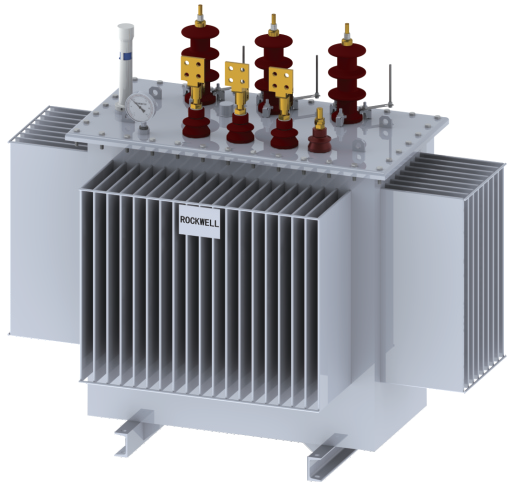

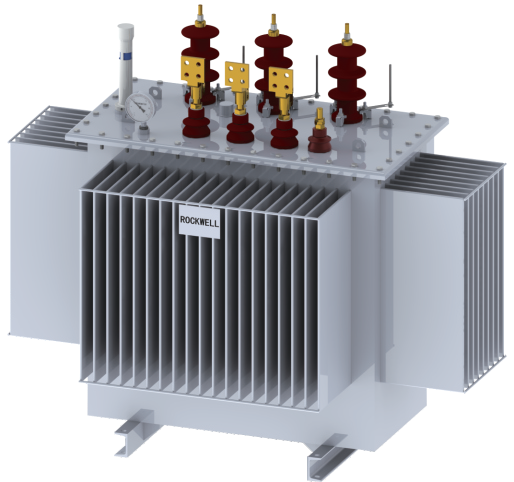

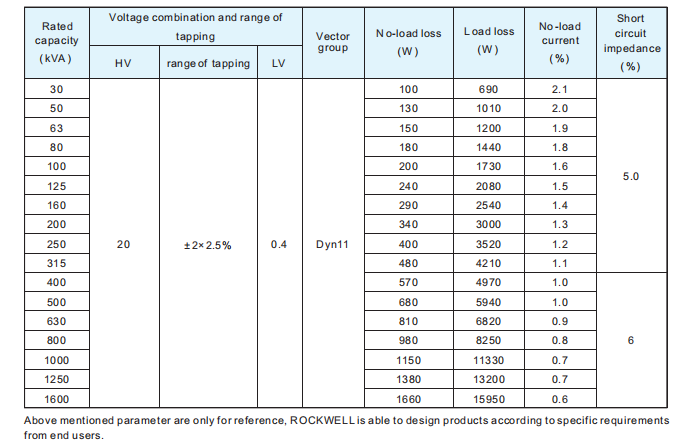

20kV DISTRIBUTION TRANSFORMER
The 20kV transformer adopts advanced design and meets IEC60076 standards. Without such device like conservator air breather, so it ensures that transformer oil is not in contact with air improving the anti-oxidation capacity of the transformer oil. The tank is corrugated type, the corrugated fins cans swell and shrink with the change of transformer oil, so that the pressure can be maintained inside the tank,increaseitsreliabilityandanti-corrosion capability. With sealing material parts made of high quality acrylic rubber, it can effectively prevent against light-aging and heat aging.
1. Type: outdoor
2. Ambient temperature: max. temperature: +40℃; min. temperature: -30℃
3. Altitude: ≤1000m (temperature rise shall be corrected when＞1000m)
4. Relative humidity: ≤90% (25℃)
5. Installation place: without corrosive gas and apparent fouling.

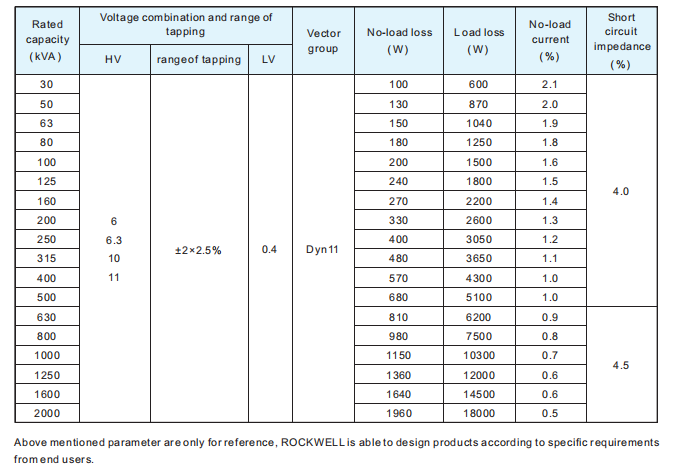

10kV DISTRIBUTION TRANSFORMER
The10kVtransformerisindependentlydesigned on the basis of learning from latest technologies in china and overseas. The product is characteristic of low loss,reduced noise,and exemption of sweeping core. It is innovative in terms of safety. Reliability,and economy. Advanced iron core piling and tilting workbench and rigorous techniques of piling and iron yokingwithoutpre-pilingensuresufficientorientation of the grains in cold rolled silicon steel sheet and reduce no-load loss of transformer effectively.
1. Type: outdoor
2. Ambient temperature: max. temperature: +40℃; min. temperature: -30℃
3. Altitude: ≤1000m (temperature rise shall be corrected when＞1000m)
4. Relative humidity: ≤90% (25℃)
5. Installation place: without corrosive gas and apparent fouling.
20kV DISTRIBUTION TRANSFORMER
The 20kV transformer adopts advanced design and meets IEC60076 standards. Without such device like conservator air breather, so it ensures that transformer oil is not in contact with air improving the anti-oxidation capacity of the transformer oil. The tank is corrugated type, the corrugated fins cans swell and shrink with the change of transformer oil, so that the pressure can be maintained inside the tank,increaseitsreliabilityandanti-corrosion capability. With sealing material parts made of high quality acrylic rubber, it can effectively prevent against light-aging and heat aging.
1. Type: outdoor
2. Ambient temperature: max. temperature: +40℃; min. temperature: -30℃
3. Altitude: ≤1000m (temperature rise shall be corrected when＞1000m)
4. Relative humidity: ≤90% (25℃)
5. Installation place: without corrosive gas and apparent fouling.
10kV DISTRIBUTION TRANSFORMER
The10kVtransformerisindependentlydesigned on the basis of learning from latest technologies in china and overseas. The product is characteristic of low loss,reduced noise,and exemption of sweeping core. It is innovative in terms of safety. Reliability,and economy. Advanced iron core piling and tilting workbench and rigorous techniques of piling and iron yokingwithoutpre-pilingensuresufficientorientation of the grains in cold rolled silicon steel sheet and reduce no-load loss of transformer effectively.
1. Type: outdoor
2. Ambient temperature: max. temperature: +40℃; min. temperature: -30℃
3. Altitude: ≤1000m (temperature rise shall be corrected when＞1000m)
4. Relative humidity: ≤90% (25℃)
5. Installation place: without corrosive gas and apparent fouling.
