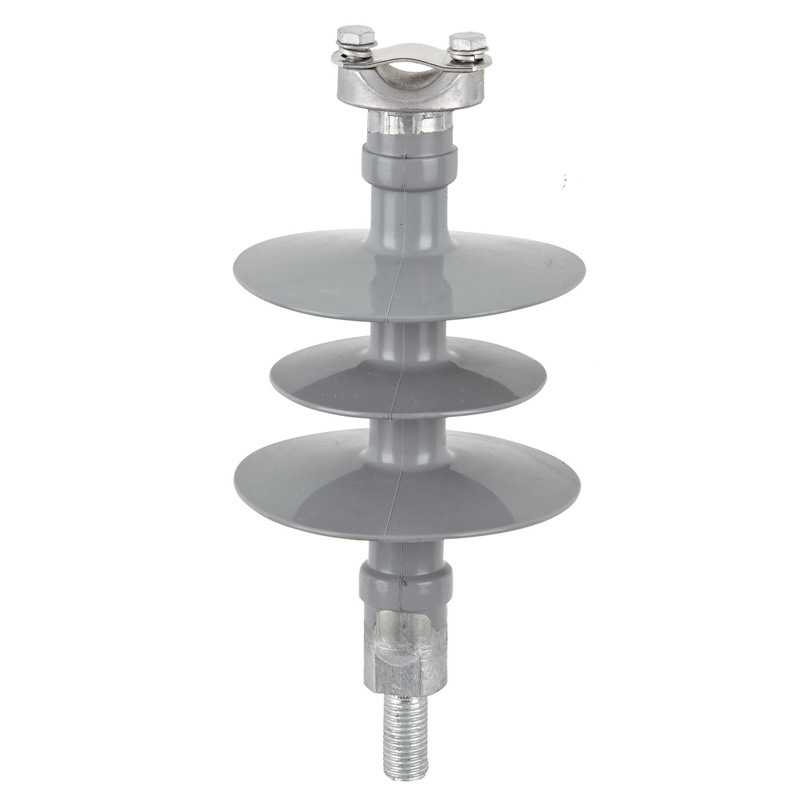

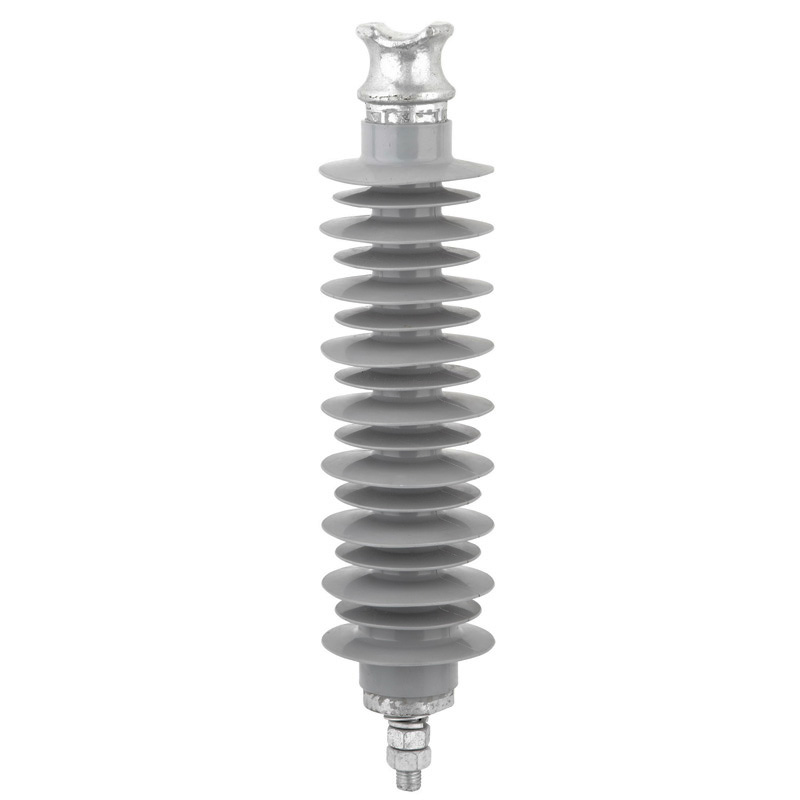

11KV Composite Pin Silicone Rubber Insulator for support wire
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Pin Insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 36 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 36kV.
Standards: IEC 61952:2008，ANSI,etc
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.

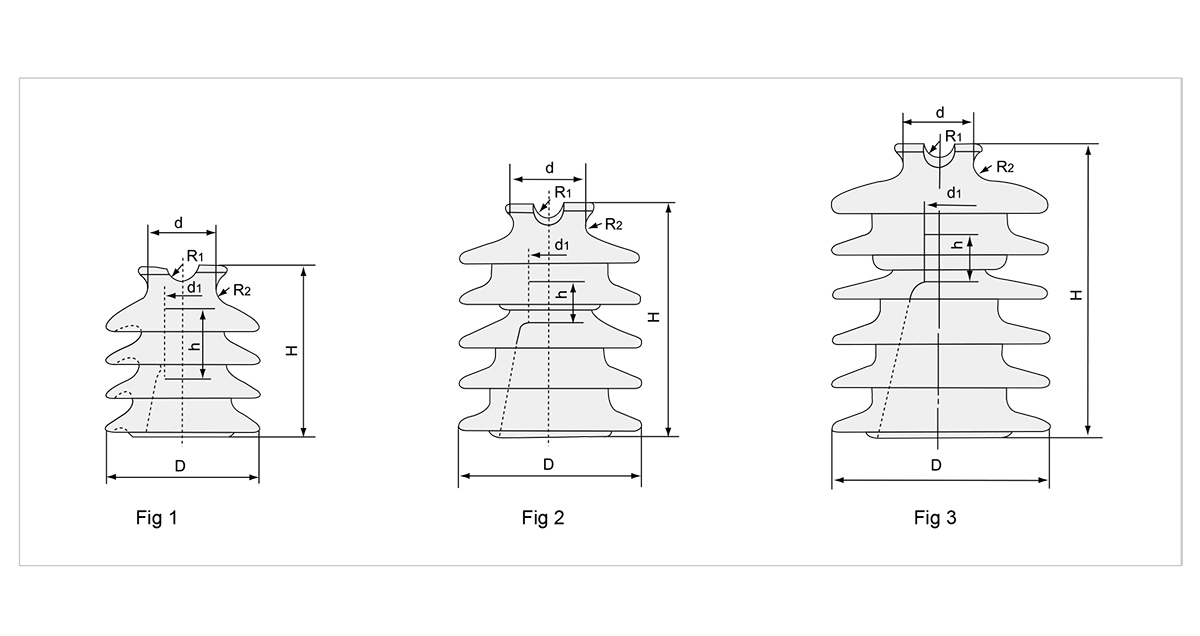

Main Technical Parameter | |||||||
Model | Rated voltage（KV） | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |

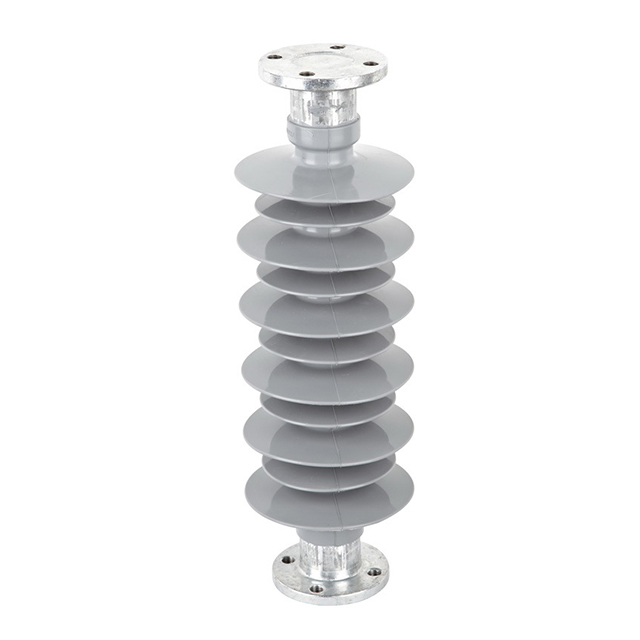

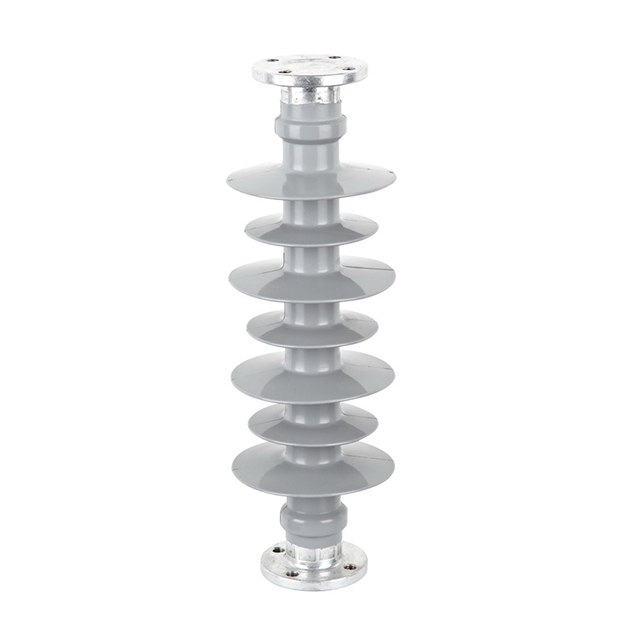

12kv High Voltage Overhead Transmission Line Composite Post Insulator
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Post Insulator
General
1.Ratings : up to 252kV.
2.Application : for lines supporting and insulation of power transmission & distribution system.
3.Standard: IEC 62217:2005,IEC 62231:2006,ANSI,etc.
Features:
Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Working Condition
1.Ambient air temperature: -50℃ ~+50℃
3.Altitude : <=3000m
3.Frequency:<=100Hz
Main Technical Parameter | |||||||
Model | Rated voltage (KV) | Specified mechanical load(kN) | Spacing H (mm) | Arcing distance (>mm) | Minimum creepage distance (>=mm) | Lightening impulse residual voltage under nominal discharge current (<=KVp) | Wet power frequency Withstand voltage(>=kVr.m.s.) |
FZSW-12/6 | 12 | 6 | 215 | 210 | 450 | 100 | 45 |
FZSW-24/8 | 24 | 8 | 305 | 265 | 780 | 130 | 60 |
FZSW-36/6 | 36 | 6 | 445 | 435 | 1015 | 190 | 90 |
FZSW-72.5/10 | 72.5 | 10 | 770 | 675 | 1820 | 350 | 150 |
FZSW-126/8 | 126 | 8 | 1220 | 1125 | 3150 | 500 | 230 |
FZSW-245/4 | 252 | 4 | 2300 | 2200 | 6300 | 1050 | 450 |

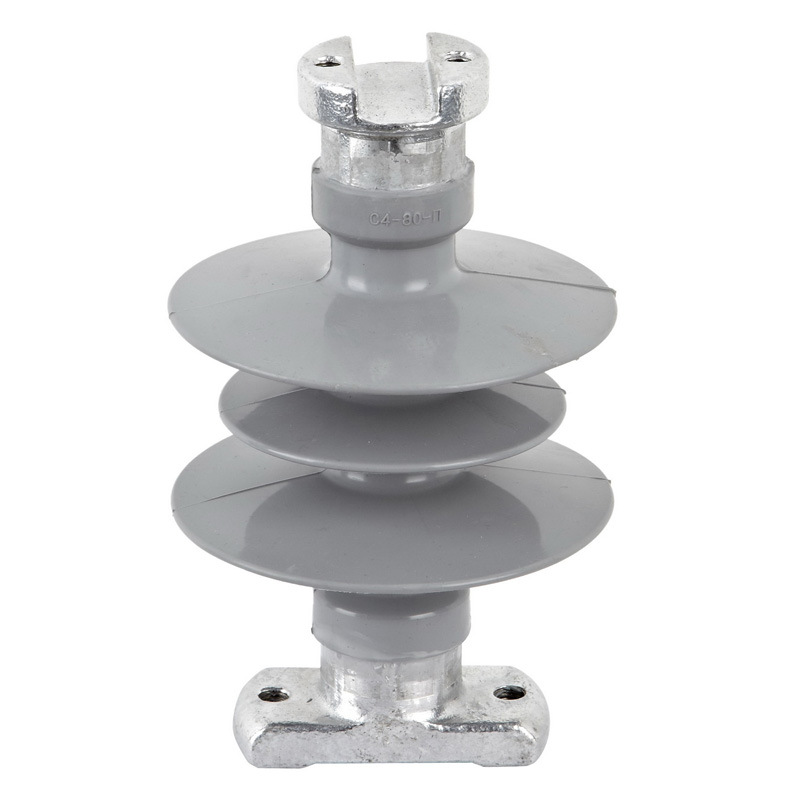

12kv Line Composite Post Insulator for Support Cable
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Post Insulator
General
1.Ratings : up to 252kV.
2.Application : for lines supporting and insulation of power transmission & distribution system.
3.Standard: IEC 62217:2005,IEC 62231:2006,ANSI,etc.
Features:
Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Working Condition
1.Ambient air temperature: -50℃ ~+50℃
3.Altitude : <=3000m
3.Frequency:<=100Hz
Main Technical Parameter | |||||||
Model | Rated voltage (KV) | Specified mechanical load(kN) | Spacing H (mm) | Arcing distance (>mm) | Minimum creepage distance (>=mm) | Lightening impulse residual voltage under nominal discharge current (<=KVp) | Wet power frequency Withstand voltage(>=kVr.m.s.) |
FZSW-12/6 | 12 | 6 | 215 | 210 | 450 | 100 | 45 |
FZSW-24/8 | 24 | 8 | 305 | 265 | 780 | 130 | 60 |
FZSW-36/6 | 36 | 6 | 445 | 435 | 1015 | 190 | 90 |
FZSW-72.5/10 | 72.5 | 10 | 770 | 675 | 1820 | 350 | 150 |
FZSW-126/8 | 126 | 8 | 1220 | 1125 | 3150 | 500 | 230 |
FZSW-245/4 | 252 | 4 | 2300 | 2200 | 6300 | 1050 | 450 |

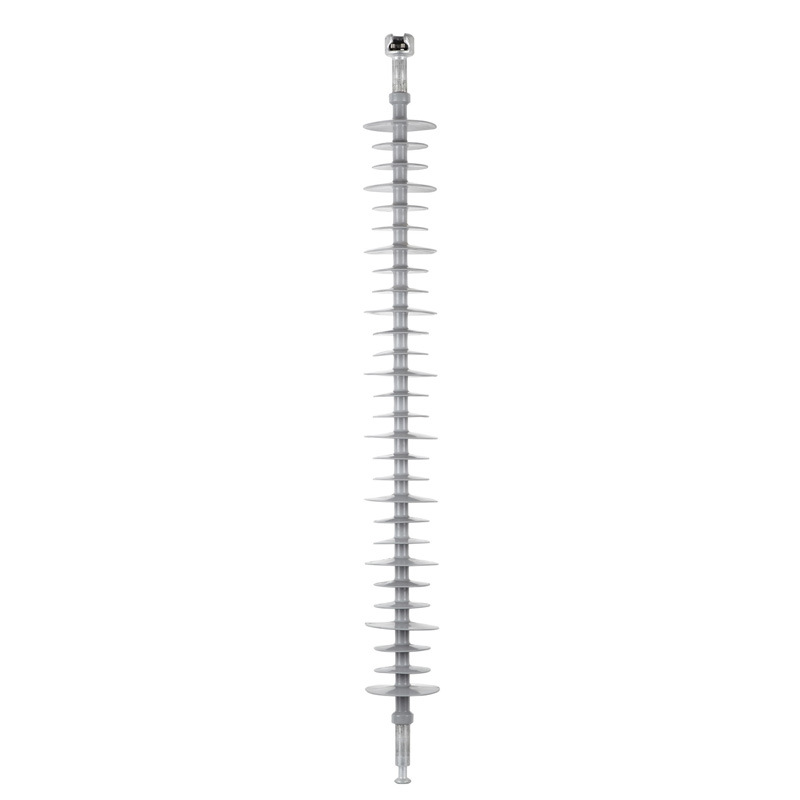

15kv Composite Long Rod Insulator Overhead Transmission Line
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Long rod suspension insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) | Factory model |
CS70XZ-100/465 | 70 | 360 | 215 | 480 | 100 | 50 | FXBW-15/70 |
CS120XZ-100/465 | 120 | 400 | 215 | 480 | 100 | 50 | FXBW-15/120 |
CS70XZ-120/450 | 70 | 413 | 275 | 544 | 120 | 60 | FXBW-17.5/70 |
CS120XZ-120/450 | 120 | 513 | 275 | 544 | 120 | 60 | FXBW-17.5/120 |
CS70XZ-125/480 | 70 | 461 | 320 | 550 | 125 | 70 | FXBW-24/70(20mm/ |
CS120XZ-125/480 | 120 | 490 | 320 | 550 | 125 | 70 | FXBW- |
CS70XZ-145/745 | 70 | 500 | 355 | 750 | 145 | 80 | FXBW-24/70(31mm/ |
CS120XZ-145/745 | 120 | 529 | 355 | 750 | 145 | 80 | FXBW- |
CS70XZ-185/900 | 70 | 541 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS120XZ-185/900 | 120 | 570 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS70XZ-230/1120 | 70 | 610 | 455 | 1250 | 230 | 105 | FXBW-36/70(31mm/ |
CS120XZ-230/1120 | 120 | 650 | 455 | 1250 | 230 | 105 | FXBW- |
CS70XZ-325/1815 | 70 | 860 | 710 | 2210 | 325 | 150 | FXBW-72.5/70 |
CS120XZ-325/1815 | 120 | 900 | 710 | 2210 | 325 | 150 | FXBW-72.5/120 |
CS70XZ-550/3150 | 70 | 1220 | 1055 | 3400 | 550 | 230 | FXBW-126/70 |
CS120XZ-550/3150 | 120 | 1255 | 1055 | 3400 | 550 | 230 | FXBW-126/120 |
CS120XZ-650/3625 | 120 | 1475 | 1270 | 4100 | 650 | 275 | FXBW-145/70 |
CS210XZ-650/3625 | 160 | 1654 | 1485 | 4495 | 650 | 250 | FXBW-145/160 |
CS120XZ-1050/6300 | 210 | 2550 | 2300 | 8500 | 1050 | 460 | FXBW-245/210 |
CS160XZ-1050/6300 | 160 | 2430 | 2200 | 7000 | 1050 | 400 | FXBW-252/160 |
CS120XZ-1425/9075 | 120 | 3180 | 2780 | 9880 | 1425 | 570 | FXBW-363/120 |
CS210XZ-1425/9075 | 210 | 3440 | 3000 | 10450 | 1425 | 570 | FXBW-363/210 |
CS120XZ-2250/13750 | 120 | 4450 | 4050 | 14100 | 2250 | 740 | FXBW-550/120 |
CS210XZ-2250/13750 | 210 | 4450 | 4050 | 13850 | 2250 | 740 | FXBW-550/210 |
Pin Silicone Rubber Composite Insulator for Distribution Line
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Pin Insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 36 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 36kV.
Standards: IEC 61952:2008，ANSI,etc
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Rated voltage（KV） | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |
24kv High Voltage Polymer Insulator for Substation
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Long rod suspension insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) | Factory model |
CS70XZ-100/465 | 70 | 360 | 215 | 480 | 100 | 50 | FXBW-15/70 |
CS120XZ-100/465 | 120 | 400 | 215 | 480 | 100 | 50 | FXBW-15/120 |
CS70XZ-120/450 | 70 | 413 | 275 | 544 | 120 | 60 | FXBW-17.5/70 |
CS120XZ-120/450 | 120 | 513 | 275 | 544 | 120 | 60 | FXBW-17.5/120 |
CS70XZ-125/480 | 70 | 461 | 320 | 550 | 125 | 70 | FXBW-24/70(20mm/ |
CS120XZ-125/480 | 120 | 490 | 320 | 550 | 125 | 70 | FXBW- |
CS70XZ-145/745 | 70 | 500 | 355 | 750 | 145 | 80 | FXBW-24/70(31mm/ |
CS120XZ-145/745 | 120 | 529 | 355 | 750 | 145 | 80 | FXBW- |
CS70XZ-185/900 | 70 | 541 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS120XZ-185/900 | 120 | 570 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS70XZ-230/1120 | 70 | 610 | 455 | 1250 | 230 | 105 | FXBW-36/70(31mm/ |
CS120XZ-230/1120 | 120 | 650 | 455 | 1250 | 230 | 105 | FXBW- |
CS70XZ-325/1815 | 70 | 860 | 710 | 2210 | 325 | 150 | FXBW-72.5/70 |
CS120XZ-325/1815 | 120 | 900 | 710 | 2210 | 325 | 150 | FXBW-72.5/120 |
CS70XZ-550/3150 | 70 | 1220 | 1055 | 3400 | 550 | 230 | FXBW-126/70 |
CS120XZ-550/3150 | 120 | 1255 | 1055 | 3400 | 550 | 230 | FXBW-126/120 |
CS120XZ-650/3625 | 120 | 1475 | 1270 | 4100 | 650 | 275 | FXBW-145/70 |
CS210XZ-650/3625 | 160 | 1654 | 1485 | 4495 | 650 | 250 | FXBW-145/160 |
CS120XZ-1050/6300 | 210 | 2550 | 2300 | 8500 | 1050 | 460 | FXBW-245/210 |
CS160XZ-1050/6300 | 160 | 2430 | 2200 | 7000 | 1050 | 400 | FXBW-252/160 |
CS120XZ-1425/9075 | 120 | 3180 | 2780 | 9880 | 1425 | 570 | FXBW-363/120 |
CS210XZ-1425/9075 | 210 | 3440 | 3000 | 10450 | 1425 | 570 | FXBW-363/210 |
CS120XZ-2250/13750 | 120 | 4450 | 4050 | 14100 | 2250 | 740 | FXBW-550/120 |
CS210XZ-2250/13750 | 210 | 4450 | 4050 | 13850 | 2250 | 740 | FXBW-550/210 |

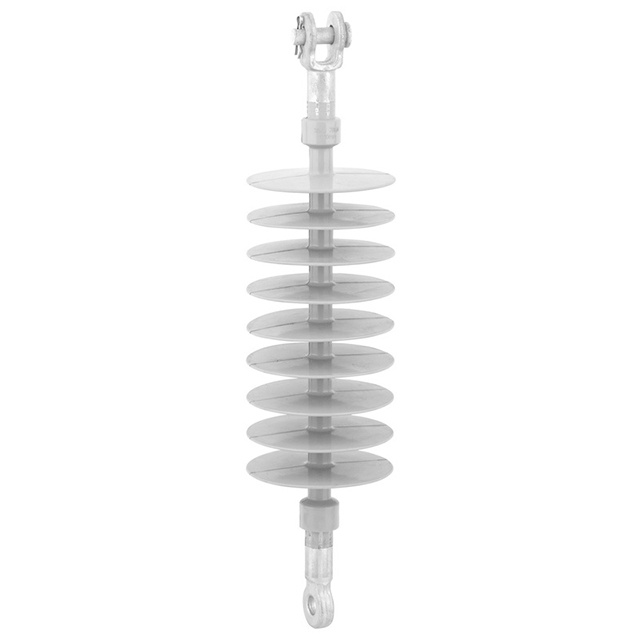

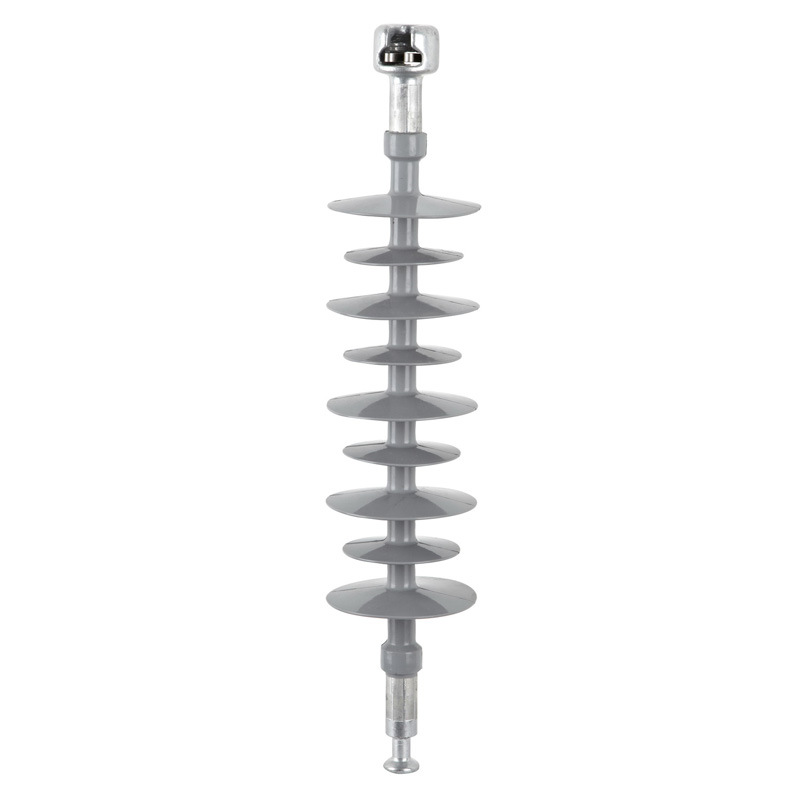

126KV High Voltage Long Rod Composite Insulators
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Long rod suspension insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) | Factory model |
CS70XZ-100/465 | 70 | 360 | 215 | 480 | 100 | 50 | FXBW-15/70 |
CS120XZ-100/465 | 120 | 400 | 215 | 480 | 100 | 50 | FXBW-15/120 |
CS70XZ-120/450 | 70 | 413 | 275 | 544 | 120 | 60 | FXBW-17.5/70 |
CS120XZ-120/450 | 120 | 513 | 275 | 544 | 120 | 60 | FXBW-17.5/120 |
CS70XZ-125/480 | 70 | 461 | 320 | 550 | 125 | 70 | FXBW-24/70(20mm/ |
CS120XZ-125/480 | 120 | 490 | 320 | 550 | 125 | 70 | FXBW- |
CS70XZ-145/745 | 70 | 500 | 355 | 750 | 145 | 80 | FXBW-24/70(31mm/ |
CS120XZ-145/745 | 120 | 529 | 355 | 750 | 145 | 80 | FXBW- |
CS70XZ-185/900 | 70 | 541 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS120XZ-185/900 | 120 | 570 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS70XZ-230/1120 | 70 | 610 | 455 | 1250 | 230 | 105 | FXBW-36/70(31mm/ |
CS120XZ-230/1120 | 120 | 650 | 455 | 1250 | 230 | 105 | FXBW- |
CS70XZ-325/1815 | 70 | 860 | 710 | 2210 | 325 | 150 | FXBW-72.5/70 |
CS120XZ-325/1815 | 120 | 900 | 710 | 2210 | 325 | 150 | FXBW-72.5/120 |
CS70XZ-550/3150 | 70 | 1220 | 1055 | 3400 | 550 | 230 | FXBW-126/70 |
CS120XZ-550/3150 | 120 | 1255 | 1055 | 3400 | 550 | 230 | FXBW-126/120 |
CS120XZ-650/3625 | 120 | 1475 | 1270 | 4100 | 650 | 275 | FXBW-145/70 |
CS210XZ-650/3625 | 160 | 1654 | 1485 | 4495 | 650 | 250 | FXBW-145/160 |
CS120XZ-1050/6300 | 210 | 2550 | 2300 | 8500 | 1050 | 460 | FXBW-245/210 |
CS160XZ-1050/6300 | 160 | 2430 | 2200 | 7000 | 1050 | 400 | FXBW-252/160 |
CS120XZ-1425/9075 | 120 | 3180 | 2780 | 9880 | 1425 | 570 | FXBW-363/120 |
CS210XZ-1425/9075 | 210 | 3440 | 3000 | 10450 | 1425 | 570 | FXBW-363/210 |
CS120XZ-2250/13750 | 120 | 4450 | 4050 | 14100 | 2250 | 740 | FXBW-550/120 |
CS210XZ-2250/13750 | 210 | 4450 | 4050 | 13850 | 2250 | 740 | FXBW-550/210 |

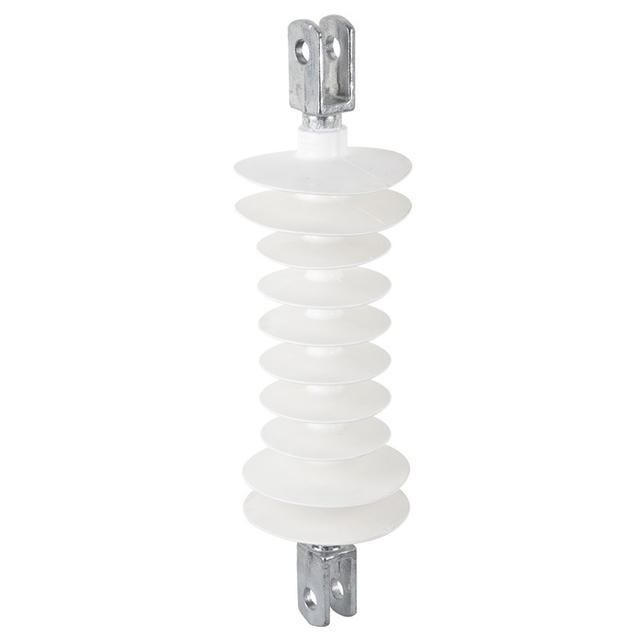

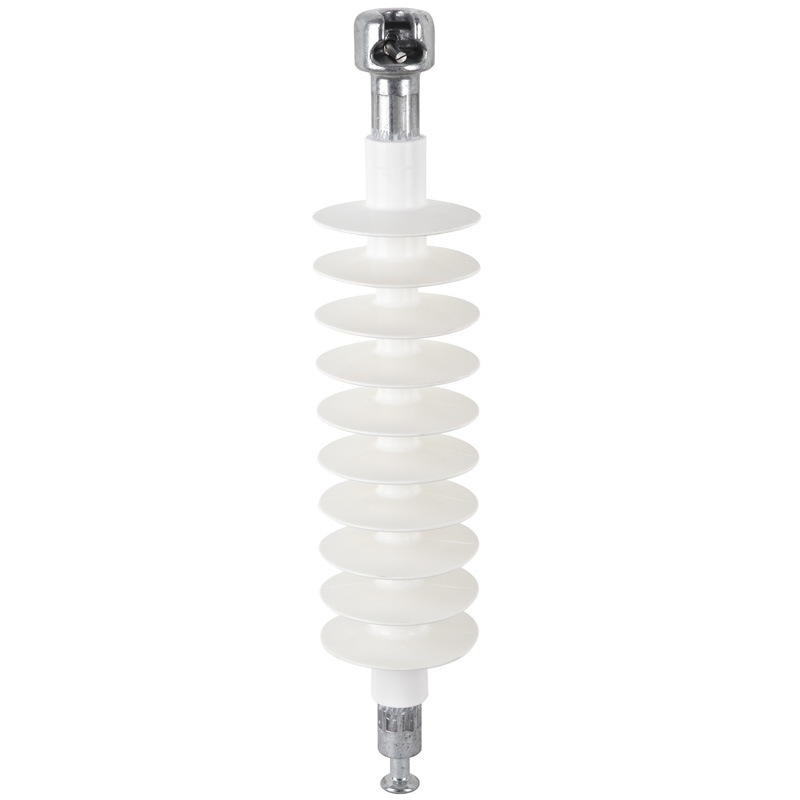

Pin Composite Insulator for Overhead Transmission Line
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Pin Insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 36 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 36kV.
Standards: IEC 61952:2008，ANSI,etc
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Rated voltage（KV） | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |
36kv Composite Suspension Insulator for Electrified Railway
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite insulators for electrified railways
Composite insulators for electrified railways have compact structure, strong integrity, good anti-fouling ability, light weight, small size, good internal and external insulation performance, high mechanical strength, and no need for regular cleaning. They are mainly used for high-speed railway and urban light rail transportation construction.
Composite insulators for electrified railways also named railway insulators, electrified railway catenary parts, polymer insulators for electrified railways, railway polymer insulators.
The support arm is made of stainless steel material or Hot dip galvanized cast steel, which has better anti-corrosion performance. It solves the corrosion of products under various climatic conditions such as humidity and acid rain. It can greatly extend the life of the product and provide reliable equipment for the implementation of compact circuit construction.
Electrified railways Composite insulators is suitable for electrified railway tunnels with complex operating conditions, which can effectively prevent pollution flashover accidents and reduce the workload of cleaning and maintenance. Due to its small size, when the tunnel clearance is small, it is a product that porcelain and glass insulators cannot replace.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | ||||||||||
Model | Structure height H（mm） | Nominal creepage distance L(mm) | Design creepage distance L(mm) | Nominal dry arc distance （mm） | Design dry arc distance （mm） | Rated mechanical tensile failure load（KN） | Standard lightning impulse withstand voltage peak（KV） | Public frequency dry withstand voltage（KV） | Public frequency wet withstand voltage（KV） | Artificial pollution public frequency withstand voltage（KV） |
FQX-25/100(120)QT | 700±20 | 1200 | 1300 | 500 | 511 | 100(120) | 270 | 160 | 130 | 36 |
FQX-25/100(120)QH | 700±20 | |||||||||
FQX-25/100(120)HH | 700±20 | |||||||||
FQD-25/100(120)HY | 734±20 | |||||||||
FQX-25/160QT | 750±20 | 512 | 160 | 31.5 | ||||||
FQX-25/160QH | 750±20 | |||||||||
FQX-25/160HH | 750±20 | |||||||||
33kV 100kN Electrified Railways Composite Insulators
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite insulators for electrified railways
Composite insulators for electrified railways have compact structure, strong integrity, good anti-fouling ability, light weight, small size, good internal and external insulation performance, high mechanical strength, and no need for regular cleaning. They are mainly used for high-speed railway and urban light rail transportation construction.
Composite insulators for electrified railways also named railway insulators, electrified railway catenary parts, polymer insulators for electrified railways, railway polymer insulators.
The support arm is made of stainless steel material or Hot dip galvanized cast steel, which has better anti-corrosion performance. It solves the corrosion of products under various climatic conditions such as humidity and acid rain. It can greatly extend the life of the product and provide reliable equipment for the implementation of compact circuit construction.
Electrified railways Composite insulators is suitable for electrified railway tunnels with complex operating conditions, which can effectively prevent pollution flashover accidents and reduce the workload of cleaning and maintenance. Due to its small size, when the tunnel clearance is small, it is a product that porcelain and glass insulators cannot replace.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | ||||||||||
Model | Structure height H（mm） | Nominal creepage distance L(mm) | Design creepage distance L(mm) | Nominal dry arc distance （mm） | Design dry arc distance （mm） | Rated mechanical tensile failure load（KN） | Standard lightning impulse withstand voltage peak（KV） | Public frequency dry withstand voltage（KV） | Public frequency wet withstand voltage（KV） | Artificial pollution public frequency withstand voltage（KV） |
FQX-25/100(120)QT | 700±20 | 1200 | 1300 | 500 | 511 | 100(120) | 270 | 160 | 130 | 36 |
FQX-25/100(120)QH | ||||||||||
FQX-25/100(120)HH | ||||||||||
FQD-25/100(120)HY | 734±20 | |||||||||
FQX-25/160QT | 750±20 | 512 | 160 | 31.5 | ||||||
FQX-25/160QH | ||||||||||
FQX-25/160HH | ||||||||||

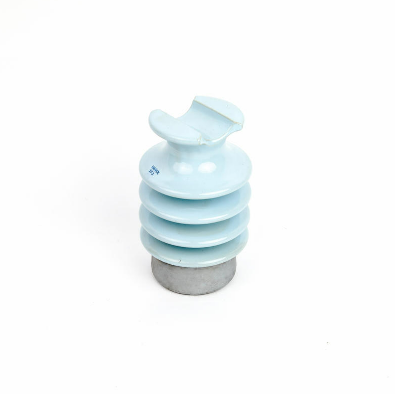

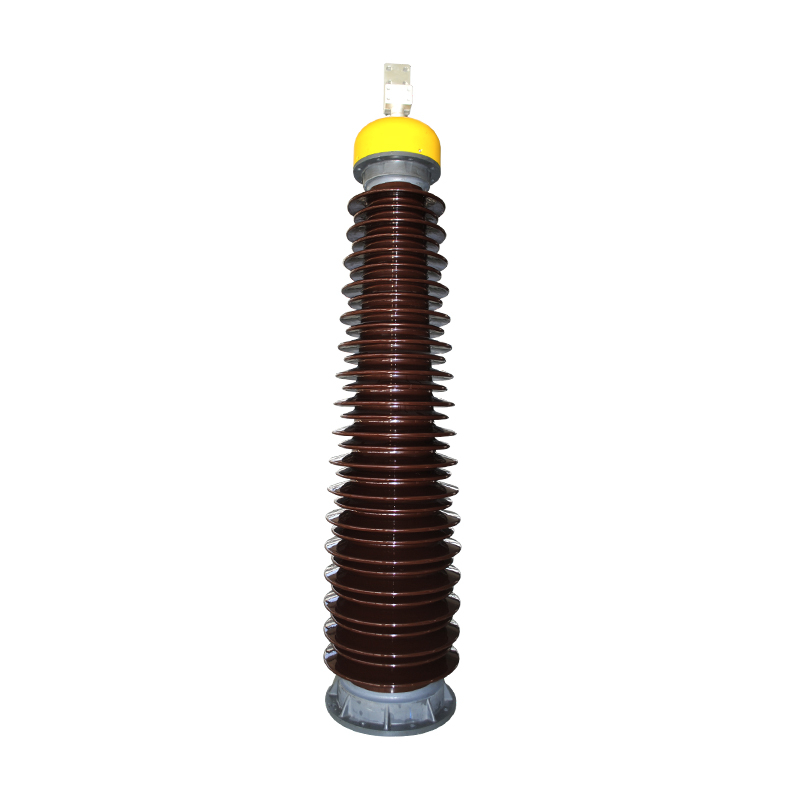

33kv Spool Type Porcelain Insulator for Station Post（BS)
Porcelain insulators,also named ceramic Insulators are made from clay, quartz or alumina and feldspar, and are covered with a smooth glaze to shed water. Insulators made from porcelain rich in alumina are used where high mechanical strength is a criterion. Porcelain has a dielectric strength of about 4–10 kV/mm.It also has perfect dielectric performance.Porcelain insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Insulators are a special insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telegraph poles. Slowly, a lot of disk-shaped insulators were hung on one end of the high-voltage wire connection tower. It was used to increase the creepage distance. It was usually made of glass or ceramics and was called an insulator. Insulators should not fail due to various electromechanical stresses caused by changes in the environment and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.
Insulators serve two primary purposes: electrical insulation and mechanical fixation. In order to meet these requirements, a number of electrical and mechanical performance standards are put in place. Provided that lightning and internal voltage are within the specified limits, no breakdown or flashover should occur along the surface. Similarly, there should be no damage or harm under the specified mechanical load, both short- and long-term. Furthermore, the insulators should not display any obvious signs of wear or deterioration after prolonged use under electric load and in different environments. The insulator fittings should also not produce any corona discharge that could interfere with radio or TV reception. Since insulators are widely used, it's important that their fittings are interchangeable. To ensure quality performance, various electrical, mechanical, physical and environmental tests are conducted on insulators according to type and usage conditions.
Summary
1) Material:porcelain
2) Class BS: Pw-11-Y Pw-22-Y Pw-33-Y
3)pin type insualators for high voltage
4)safe usage
5)various desigins available
6)fast shipping and great service
7)good quality and reasonable price

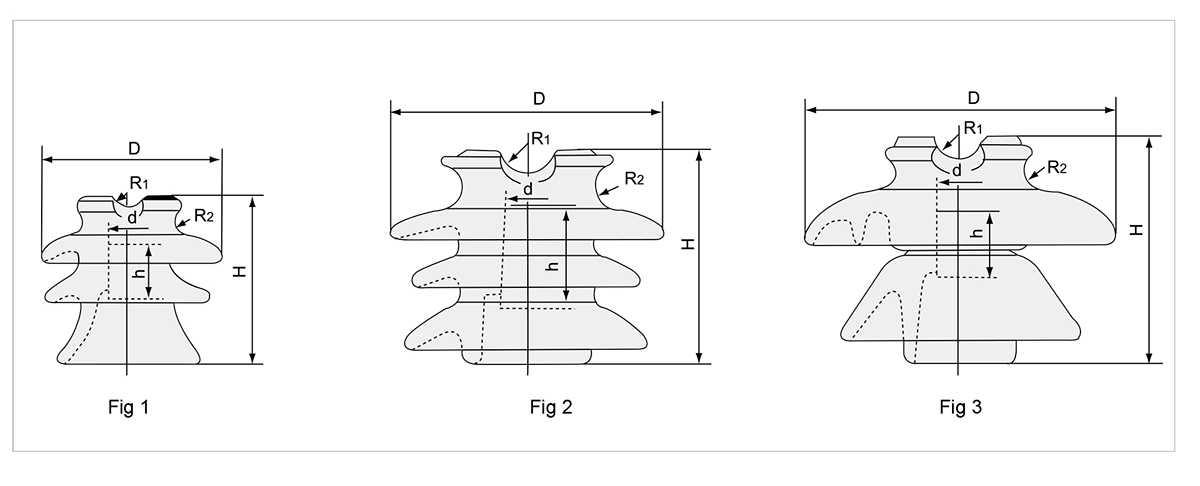

Main dimensions and standard particulars | |||||
Fig | 1 | 2 | 3 | ||
Class BS | Pw-11-Y | Pw-22-Y | Pw-33-Y | ||
Main Dimensions (mm) | H | 185 | 255 | 320 | |
h | 32.65 | 32.65 | 32.65 | ||
D | 170 | 205 | 240 | ||
d | 76 | 76 | 76 | ||
d1 | 27.78 | 27.78 | 27.78 | ||
R1 | 16 | 16 | 16 | ||
R2 | 16 | 16 | 16 | ||
Nominal Voltage (kV) | 15 | 22 | 33 | ||
Creepage Distance (mm) | 432 | 673 | 851 | ||
Minimum Flashover Voltage | Power-frequency | Dry (kV) | 100 | 125 | 140 |
Wet (kV) | 65 | 95 | 110 | ||
50% Impulse | 150 | 190 | 210 | ||
Withstand Voltage | One minute power- frequency | Dry (kV) | 90 | 110 | 125 |
Wet (kV) | 60 | 90 | 100 | ||
impulse (kV) | 140 | 180 | 200 | ||
Radio- Influence- Voltage Data | Test Voltage to Ground (kV) | 22 | 30 | 44 | |
Maximum RIV at 1000kHz (uV) | 12000 | 16000 | 25000 | ||
Cantilever Failing Load(kN) | 11 | 11 | 11 | ||
Weight (kg) | 5 | 10 | 13 | ||

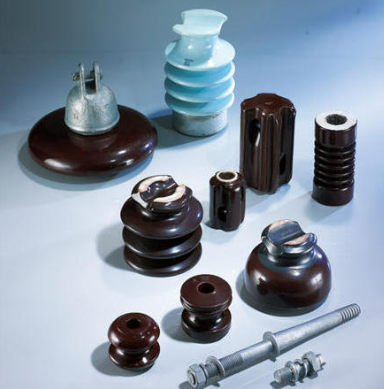

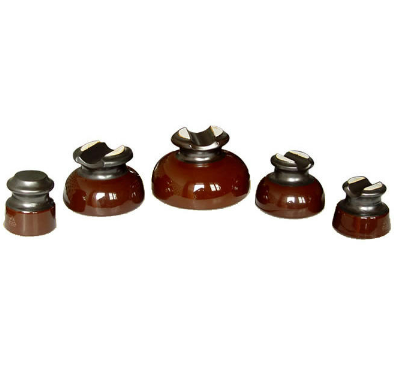

15kv Pin Type Porcelain Insulator for Overhead Line （BS)
Porcelain insulators,also named ceramic Insulators are made from clay, quartz or alumina and feldspar, and are covered with a smooth glaze to shed water. Insulators made from porcelain rich in alumina are used where high mechanical strength is a criterion. Porcelain has a dielectric strength of about 4–10 kV/mm.It also has perfect dielectric performance.Porcelain insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Insulators are a special insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telegraph poles. Slowly, a lot of disk-shaped insulators were hung on one end of the high-voltage wire connection tower. It was used to increase the creepage distance. It was usually made of glass or ceramics and was called an insulator. Insulators should not fail due to various electromechanical stresses caused by changes in the environment and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.
The main function of insulators is to achieve electrical insulation and mechanical fixation, for which various electrical and mechanical performance requirements are specified. If under the specified operating voltage, lightning overvoltage and internal overvoltage, no breakdown or flashover along the surface; under the specified long-term and short-term mechanical load, no damage and damage; under the specified machine , After long-term operation under electrical load and various environmental conditions, no obvious deterioration will occur; the fittings of insulators will not produce obvious corona discharge under the operating voltage, so as not to interfere with radio or television reception. Because insulators are widely used devices, their connection fittings are also required to be interchangeable. In addition, the technical standards of insulators also require various electrical, mechanical, physical, and environmental conditions to test the performance and quality of the insulators according to different types and conditions of use.
Specifications
Pin Porcelain Insulators (ANSI BS)
1.voltage:23-69kv
2.creepage distance:330-865mm
3.weight:3.7-13.5kg
4.good use-best price
Pin Porcelain Insulators (ANSI BS series)
Summary
1) Material:porcelain
2) Class BS: P-11-Y P-15-Y P-20-Y P-33-Y
3)pin type insualators for high voltage
4)safe usage
5)various desigins available
6)fast shipping and great service
7)good quality and reasonable price
Main dimensions and standard particulars | ||||||
Fig | 1 | 1 | 2 | 3 | ||
Class BS | P-11-Y | P-15-Y | P-20-Y | P-33-Y | ||
Main Dimensions (mm) | H | 133 | 137 | 195 | 244 | |
h | 48 | 48 | 52.63 | 52.63 | ||
D | 140 | 152 | 230 | 279 | ||
d | 18.29 | 18.29 | 27.78 | 27.78 | ||
R1 | 13 | 13 | 19 | 19 | ||
R2 | 9.5 | 12.7 | 14.3 | 13 | ||
Nominal Voltage (kV) | 11 | 15 | 22 | 33 | ||
Creepage Distance (mm) | 240 | 298 | 432 | 630 | ||
Minimum Flashover Voltage | Power-frequency | Dry (kV) | 75 | 80 | 100 | 135 |
Wet (kV) | 45 | 55 | 60 | 85 | ||
50% Impulse | Positive (kV) | 100 | 130 | 160 | 185 | |
Negative (kV) | 110 | 175 | 205 | |||
Withstand Voltage | One minute power- frequency | Dry (kV) | 65 | 70 | 90 | 110 |
Wet (kV) | 40 | 50 | 55 | 75 | ||
mpulse (kV) | 110 | 150 | ||||
Radio- Influence- Voltage Data | Test Voltage to Ground (kV) | 15 | 15 | 22 | 30 | |
Maximum RIV at 1000kHz (uV) | 8000 | 8000 | 12000 | 16000 | ||
Power-frequency puncture Voltage(kV) | 135 | 135 | 145 | 185 | ||
Cantilever Failing Load(kN) | 11 | 11 | 11 | 13 | ||
Weight (kg) | 1.8 | - | - | 11.5 | ||

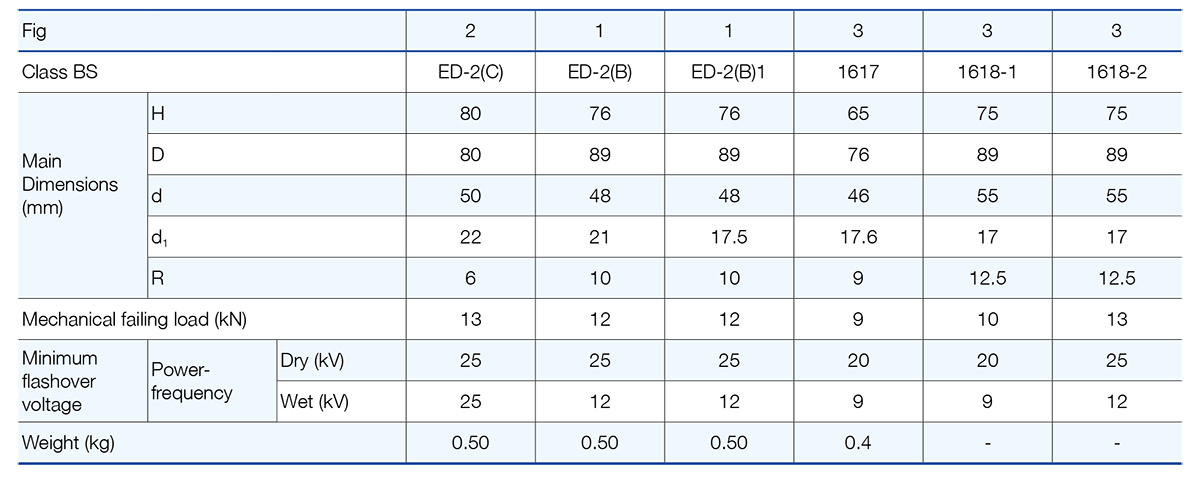

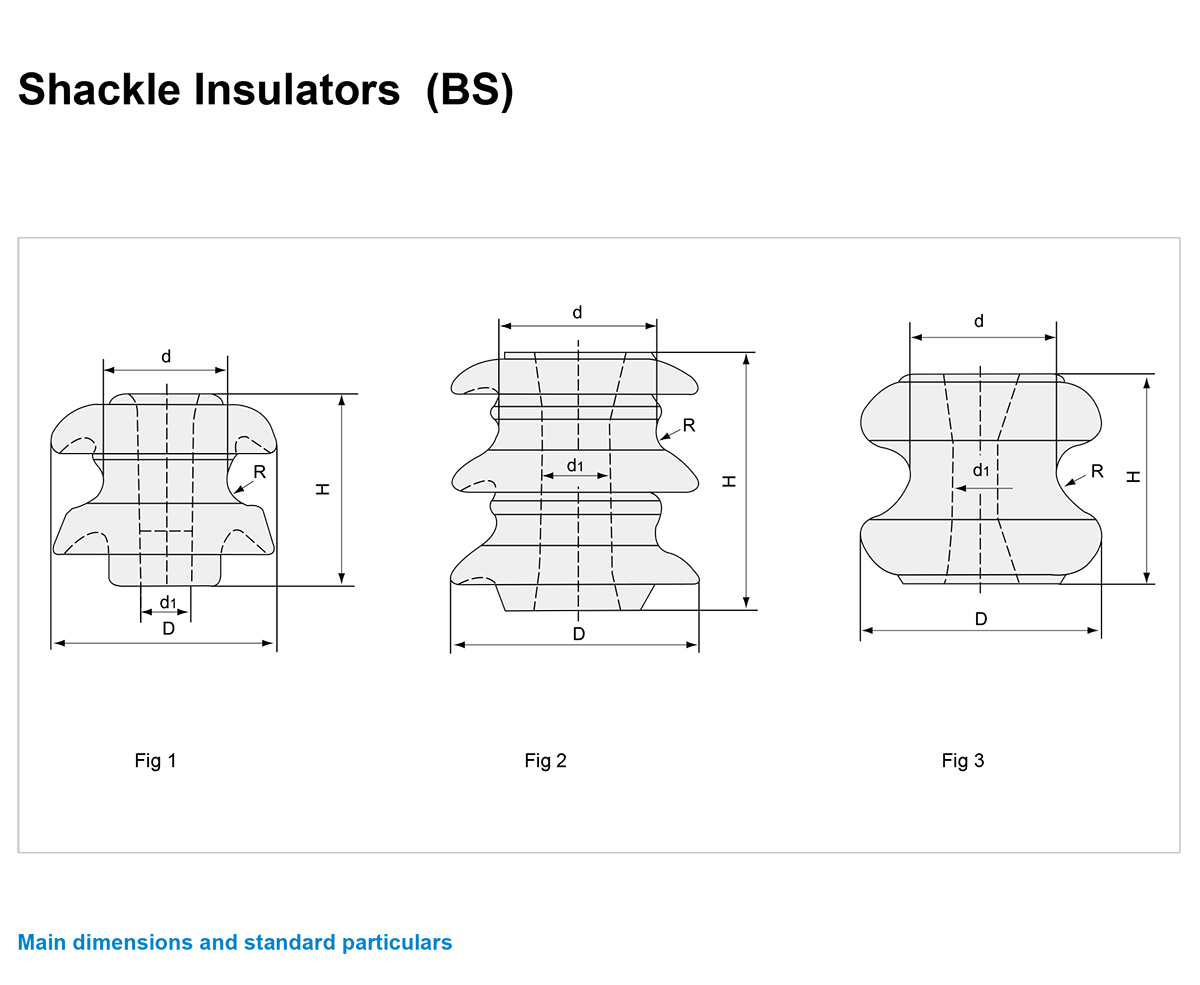

24kv Shackle Type Porcelain Insulator for Overhead Line
Porcelain insulators,also named ceramic Insulators are made from clay, quartz or alumina and feldspar, and are covered with a smooth glaze to shed water. Insulators made from porcelain rich in alumina are used where high mechanical strength is a criterion. Porcelain has a dielectric strength of about 4–10 kV/mm.It also has perfect dielectric performance.Porcelain insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Insulators play a vital role in controlling insulation and are particularly important in overhead transmission lines. Initially, they were only used on telegraph poles, but over time, numerous disk-shaped insulators were installed on one end of the high-voltage wire connection tower to enhance creepage distance. These insulators are often made of glass or ceramics and are known as insulators. To be effective, insulators must withstand various electromechanical stresses resulting from environmental changes and electrical load conditions. Otherwise, they will fail and negatively impact the lifespan and use of the entire line.
The main function of insulators is to achieve electrical insulation and mechanical fixation, for which various electrical and mechanical performance requirements are specified. If under the specified operating voltage, lightning overvoltage and internal overvoltage, no breakdown or flashover along the surface; under the specified long-term and short-term mechanical load, no damage and damage; under the specified machine , After long-term operation under electrical load and various environmental conditions, no obvious deterioration will occur; the fittings of insulators will not produce obvious corona discharge under the operating voltage, so as not to interfere with radio or television reception. Because insulators are widely used devices, their connection fittings are also required to be interchangeable. In addition, the technical standards of insulators also require various electrical, mechanical, physical, and environmental conditions to test the performance and quality of the insulators according to different types and conditions of use.
Summary
1) Material:porcelain
2) Class : ED-2(C)
3)pin type insualators for high voltage
4)safe usage
5)various desigins available
6)fast shipping and great service
7)good quality and reasonable price
11KV Composite Pin Silicone Rubber Insulator for support wire
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Pin Insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 36 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 36kV.
Standards: IEC 61952:2008，ANSI,etc
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Rated voltage（KV） | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |
12kv High Voltage Overhead Transmission Line Composite Post Insulator
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Post Insulator
General
1.Ratings : up to 252kV.
2.Application : for lines supporting and insulation of power transmission & distribution system.
3.Standard: IEC 62217:2005,IEC 62231:2006,ANSI,etc.
Features:
Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Working Condition
1.Ambient air temperature: -50℃ ~+50℃
3.Altitude : <=3000m
3.Frequency:<=100Hz
Main Technical Parameter | |||||||
Model | Rated voltage (KV) | Specified mechanical load(kN) | Spacing H (mm) | Arcing distance (>mm) | Minimum creepage distance (>=mm) | Lightening impulse residual voltage under nominal discharge current (<=KVp) | Wet power frequency Withstand voltage(>=kVr.m.s.) |
FZSW-12/6 | 12 | 6 | 215 | 210 | 450 | 100 | 45 |
FZSW-24/8 | 24 | 8 | 305 | 265 | 780 | 130 | 60 |
FZSW-36/6 | 36 | 6 | 445 | 435 | 1015 | 190 | 90 |
FZSW-72.5/10 | 72.5 | 10 | 770 | 675 | 1820 | 350 | 150 |
FZSW-126/8 | 126 | 8 | 1220 | 1125 | 3150 | 500 | 230 |
FZSW-245/4 | 252 | 4 | 2300 | 2200 | 6300 | 1050 | 450 |
12kv Line Composite Post Insulator for Support Cable
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Post Insulator
General
1.Ratings : up to 252kV.
2.Application : for lines supporting and insulation of power transmission & distribution system.
3.Standard: IEC 62217:2005,IEC 62231:2006,ANSI,etc.
Features:
Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Working Condition
1.Ambient air temperature: -50℃ ~+50℃
3.Altitude : <=3000m
3.Frequency:<=100Hz
Main Technical Parameter | |||||||
Model | Rated voltage (KV) | Specified mechanical load(kN) | Spacing H (mm) | Arcing distance (>mm) | Minimum creepage distance (>=mm) | Lightening impulse residual voltage under nominal discharge current (<=KVp) | Wet power frequency Withstand voltage(>=kVr.m.s.) |
FZSW-12/6 | 12 | 6 | 215 | 210 | 450 | 100 | 45 |
FZSW-24/8 | 24 | 8 | 305 | 265 | 780 | 130 | 60 |
FZSW-36/6 | 36 | 6 | 445 | 435 | 1015 | 190 | 90 |
FZSW-72.5/10 | 72.5 | 10 | 770 | 675 | 1820 | 350 | 150 |
FZSW-126/8 | 126 | 8 | 1220 | 1125 | 3150 | 500 | 230 |
FZSW-245/4 | 252 | 4 | 2300 | 2200 | 6300 | 1050 | 450 |
15kv Composite Long Rod Insulator Overhead Transmission Line
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Long rod suspension insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) | Factory model |
CS70XZ-100/465 | 70 | 360 | 215 | 480 | 100 | 50 | FXBW-15/70 |
CS120XZ-100/465 | 120 | 400 | 215 | 480 | 100 | 50 | FXBW-15/120 |
CS70XZ-120/450 | 70 | 413 | 275 | 544 | 120 | 60 | FXBW-17.5/70 |
CS120XZ-120/450 | 120 | 513 | 275 | 544 | 120 | 60 | FXBW-17.5/120 |
CS70XZ-125/480 | 70 | 461 | 320 | 550 | 125 | 70 | FXBW-24/70(20mm/ |
CS120XZ-125/480 | 120 | 490 | 320 | 550 | 125 | 70 | FXBW- |
CS70XZ-145/745 | 70 | 500 | 355 | 750 | 145 | 80 | FXBW-24/70(31mm/ |
CS120XZ-145/745 | 120 | 529 | 355 | 750 | 145 | 80 | FXBW- |
CS70XZ-185/900 | 70 | 541 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS120XZ-185/900 | 120 | 570 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS70XZ-230/1120 | 70 | 610 | 455 | 1250 | 230 | 105 | FXBW-36/70(31mm/ |
CS120XZ-230/1120 | 120 | 650 | 455 | 1250 | 230 | 105 | FXBW- |
CS70XZ-325/1815 | 70 | 860 | 710 | 2210 | 325 | 150 | FXBW-72.5/70 |
CS120XZ-325/1815 | 120 | 900 | 710 | 2210 | 325 | 150 | FXBW-72.5/120 |
CS70XZ-550/3150 | 70 | 1220 | 1055 | 3400 | 550 | 230 | FXBW-126/70 |
CS120XZ-550/3150 | 120 | 1255 | 1055 | 3400 | 550 | 230 | FXBW-126/120 |
CS120XZ-650/3625 | 120 | 1475 | 1270 | 4100 | 650 | 275 | FXBW-145/70 |
CS210XZ-650/3625 | 160 | 1654 | 1485 | 4495 | 650 | 250 | FXBW-145/160 |
CS120XZ-1050/6300 | 210 | 2550 | 2300 | 8500 | 1050 | 460 | FXBW-245/210 |
CS160XZ-1050/6300 | 160 | 2430 | 2200 | 7000 | 1050 | 400 | FXBW-252/160 |
CS120XZ-1425/9075 | 120 | 3180 | 2780 | 9880 | 1425 | 570 | FXBW-363/120 |
CS210XZ-1425/9075 | 210 | 3440 | 3000 | 10450 | 1425 | 570 | FXBW-363/210 |
CS120XZ-2250/13750 | 120 | 4450 | 4050 | 14100 | 2250 | 740 | FXBW-550/120 |
CS210XZ-2250/13750 | 210 | 4450 | 4050 | 13850 | 2250 | 740 | FXBW-550/210 |
Pin Silicone Rubber Composite Insulator for Distribution Line
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Pin Insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 36 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 36kV.
Standards: IEC 61952:2008，ANSI,etc
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Rated voltage（KV） | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |
24kv High Voltage Polymer Insulator for Substation
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Long rod suspension insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) | Factory model |
CS70XZ-100/465 | 70 | 360 | 215 | 480 | 100 | 50 | FXBW-15/70 |
CS120XZ-100/465 | 120 | 400 | 215 | 480 | 100 | 50 | FXBW-15/120 |
CS70XZ-120/450 | 70 | 413 | 275 | 544 | 120 | 60 | FXBW-17.5/70 |
CS120XZ-120/450 | 120 | 513 | 275 | 544 | 120 | 60 | FXBW-17.5/120 |
CS70XZ-125/480 | 70 | 461 | 320 | 550 | 125 | 70 | FXBW-24/70(20mm/ |
CS120XZ-125/480 | 120 | 490 | 320 | 550 | 125 | 70 | FXBW- |
CS70XZ-145/745 | 70 | 500 | 355 | 750 | 145 | 80 | FXBW-24/70(31mm/ |
CS120XZ-145/745 | 120 | 529 | 355 | 750 | 145 | 80 | FXBW- |
CS70XZ-185/900 | 70 | 541 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS120XZ-185/900 | 120 | 570 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS70XZ-230/1120 | 70 | 610 | 455 | 1250 | 230 | 105 | FXBW-36/70(31mm/ |
CS120XZ-230/1120 | 120 | 650 | 455 | 1250 | 230 | 105 | FXBW- |
CS70XZ-325/1815 | 70 | 860 | 710 | 2210 | 325 | 150 | FXBW-72.5/70 |
CS120XZ-325/1815 | 120 | 900 | 710 | 2210 | 325 | 150 | FXBW-72.5/120 |
CS70XZ-550/3150 | 70 | 1220 | 1055 | 3400 | 550 | 230 | FXBW-126/70 |
CS120XZ-550/3150 | 120 | 1255 | 1055 | 3400 | 550 | 230 | FXBW-126/120 |
CS120XZ-650/3625 | 120 | 1475 | 1270 | 4100 | 650 | 275 | FXBW-145/70 |
CS210XZ-650/3625 | 160 | 1654 | 1485 | 4495 | 650 | 250 | FXBW-145/160 |
CS120XZ-1050/6300 | 210 | 2550 | 2300 | 8500 | 1050 | 460 | FXBW-245/210 |
CS160XZ-1050/6300 | 160 | 2430 | 2200 | 7000 | 1050 | 400 | FXBW-252/160 |
CS120XZ-1425/9075 | 120 | 3180 | 2780 | 9880 | 1425 | 570 | FXBW-363/120 |
CS210XZ-1425/9075 | 210 | 3440 | 3000 | 10450 | 1425 | 570 | FXBW-363/210 |
CS120XZ-2250/13750 | 120 | 4450 | 4050 | 14100 | 2250 | 740 | FXBW-550/120 |
CS210XZ-2250/13750 | 210 | 4450 | 4050 | 13850 | 2250 | 740 | FXBW-550/210 |
126KV High Voltage Long Rod Composite Insulators
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Long rod suspension insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) | Factory model |
CS70XZ-100/465 | 70 | 360 | 215 | 480 | 100 | 50 | FXBW-15/70 |
CS120XZ-100/465 | 120 | 400 | 215 | 480 | 100 | 50 | FXBW-15/120 |
CS70XZ-120/450 | 70 | 413 | 275 | 544 | 120 | 60 | FXBW-17.5/70 |
CS120XZ-120/450 | 120 | 513 | 275 | 544 | 120 | 60 | FXBW-17.5/120 |
CS70XZ-125/480 | 70 | 461 | 320 | 550 | 125 | 70 | FXBW-24/70(20mm/ |
CS120XZ-125/480 | 120 | 490 | 320 | 550 | 125 | 70 | FXBW- |
CS70XZ-145/745 | 70 | 500 | 355 | 750 | 145 | 80 | FXBW-24/70(31mm/ |
CS120XZ-145/745 | 120 | 529 | 355 | 750 | 145 | 80 | FXBW- |
CS70XZ-185/900 | 70 | 541 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS120XZ-185/900 | 120 | 570 | 400 | 900 | 185 | 95 | FXBW-36/70 |
CS70XZ-230/1120 | 70 | 610 | 455 | 1250 | 230 | 105 | FXBW-36/70(31mm/ |
CS120XZ-230/1120 | 120 | 650 | 455 | 1250 | 230 | 105 | FXBW- |
CS70XZ-325/1815 | 70 | 860 | 710 | 2210 | 325 | 150 | FXBW-72.5/70 |
CS120XZ-325/1815 | 120 | 900 | 710 | 2210 | 325 | 150 | FXBW-72.5/120 |
CS70XZ-550/3150 | 70 | 1220 | 1055 | 3400 | 550 | 230 | FXBW-126/70 |
CS120XZ-550/3150 | 120 | 1255 | 1055 | 3400 | 550 | 230 | FXBW-126/120 |
CS120XZ-650/3625 | 120 | 1475 | 1270 | 4100 | 650 | 275 | FXBW-145/70 |
CS210XZ-650/3625 | 160 | 1654 | 1485 | 4495 | 650 | 250 | FXBW-145/160 |
CS120XZ-1050/6300 | 210 | 2550 | 2300 | 8500 | 1050 | 460 | FXBW-245/210 |
CS160XZ-1050/6300 | 160 | 2430 | 2200 | 7000 | 1050 | 400 | FXBW-252/160 |
CS120XZ-1425/9075 | 120 | 3180 | 2780 | 9880 | 1425 | 570 | FXBW-363/120 |
CS210XZ-1425/9075 | 210 | 3440 | 3000 | 10450 | 1425 | 570 | FXBW-363/210 |
CS120XZ-2250/13750 | 120 | 4450 | 4050 | 14100 | 2250 | 740 | FXBW-550/120 |
CS210XZ-2250/13750 | 210 | 4450 | 4050 | 13850 | 2250 | 740 | FXBW-550/210 |
Pin Composite Insulator for Overhead Transmission Line
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite Pin Insulator:
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake
Long rod suspension insulator ?Composite insulators for high voltage overhead power transmission line application
For rated voltage up to 36 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 36kV.
Standards: IEC 61952:2008，ANSI,etc
Composite Insulator for AC Power Distribution System
Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.
Product range:
Long rod Composite insulators up to 500kV.
Pin Composite insulator up to 36kV.
Post Composite insulator up to 252kV.
Line post Composite insulator up to 36kV.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | |||||||
Model | Rated voltage（KV） | Specified Mechanical load(KN) | Spacing H (mm) | Arcing distance (>mm)) | Minimum Creepage distance | Lightning impulse Withstand voltage (>=KVp) | Wet power frequency withstand voltage (>=KVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |
36kv Composite Suspension Insulator for Electrified Railway
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite insulators for electrified railways
Composite insulators for electrified railways have compact structure, strong integrity, good anti-fouling ability, light weight, small size, good internal and external insulation performance, high mechanical strength, and no need for regular cleaning. They are mainly used for high-speed railway and urban light rail transportation construction.
Composite insulators for electrified railways also named railway insulators, electrified railway catenary parts, polymer insulators for electrified railways, railway polymer insulators.
The support arm is made of stainless steel material or Hot dip galvanized cast steel, which has better anti-corrosion performance. It solves the corrosion of products under various climatic conditions such as humidity and acid rain. It can greatly extend the life of the product and provide reliable equipment for the implementation of compact circuit construction.
Electrified railways Composite insulators is suitable for electrified railway tunnels with complex operating conditions, which can effectively prevent pollution flashover accidents and reduce the workload of cleaning and maintenance. Due to its small size, when the tunnel clearance is small, it is a product that porcelain and glass insulators cannot replace.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | ||||||||||
Model | Structure height H（mm） | Nominal creepage distance L(mm) | Design creepage distance L(mm) | Nominal dry arc distance （mm） | Design dry arc distance （mm） | Rated mechanical tensile failure load（KN） | Standard lightning impulse withstand voltage peak（KV） | Public frequency dry withstand voltage（KV） | Public frequency wet withstand voltage（KV） | Artificial pollution public frequency withstand voltage（KV） |
FQX-25/100(120)QT | 700±20 | 1200 | 1300 | 500 | 511 | 100(120) | 270 | 160 | 130 | 36 |
FQX-25/100(120)QH | 700±20 | |||||||||
FQX-25/100(120)HH | 700±20 | |||||||||
FQD-25/100(120)HY | 734±20 | |||||||||
FQX-25/160QT | 750±20 | 512 | 160 | 31.5 | ||||||
FQX-25/160QH | 750±20 | |||||||||
FQX-25/160HH | 750±20 | |||||||||
33kV 100kN Electrified Railways Composite Insulators
Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Composite insulators for electrified railways
Composite insulators for electrified railways have compact structure, strong integrity, good anti-fouling ability, light weight, small size, good internal and external insulation performance, high mechanical strength, and no need for regular cleaning. They are mainly used for high-speed railway and urban light rail transportation construction.
Composite insulators for electrified railways also named railway insulators, electrified railway catenary parts, polymer insulators for electrified railways, railway polymer insulators.
The support arm is made of stainless steel material or Hot dip galvanized cast steel, which has better anti-corrosion performance. It solves the corrosion of products under various climatic conditions such as humidity and acid rain. It can greatly extend the life of the product and provide reliable equipment for the implementation of compact circuit construction.
Electrified railways Composite insulators is suitable for electrified railway tunnels with complex operating conditions, which can effectively prevent pollution flashover accidents and reduce the workload of cleaning and maintenance. Due to its small size, when the tunnel clearance is small, it is a product that porcelain and glass insulators cannot replace.
Technology characteristics:
1)The silicone rubber housing taken shape by whole injection has good hydrophobicity, drophobicity migration and soil resistance, as well as excellent electrical insulation roperties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
2)The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stress corrosion ∾id attack, as well as fine damping action, high tensile strength( >1200Mpa ) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical strength of insulators.
3)End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper , The insulators with this crimping technique have high mechanical strength and small dispersion.
4)The connection location between end fittings & rods is fused with sheds housing by the overall high tempera- ture vulcanized silicone rubber injection molding as it could minimize the interface.
5)The internal radial multi-seal structure effectively guarantees a long-term reliability of seal around the connection between end fittings & rods.
Note:
1 Applicable stardand:IEC,ANSI,GB and other international standard
2 Normal colour of the composite insulator:red,gray and white.
3 Special design according customer's requirement.
Main Technical Parameter | ||||||||||
Model | Structure height H（mm） | Nominal creepage distance L(mm) | Design creepage distance L(mm) | Nominal dry arc distance （mm） | Design dry arc distance （mm） | Rated mechanical tensile failure load（KN） | Standard lightning impulse withstand voltage peak（KV） | Public frequency dry withstand voltage（KV） | Public frequency wet withstand voltage（KV） | Artificial pollution public frequency withstand voltage（KV） |
FQX-25/100(120)QT | 700±20 | 1200 | 1300 | 500 | 511 | 100(120) | 270 | 160 | 130 | 36 |
FQX-25/100(120)QH | ||||||||||
FQX-25/100(120)HH | ||||||||||
FQD-25/100(120)HY | 734±20 | |||||||||
FQX-25/160QT | 750±20 | 512 | 160 | 31.5 | ||||||
FQX-25/160QH | ||||||||||
FQX-25/160HH | ||||||||||
33kv Spool Type Porcelain Insulator for Station Post（BS)
Porcelain insulators,also named ceramic Insulators are made from clay, quartz or alumina and feldspar, and are covered with a smooth glaze to shed water. Insulators made from porcelain rich in alumina are used where high mechanical strength is a criterion. Porcelain has a dielectric strength of about 4–10 kV/mm.It also has perfect dielectric performance.Porcelain insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Insulators are a special insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telegraph poles. Slowly, a lot of disk-shaped insulators were hung on one end of the high-voltage wire connection tower. It was used to increase the creepage distance. It was usually made of glass or ceramics and was called an insulator. Insulators should not fail due to various electromechanical stresses caused by changes in the environment and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.
Insulators serve two primary purposes: electrical insulation and mechanical fixation. In order to meet these requirements, a number of electrical and mechanical performance standards are put in place. Provided that lightning and internal voltage are within the specified limits, no breakdown or flashover should occur along the surface. Similarly, there should be no damage or harm under the specified mechanical load, both short- and long-term. Furthermore, the insulators should not display any obvious signs of wear or deterioration after prolonged use under electric load and in different environments. The insulator fittings should also not produce any corona discharge that could interfere with radio or TV reception. Since insulators are widely used, it's important that their fittings are interchangeable. To ensure quality performance, various electrical, mechanical, physical and environmental tests are conducted on insulators according to type and usage conditions.
Summary
1) Material:porcelain
2) Class BS: Pw-11-Y Pw-22-Y Pw-33-Y
3)pin type insualators for high voltage
4)safe usage
5)various desigins available
6)fast shipping and great service
7)good quality and reasonable price
Main dimensions and standard particulars | |||||
Fig | 1 | 2 | 3 | ||
Class BS | Pw-11-Y | Pw-22-Y | Pw-33-Y | ||
Main Dimensions (mm) | H | 185 | 255 | 320 | |
h | 32.65 | 32.65 | 32.65 | ||
D | 170 | 205 | 240 | ||
d | 76 | 76 | 76 | ||
d1 | 27.78 | 27.78 | 27.78 | ||
R1 | 16 | 16 | 16 | ||
R2 | 16 | 16 | 16 | ||
Nominal Voltage (kV) | 15 | 22 | 33 | ||
Creepage Distance (mm) | 432 | 673 | 851 | ||
Minimum Flashover Voltage | Power-frequency | Dry (kV) | 100 | 125 | 140 |
Wet (kV) | 65 | 95 | 110 | ||
50% Impulse | 150 | 190 | 210 | ||
Withstand Voltage | One minute power- frequency | Dry (kV) | 90 | 110 | 125 |
Wet (kV) | 60 | 90 | 100 | ||
impulse (kV) | 140 | 180 | 200 | ||
Radio- Influence- Voltage Data | Test Voltage to Ground (kV) | 22 | 30 | 44 | |
Maximum RIV at 1000kHz (uV) | 12000 | 16000 | 25000 | ||
Cantilever Failing Load(kN) | 11 | 11 | 11 | ||
Weight (kg) | 5 | 10 | 13 | ||
15kv Pin Type Porcelain Insulator for Overhead Line （BS)
Porcelain insulators,also named ceramic Insulators are made from clay, quartz or alumina and feldspar, and are covered with a smooth glaze to shed water. Insulators made from porcelain rich in alumina are used where high mechanical strength is a criterion. Porcelain has a dielectric strength of about 4–10 kV/mm.It also has perfect dielectric performance.Porcelain insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Insulators are a special insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telegraph poles. Slowly, a lot of disk-shaped insulators were hung on one end of the high-voltage wire connection tower. It was used to increase the creepage distance. It was usually made of glass or ceramics and was called an insulator. Insulators should not fail due to various electromechanical stresses caused by changes in the environment and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.
The main function of insulators is to achieve electrical insulation and mechanical fixation, for which various electrical and mechanical performance requirements are specified. If under the specified operating voltage, lightning overvoltage and internal overvoltage, no breakdown or flashover along the surface; under the specified long-term and short-term mechanical load, no damage and damage; under the specified machine , After long-term operation under electrical load and various environmental conditions, no obvious deterioration will occur; the fittings of insulators will not produce obvious corona discharge under the operating voltage, so as not to interfere with radio or television reception. Because insulators are widely used devices, their connection fittings are also required to be interchangeable. In addition, the technical standards of insulators also require various electrical, mechanical, physical, and environmental conditions to test the performance and quality of the insulators according to different types and conditions of use.
Specifications
Pin Porcelain Insulators (ANSI BS)
1.voltage:23-69kv
2.creepage distance:330-865mm
3.weight:3.7-13.5kg
4.good use-best price
Pin Porcelain Insulators (ANSI BS series)
Summary
1) Material:porcelain
2) Class BS: P-11-Y P-15-Y P-20-Y P-33-Y
3)pin type insualators for high voltage
4)safe usage
5)various desigins available
6)fast shipping and great service
7)good quality and reasonable price
Main dimensions and standard particulars | ||||||
Fig | 1 | 1 | 2 | 3 | ||
Class BS | P-11-Y | P-15-Y | P-20-Y | P-33-Y | ||
Main Dimensions (mm) | H | 133 | 137 | 195 | 244 | |
h | 48 | 48 | 52.63 | 52.63 | ||
D | 140 | 152 | 230 | 279 | ||
d | 18.29 | 18.29 | 27.78 | 27.78 | ||
R1 | 13 | 13 | 19 | 19 | ||
R2 | 9.5 | 12.7 | 14.3 | 13 | ||
Nominal Voltage (kV) | 11 | 15 | 22 | 33 | ||
Creepage Distance (mm) | 240 | 298 | 432 | 630 | ||
Minimum Flashover Voltage | Power-frequency | Dry (kV) | 75 | 80 | 100 | 135 |
Wet (kV) | 45 | 55 | 60 | 85 | ||
50% Impulse | Positive (kV) | 100 | 130 | 160 | 185 | |
Negative (kV) | 110 | 175 | 205 | |||
Withstand Voltage | One minute power- frequency | Dry (kV) | 65 | 70 | 90 | 110 |
Wet (kV) | 40 | 50 | 55 | 75 | ||
mpulse (kV) | 110 | 150 | ||||
Radio- Influence- Voltage Data | Test Voltage to Ground (kV) | 15 | 15 | 22 | 30 | |
Maximum RIV at 1000kHz (uV) | 8000 | 8000 | 12000 | 16000 | ||
Power-frequency puncture Voltage(kV) | 135 | 135 | 145 | 185 | ||
Cantilever Failing Load(kN) | 11 | 11 | 11 | 13 | ||
Weight (kg) | 1.8 | - | - | 11.5 | ||
24kv Shackle Type Porcelain Insulator for Overhead Line
Porcelain insulators,also named ceramic Insulators are made from clay, quartz or alumina and feldspar, and are covered with a smooth glaze to shed water. Insulators made from porcelain rich in alumina are used where high mechanical strength is a criterion. Porcelain has a dielectric strength of about 4–10 kV/mm.It also has perfect dielectric performance.Porcelain insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.
Insulators play a vital role in controlling insulation and are particularly important in overhead transmission lines. Initially, they were only used on telegraph poles, but over time, numerous disk-shaped insulators were installed on one end of the high-voltage wire connection tower to enhance creepage distance. These insulators are often made of glass or ceramics and are known as insulators. To be effective, insulators must withstand various electromechanical stresses resulting from environmental changes and electrical load conditions. Otherwise, they will fail and negatively impact the lifespan and use of the entire line.
The main function of insulators is to achieve electrical insulation and mechanical fixation, for which various electrical and mechanical performance requirements are specified. If under the specified operating voltage, lightning overvoltage and internal overvoltage, no breakdown or flashover along the surface; under the specified long-term and short-term mechanical load, no damage and damage; under the specified machine , After long-term operation under electrical load and various environmental conditions, no obvious deterioration will occur; the fittings of insulators will not produce obvious corona discharge under the operating voltage, so as not to interfere with radio or television reception. Because insulators are widely used devices, their connection fittings are also required to be interchangeable. In addition, the technical standards of insulators also require various electrical, mechanical, physical, and environmental conditions to test the performance and quality of the insulators according to different types and conditions of use.
Summary
1) Material:porcelain
2) Class : ED-2(C)
3)pin type insualators for high voltage
4)safe usage
5)various desigins available
6)fast shipping and great service
7)good quality and reasonable price
